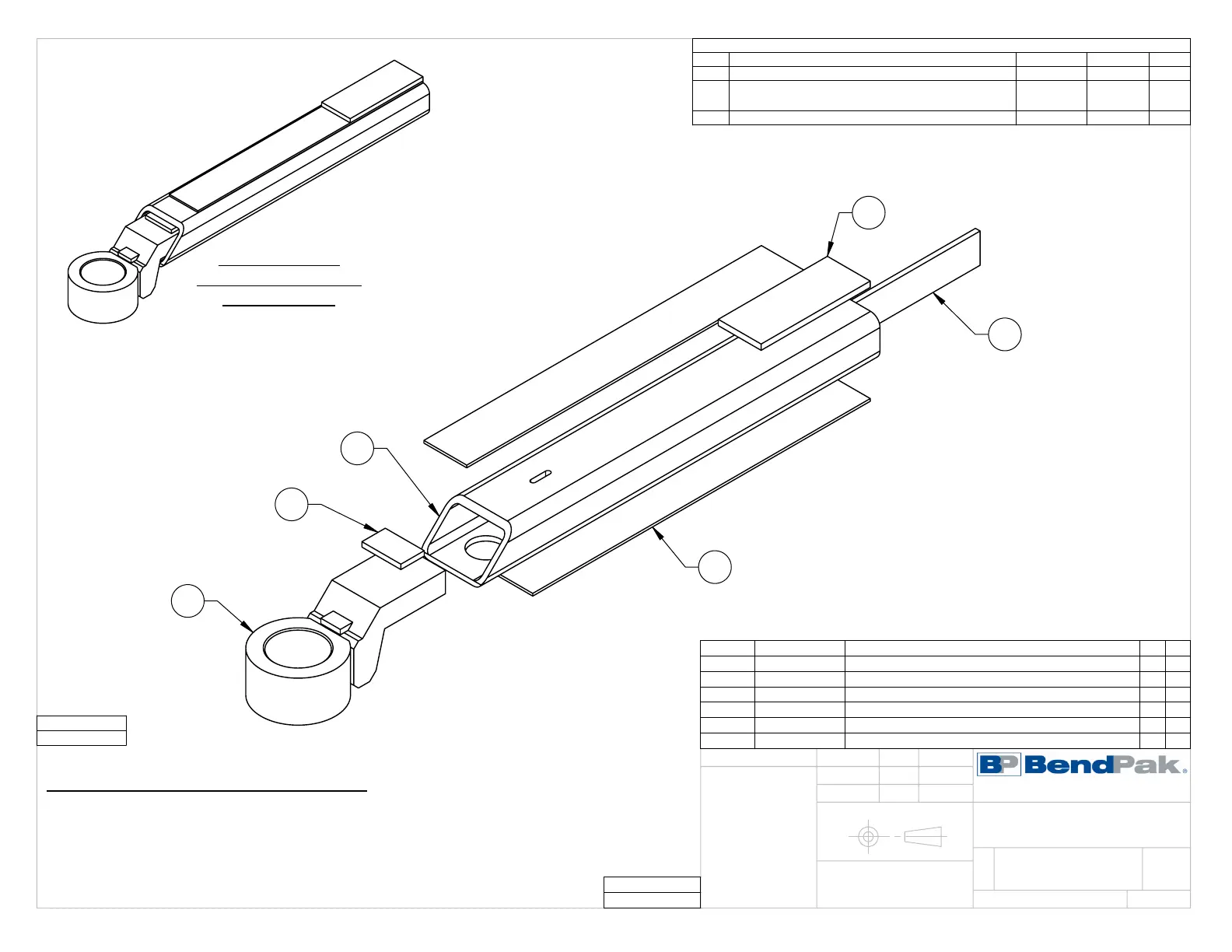

ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
2
4
1
3
5
6
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
D
INCREASED LEGNTH, UPDATED BOM REVISION
04/13/2021
TM
01292
E
ADDED (1) 5735821, REMOVED 5735028,
UPDATED BOM REVISION
11/09/2021
OR
01361
F
UPDATED BOM REVISION
05/24/2023
TM
01492
NEXT ASSEMBLY
5216216
WHERE USED
10AP SERIES
ITEM NO
PART NUMBER
DESCRIPTION
QTY
REV
1 5700398
10AP LONG INNER ARM SECTION
1
D
2 5620739
ARM ADAPTOR SUBWELDMENT
1
C
3 5735822
10AP LONG INNER ARM SECTION GUIDE
1
C
4 5735823
10AP INNER ARM SECTION TOP SPACER
1
A
5 5735821
10AP LONG INNER ARM SECTION TOP SPACER
2
D
6 5735838
10AP INNER ARM INTERIOR GUSSET, LONG
1
B
SHEET 1 OF 3
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
F
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
SM
5601512
10AP LONG ARM
WELDMENT, INNER SECTION
04/17/2020
DO NOT SCALE DRAWING
1:4
SCALE:
THIRD ANGLE PROJECTION
OR
05/26/2023
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±0.5
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
REFER TO MODEL FOR ADDITIONAL INFORMATION
1.
BREAK AND DEBURR ALL SHARP EDGES 0.3mm
2.
WELD 5735838 IN PLACE BEFORE 5735821
3.
REMOVE ALL WELD SPLATTER
4.
MASK THREADS BEFORE PAINTING
5.
DIMENSIONS SHOWN ARE AFTER PAINTING
6.
PAINT YELLOW (RAL-1018) 20% GLOSS
7.
NOTE: UNLESS OTHERWISE SPECIFIED.
