BendPak 10AP - 5601752; Sheet1; Drawing View4; Drawing View9

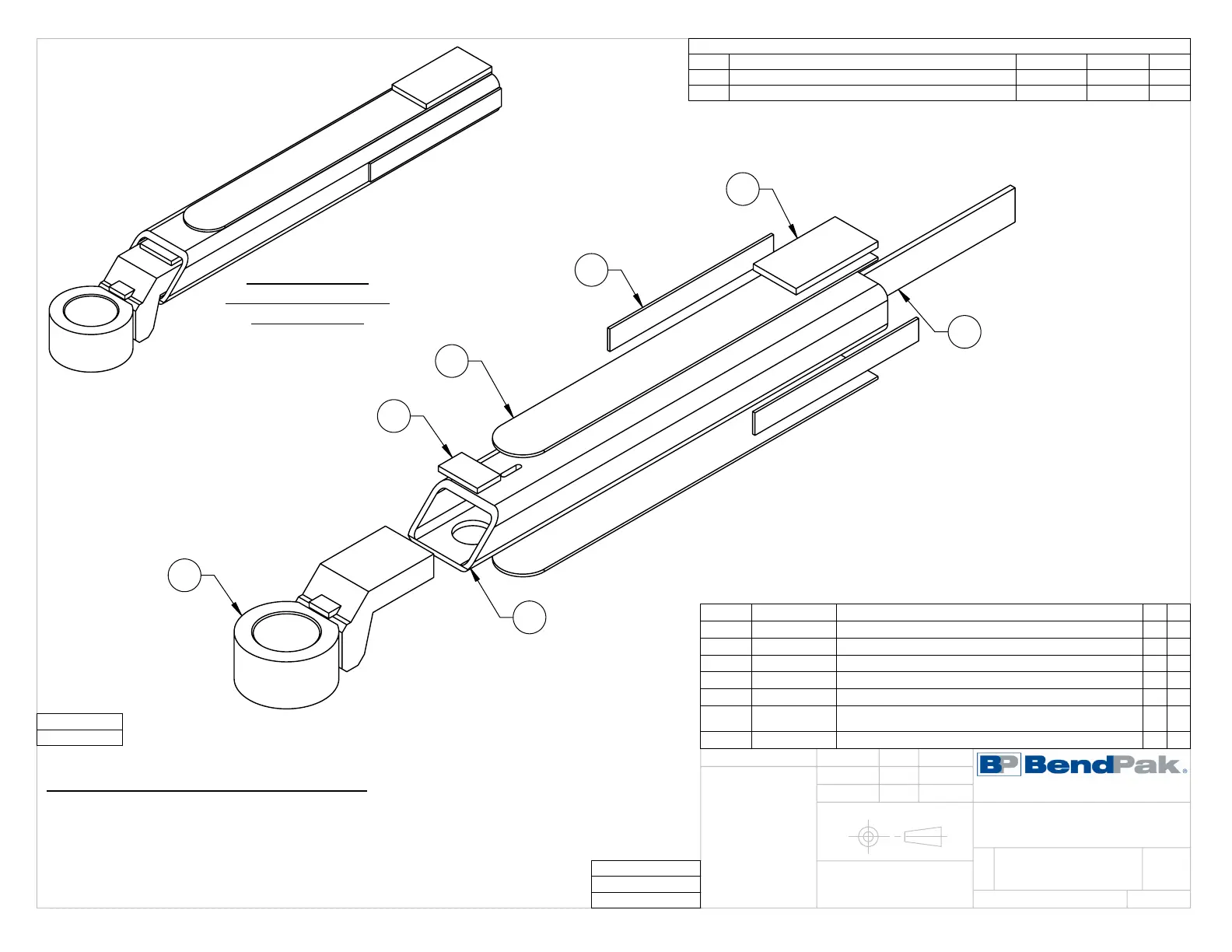

ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
2
4
5
3
1
6
7
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A PRODUCTION RELEASE, DERIVED FROM 5601515 11/19/2021 OR 01361
B UPDATED BOM REVISION 05/24/2023 TM 01492
NEXT ASSEMBLY
5216217
5216218
WHERE USED
10AP SERIES
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5700439 10AP ASYMMETRIC INNER ARM SECTION TUBE 1 A
2 5620739 ARM ADAPTOR SUBWELDMENT 1 C
3 5735902 10AP ASYMMETRIC INNER ARM GUIDE/STOP 1 A
4 5735823 10AP INNER ARM SECTION TOP SPACER 1 A
5 5735904 10AP ASYMMETRIC INNER ARM SIDE SPACER 2 A
6 5735903
10AP ASYMMETRIC ARM INNER SECTION
TOP/BOTTOM SPACER
2 A
7 5735905 10AP ASYMMETRIC INNER ARM INTERIOR GUSSET 1 A
SHEET 1 OF 3
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
B
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
RK
5601752
10AP ASYMMETRIC ARM
WELDMENT, INNER SECTION
11/16/2021
DO NOT SCALE DRAWING
1:3
SCALE:
THIRD ANGLE PROJECTION
OR 05/26/2023
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±0.5
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
BREAK AND DEBURR ALL SHARP EDGES 0.3mm 2.
WELD 5735905 IN PLACE BEFORE 5735903 3.
REMOVE ALL WELD SPLATTER 4.
MASK THREADS BEFORE PAINTING 5.
DIMENSIONS SHOWN ARE AFTER PAINTING 6.
PAINT YELLOW (RAL-1018) 20% GLOSS 7.
NOTE: UNLESS OTHERWISE SPECIFIED.
