NEXT ASSEMBLY
5250343
5250344
ITEM NO
PART NUMBER
DESCRIPTION
QTY
REV
1 5570129
Ø6.4 ID HYDRAULIC HOSE
3226mm*
-
2 5550325
FTG NPL Ø1/4 CRIMP x -04 JIC
1
-
3 5550345
FTG ELB Ø1/4 CRIMP x -04 JIC
1
-
WHERE USED
10AP
10AP-168
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
A
PRODUCTION RELEASE, DERIVED FROM 5570832
03/28/2022
CA
01406
B
WAS 3297 NOW 3276
11/30/2022
CA
01458
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
B
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
CA
5570279

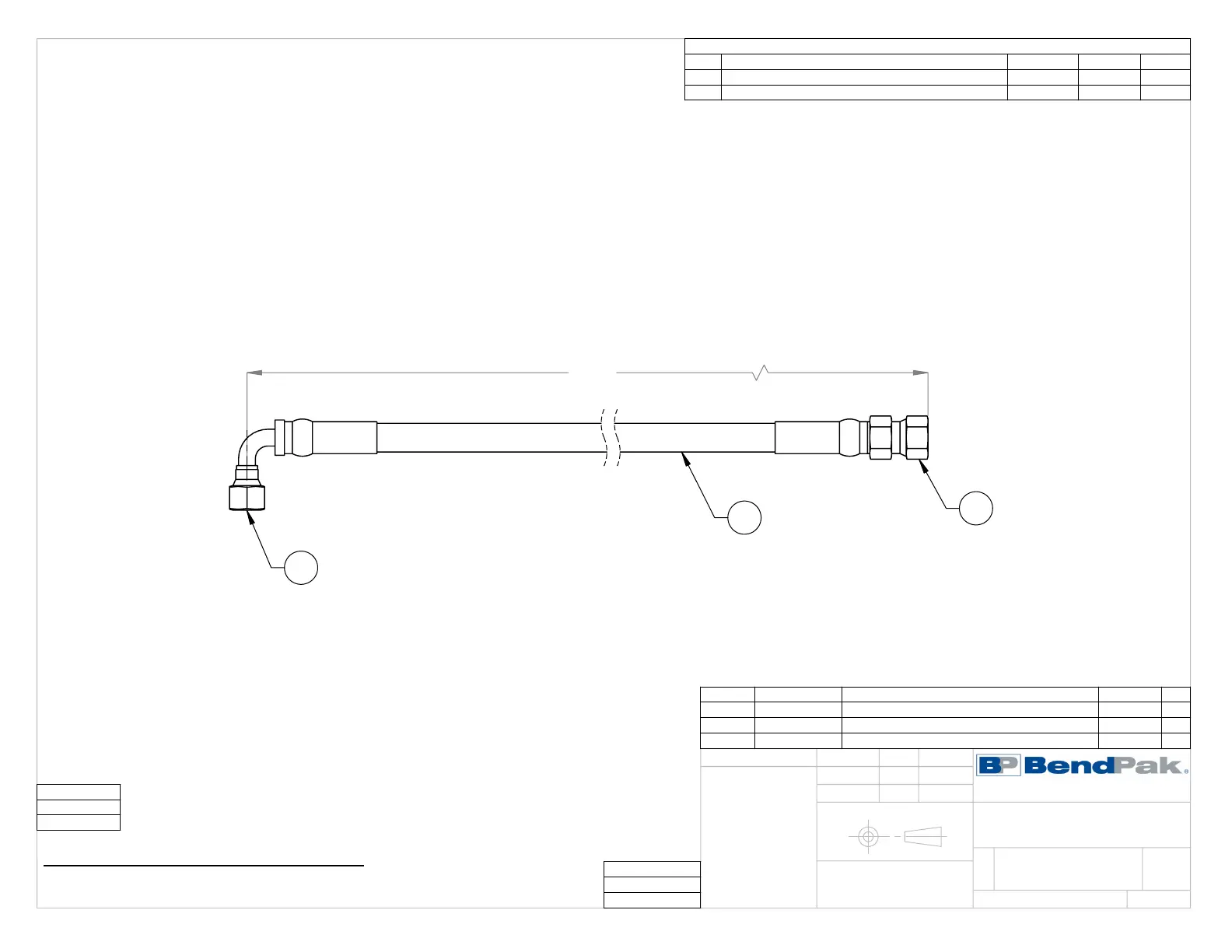

HYDRAULIC HOSE ASSEMBLY
Ø6.35 x 3276mm SB
03/28/2022
DO NOT SCALE DRAWING
1:2
SCALE:
THIRD ANGLE PROJECTION
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±1.0
0.00 = ±0.25
0.000 = ±0.13
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
NOTE: UNLESS OTHERWISE SPECIFIED.
FOR ITEM 1 SPECIFICATIONS REFER TO PART SPECIFICATION FORM
1.
(*)ITEM 1 QTY FOR REFERENCE ONLY
