2217
13 2
NEXT ASSEMBLY
5250343
5250344
ITEM NO
PART NUMBER
DESCRIPTION
QTY
REV
1 5570116
Ø10 ID HYDRAULIC HOSE
2142mm*
-
2 5550337
FTG ELB -06 CRIMP x -06 JIC
1
-
3 5550336
FTG NPL -06 CRIMP x -06 JIC
1
-
WHERE USED
10AP
10AX-161
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
A
PRODUCTION RELEASE, DERIVED FROM 5570017
03/28/2022
CA
01406
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
A
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
CA
5570277

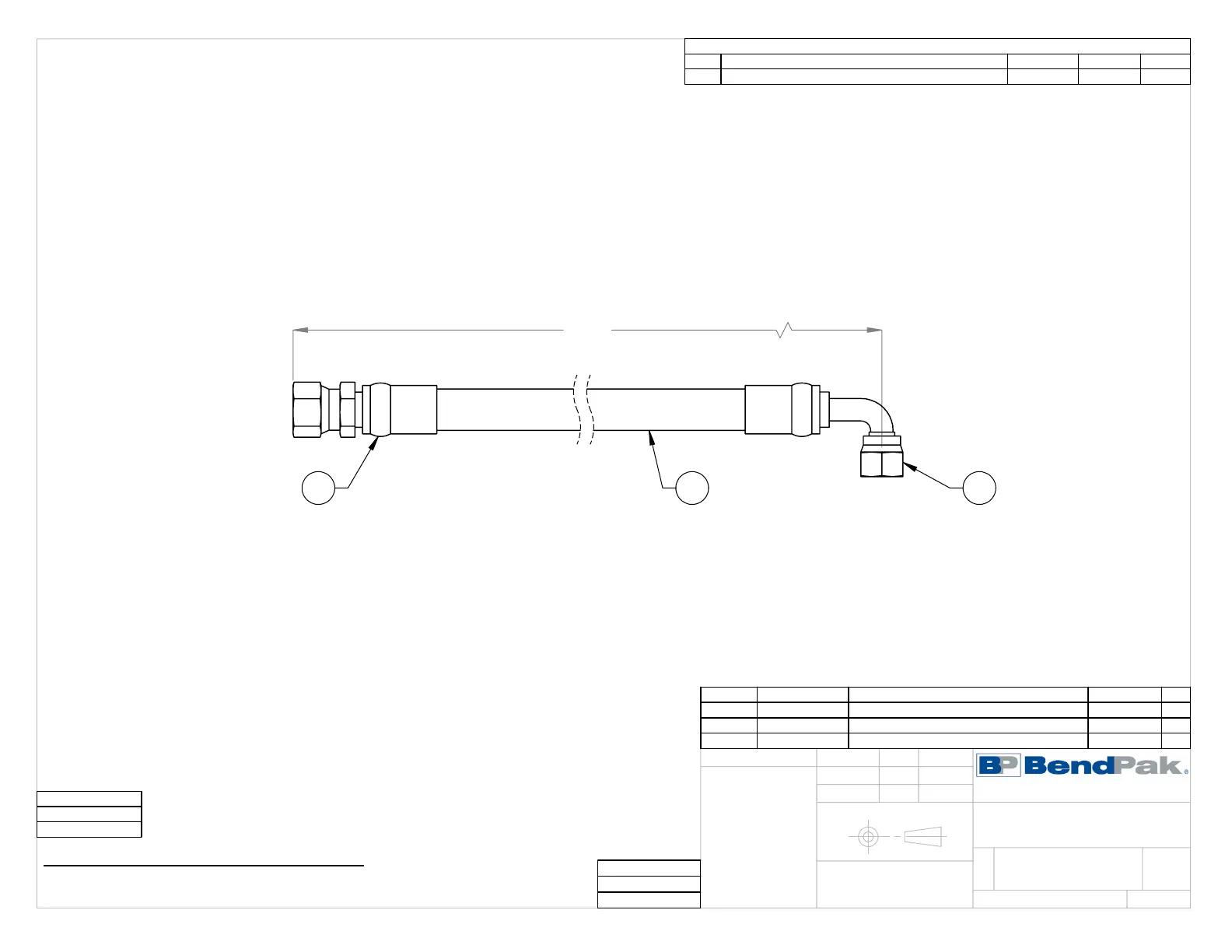

HYDRAULIC HOSE ASSEMBLY
Ø10 x 2217mm SB
03/28/2022
DO NOT SCALE DRAWING
1:2
SCALE:
THIRD ANGLE PROJECTION
OR
04/11/2022
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±1.0
0.00 = ±0.25
0.000 = ±0.13
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
NOTE: UNLESS OTHERWISE SPECIFIED.
FOR ITEM 1 SPECIFICATIONS REFER TO PART SPECIFICATION FORM
1.
(*)ITEM 1 QTY FOR REFERENCE ONLY
2.
