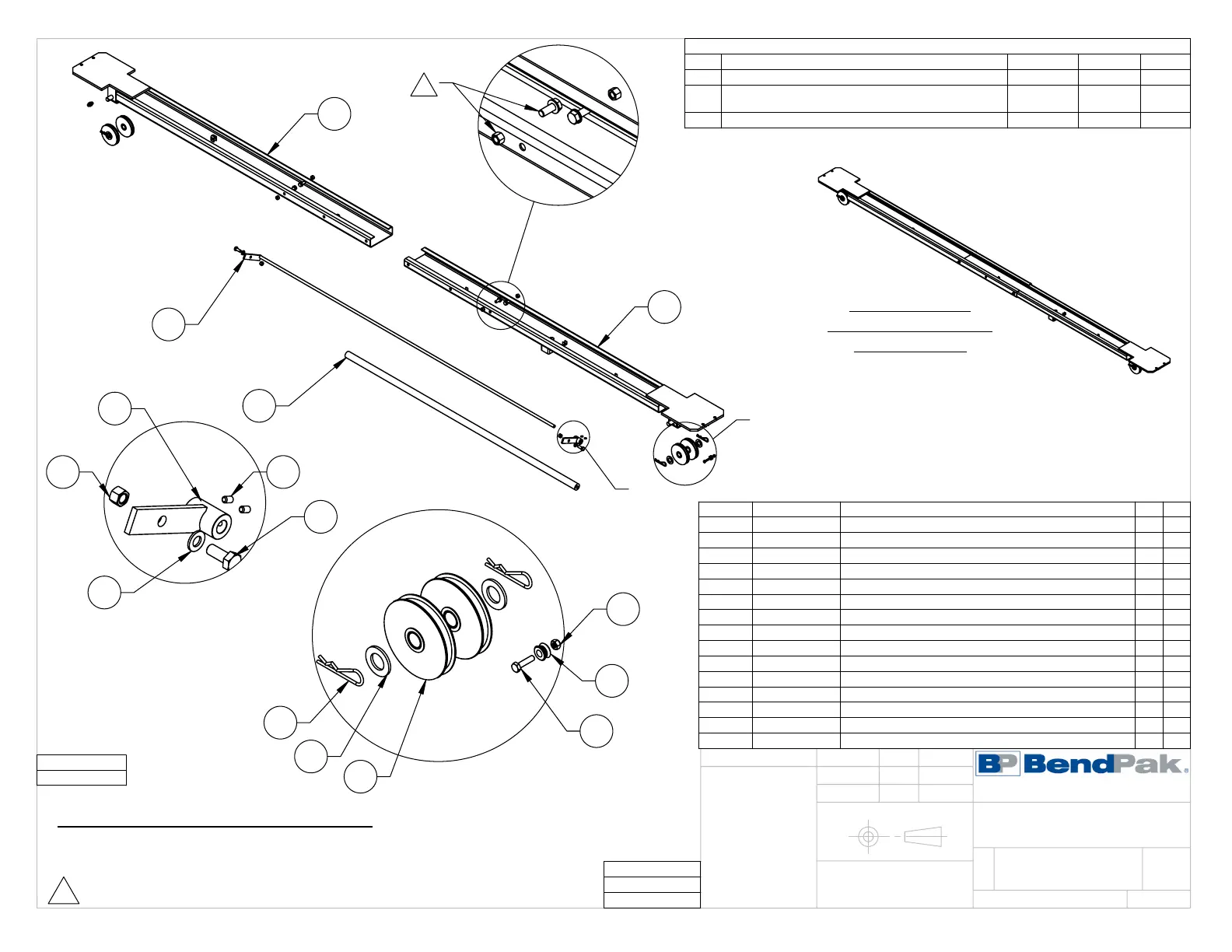

DIMENSIONS ARE IN MM
☺
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
A
B
2
8
6
1
DETAIL A
SCALE 1 : 4
3
7
4
5
9
DETAIL B
SCALE 1 : 5
10
11
12
15
14
13
DETAIL C
SCALE 1 : 6
4
NEXT ASSEMBLY
5245246
5245249
WHERE USED
10AP SERIES
ITEM NO
PART NUMBER
DESCRIPTION
QTY
REV
1 5601854
10AP OUTER TOP TROUGH WELDMENT
1
C
2 5601855
10AP INNER TOP TROUGH WELDMENT
1
C
3 5535013
NUT M10 x 1.5 NL
6
-
4 5530738
HHB M10 x 1.5 x 25
6
-
5 5545341
WASHER M10 x Ø20 FLAT
6
-
6 5600501
XPR-10/10A MICROSWITCH STOP BAR WELDMENT
1
B
7 5620445
XPR TRIP STOP BAR SLIDER WELDMENT
1
C
8 5300815
10AP/D2/XPR STOP BAR CUSHION
1
D
9 5530055
SSS M6x1x10
2
-
10 5575074
10AP SAFETY CABLE ROLLER
2
A
11 5535357
NUT M6 x 1.0, NL CL8
2
-
12 5530756
HHB M6 x 1.0 x 25mm
2
-
13 5575068
10AP 100mm SHEAVE ASSEMBLY
4
B
14 5505020
HAIR PIN 1/8” x 2 7/8”
4
-
15 5545343
WASHER, M20 FLAT
4
-
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
A
PRODUCTION RELEASE, DERIVED FROM 5215953
06/07/2022
CA
01417
B
ADDED 5545343, MOVED 5746496 TO
SUBWELDMENTS, UPDATED BOM REVISIONS
10/03/2022
TM
01449
C
UPDATED BOM REVISIONS
01/31/2023
CA
01467
SHEET 1 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
C
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
CA
5216182
10AP TOP TROUGH
ASSEMBLY
06/07/2022
DO NOT SCALE DRAWING
1:20
SCALE:
THIRD ANGLE PROJECTION
OR
02/03/2023
REFER TO MODEL FOR ADDITIONAL INFORMATION
1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
2.
ASSEMBLE ITEMS AS SHOWN
3.
NOTE ORIENTATION OF HARDWARE
4.
