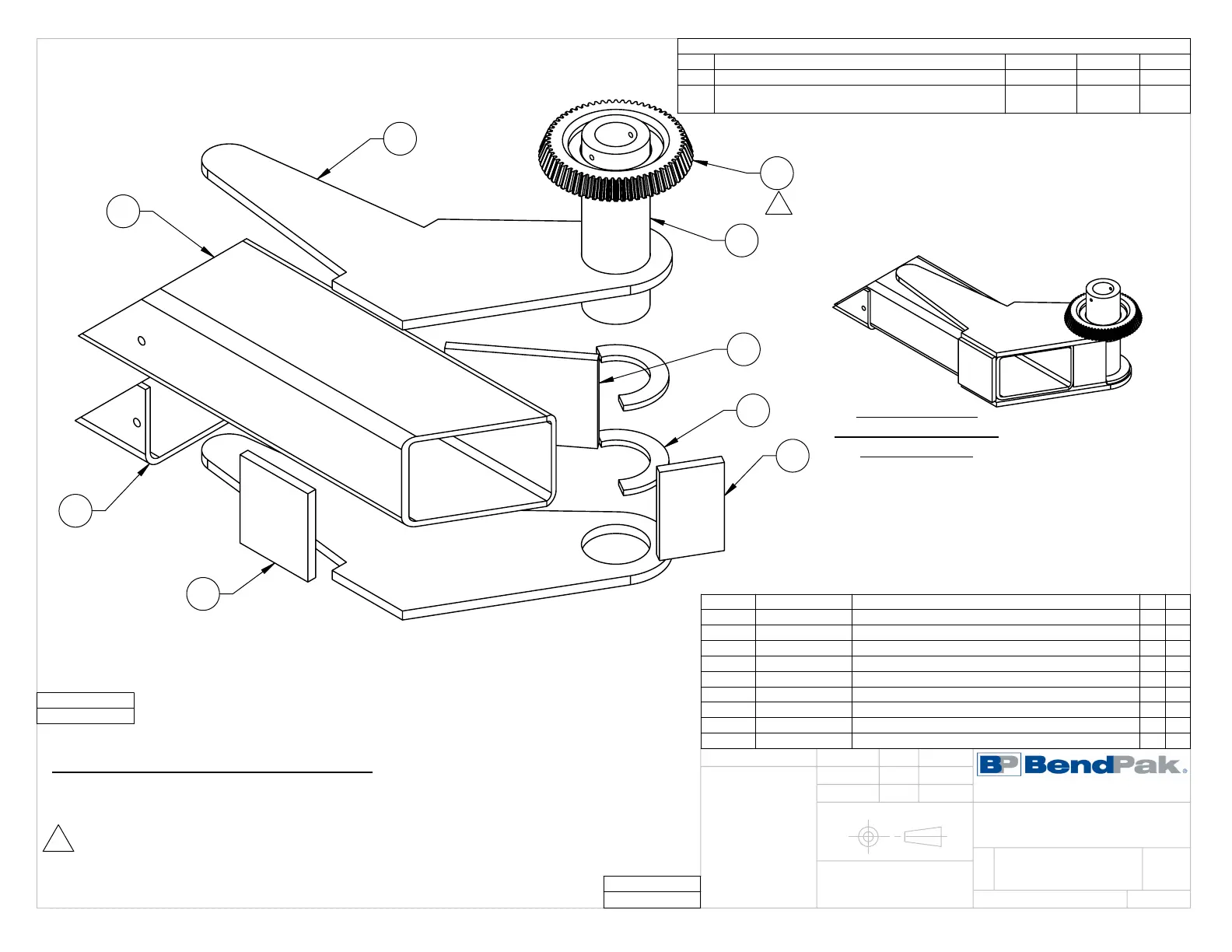

BendPak 10AP - 5601939; Sheet1; Drawing View1; Drawing View2

ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
8
3
6
2
4
1
4
9
5
7
WHERE USED
10AP SERIES
NEXT ASSEMBLY
5216218
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5701833 10AP ASYMMETRIC OUTER ARM, RIGHT 1 A
2 5700397 10AP OUTER ARM SECTION SUPPORT 1 A
3 5701834 10AP ASYMMETRIC ARM EAR 2 B
4 5735909 10AP ASYMMETRIC ARM GUSSET, OUTSIDE 1 A
5 5746495 ARM MOUNT TUBE, Ø38.2 1 C
6 5701702 10/12AP ARM RESTRAINT FULL CIRCLE GEAR 1 A
7 5735953 10AP ASYMMETRIC ARM GUSSET, INSIDE 1 1 A
8 5735954 10AP ASYMMETRIC ARM GUSSET, INSIDE 2 1 A
9 5601939-1 OUTER ARM MOUNT TUBE GUSSET 2 -
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A PRODUCTION RELEASE, DERIVED FROM 5601755 04/24/2023 TM 01488
B
WAS COUNTERSUNK NOW THROUGH HOLE, WAS
102.2 NOW Ø96.2, WAS 19.8 NOW 17.0
06/01/2023 CA 01492
SHEET 1 OF 3
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
B
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
TM
5601939
10AP ASYMMETRIC ARM
WELDMENT, OUTER
SECTION, RIGHT
04/24/2023
DO NOT SCALE DRAWING
1:10
SCALE:
THIRD ANGLE PROJECTION
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±0.5
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
BREAK AND DEBURR ALL SHARP EDGES 0.3mm 2.
REMOVE ALL WELD SPLATTER 3.
MASK TEETH BEFORE PAINTING 4.
MASK BORE AND ALL THREADS BEFORE PAINTING 5.
DIMENSIONS SHOWN ARE AFTER WELDING AND PAINTING 6.
PAINT YELLOW (RAL-1018) 20% GLOSS 7.
NOTE: UNLESS OTHERWISE SPECIFIED.
