DIMENSIONS ARE IN MM
☺

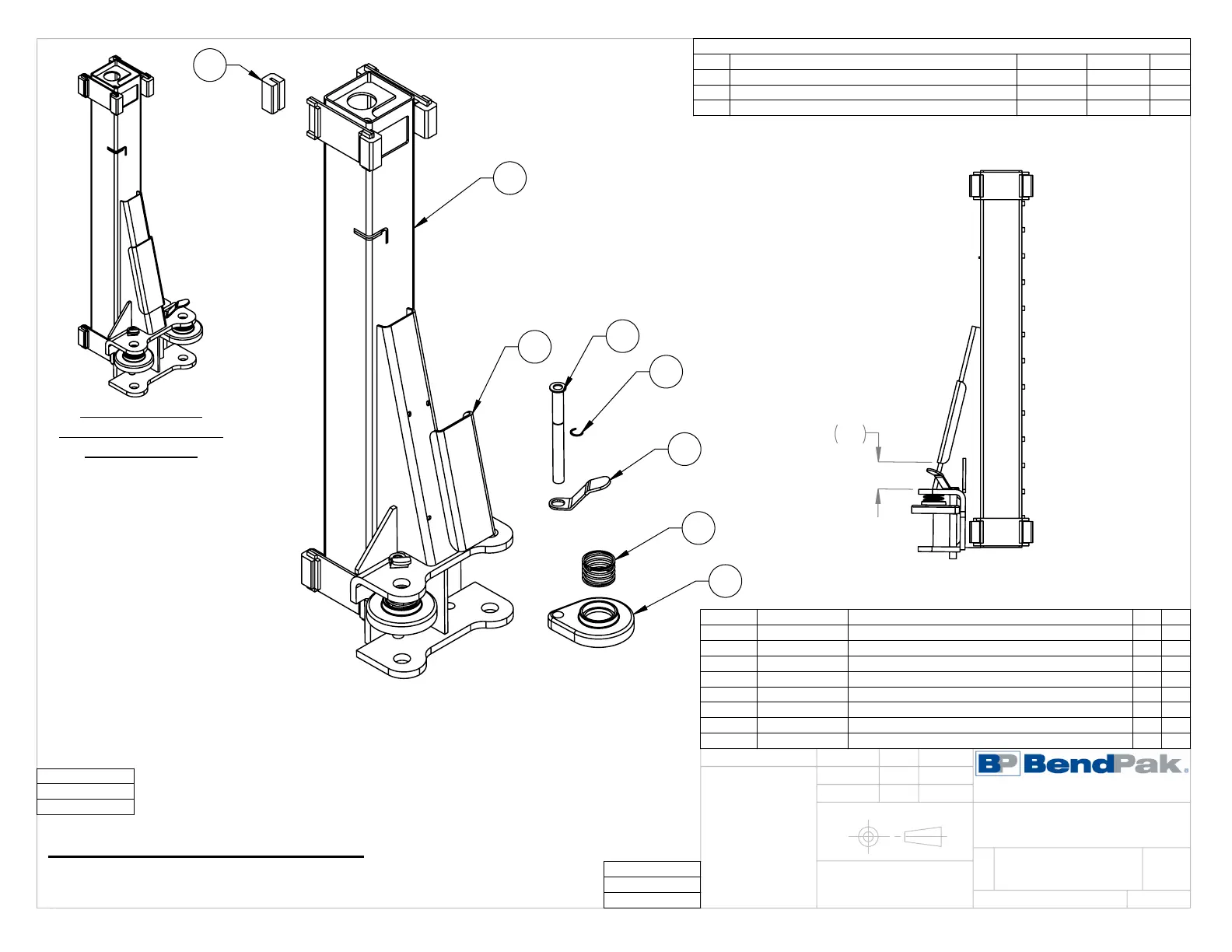

ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
2
1
3
4
5
7
6
8
98
WHERE USED
10AP
10AP-168
ITEM NO
PART NUMBER
DESCRIPTION
QTY
REV
1 5601852
10AP LIFT HEAD WELDMENT
1
D
2 5716001
2 POST GUIDE BLOCK
8
H
3 5601509
10AP ARM LOCK GUIDE ROD WELDMENT
2
E
4 5701700
10AP ARM LOCK RELEASE HANDLE
2
C
5 5701701
10AP ARM INTERNAL FULL CIRCLE GEAR STOP
2
C
6 5540044
COMPRESSION SPRING Ø74 x 50mm
2
-
7 5540006
SNAP RING TRUARC 5103-100
2
-
8 5930003
10AP LIFT HEAD GUSSET COVER
1
B
NEXT ASSEMBLY
5216128
5216129
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
D
UPDATED BOM REVISION
11/30/2022
CA
01458
E
UPDATED BOM REVISIONS
12/12/2022
TM
01460
F
UPDATED BOM REVISION
01/30/2023
CA
01467
SHEET 1 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
F
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
CA
5216180
10AP LIFT HEAD
ASSEMBLY
06/07/2022
DO NOT SCALE DRAWING
1:10
SCALE:
THIRD ANGLE PROJECTION
OR
02/03/2023
REFER TO MODEL FOR ADDITIONAL INFORMATION
1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
2.
ASSEMBLE ITEMS AS SHOWN
3.
