BendPak 10AP - 5260698; Sheet1; Drawing View1; Drawing View6

DIMENSIONS ARE IN MM
☺
1
4
3
2
5

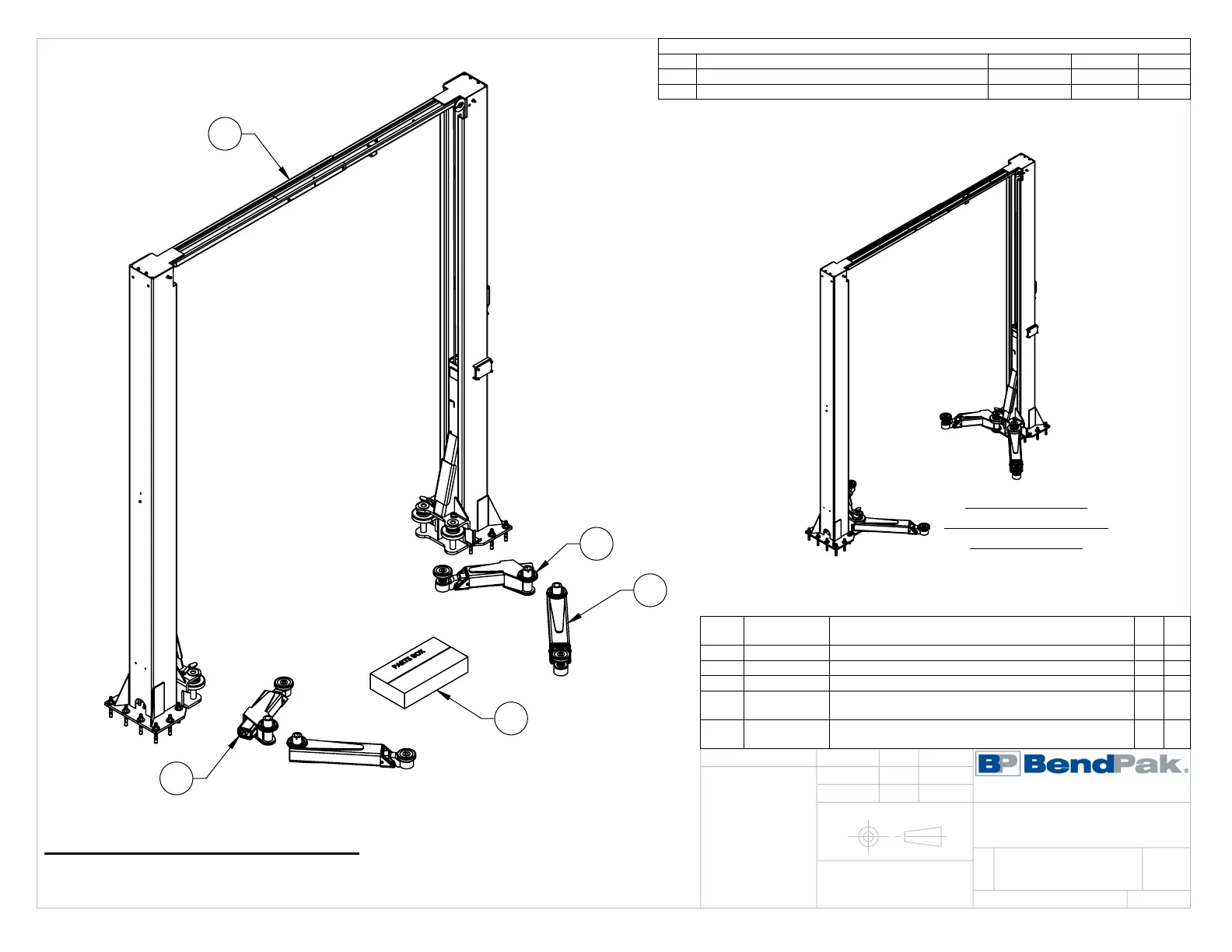

ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
ITEM
NO
PART NUMBER DESCRIPTION QTY REV
1 5245246 10AP LIFT SUPERSTRUCTURE 1 L
2 5250343 10AP PARTS BOX 1 F
3 5216216 10AP TRIPLE TELESCOPING ARM ASSEMBLY, LONG 2 B
4 5216217
10AP TRIPLE TELESCOPING ASYMMETRIC ARM
ASSEMBLY, LEFT
1 B
5 5216218
10AP TRIPLE TELESCOPING ASYMMETRIC ARM
ASSEMBLY, RIGHT
1 B
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A PRODUCTION RELEASE, DERIVED FROM 5260698 04/25/2023 TM 01488
B UPDATED BOM REVISIONS 06/01/2023 TM 01492
SHEET 1 OF 3
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
B
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5260698
10AP PRODUCTION
LIFT VER C
04/25/2023
DO NOT SCALE DRAWING
1:30
SCALE:
THIRD ANGLE PROJECTION
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE COLORS & GRAPHICS FOR LABEL PLACEMENT 2.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 3.
