7 - THEORY OF OPERATION

Simplified I/O Schematics

7.15 Simplified I/O Schematics

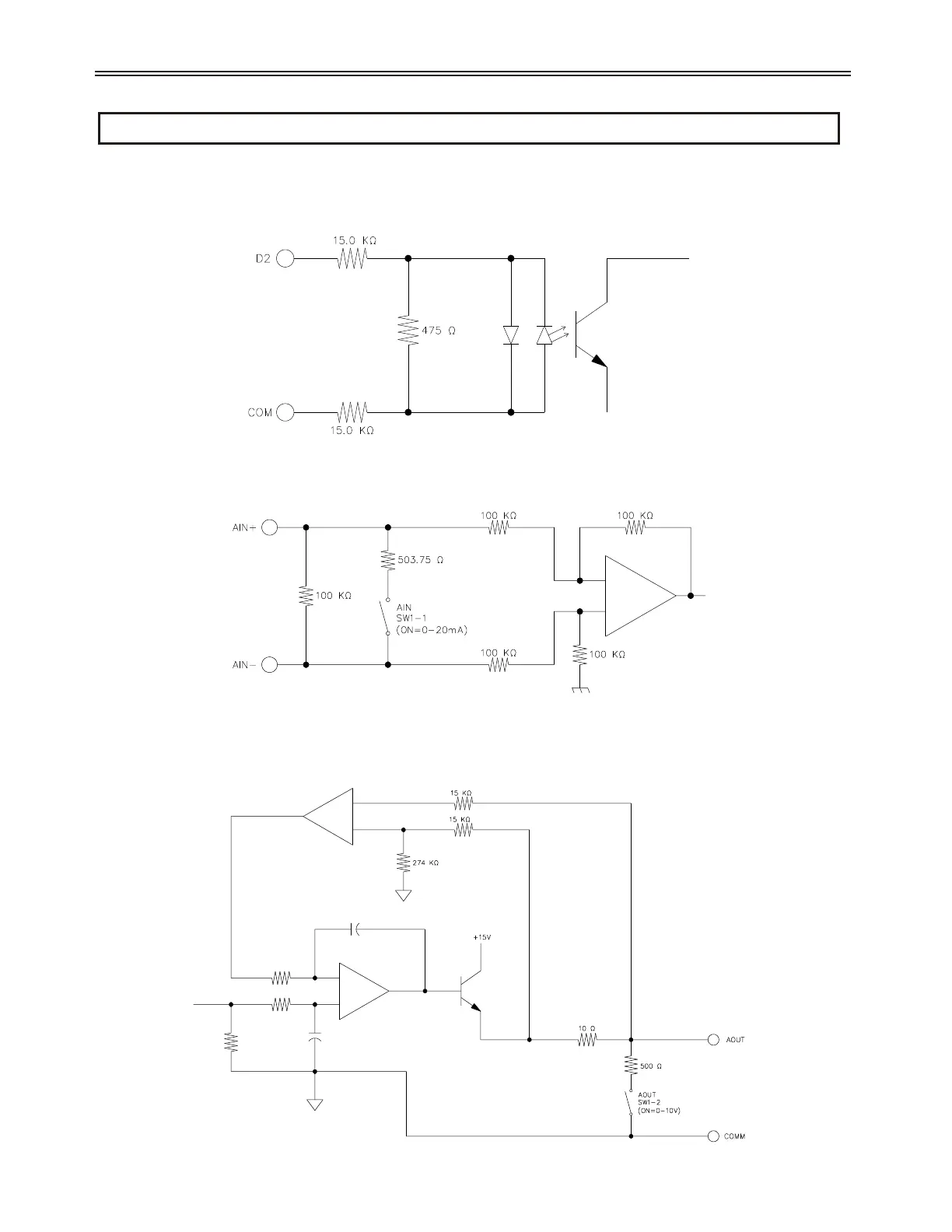

Figure 50: Analog Output Simplified Schematic

Figure 49: Analog Input Simplified Schematic

Figure 48: Digital Input Simplified Schematic
