Mechanical Drawings
2.4 Dimensions
2.4.1 RB2 Chassis with Integral Bypass
22
2 - TECHNICAL SPECIFICATIONS

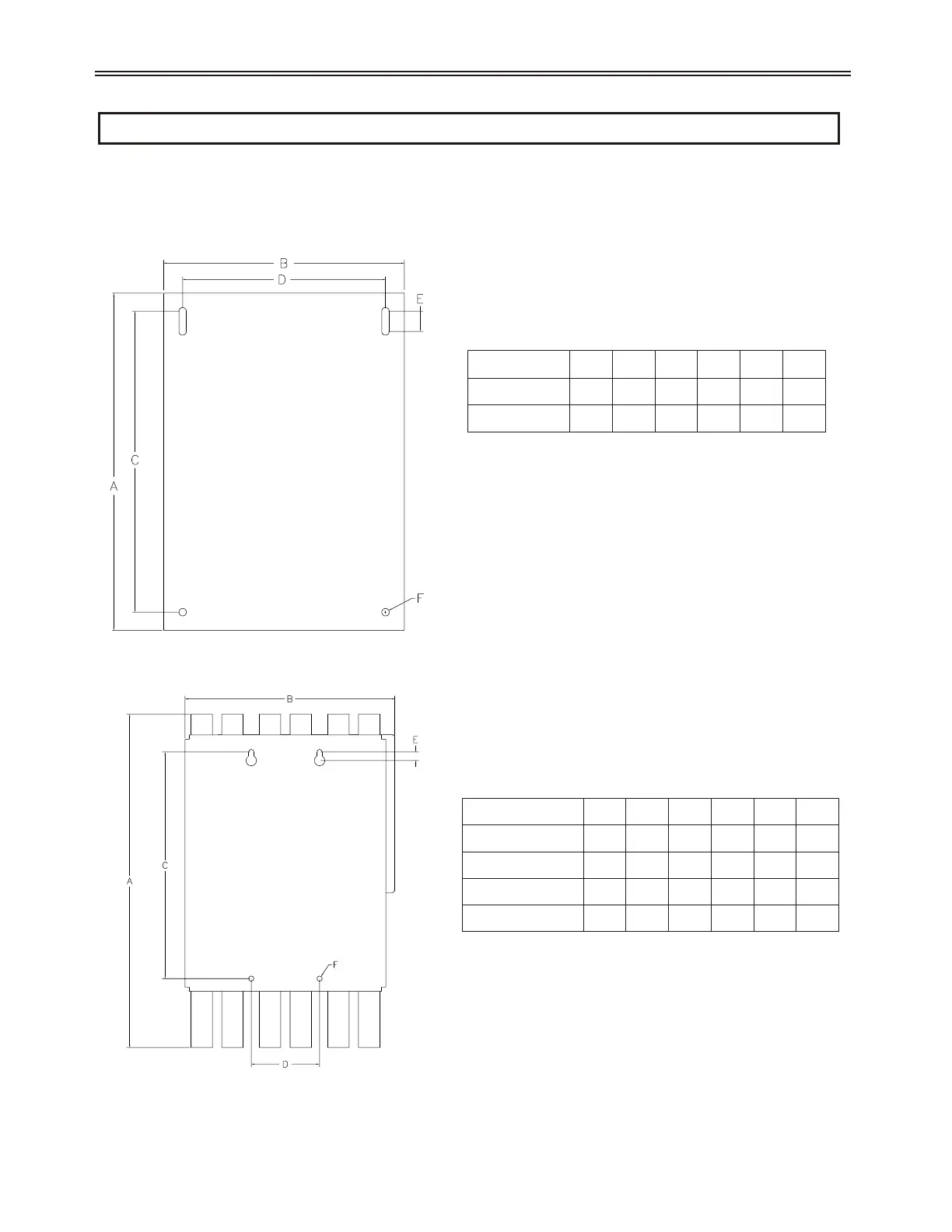

Figure 3: RB2 - 27A - 96A
Model
A B C D E F
RB2 27-65A
14 10 12.5 8.43 0.84 0.31
RB2 77-96A
15 10 13.5 8.43 0.84 0.31
Figure 4: RB2 125 - 361A
Model
A B C D E F
RB2 125A
19.5 12.27 13.25 4 0.5 0.31
RB2 156-180A
21.25 12.00 15.25 4 0.5 0.31
RB2 180-302A
22.75 12.16 16.75 4 0.5 0.31
RB2 361A
23.91 13.16 18.63 4.31 0.5 0.31
