52
4 - KEYPAD OPERATION
Remote LCD Keypad and Display
4.9 2x16 Remote LCD Keypad
Like the standard keypad, the remote LCD keypad has the same basic functions with enhancements that allow using plain text instead of
codes and a menu structure instead of a straight line of parameters.
Additional keys have been added, such as [START], [STOP], and a [LEFT] arrow for moving the cursor around in the LCD display.
Status indicators have been added, providing additional information for the starter operation.
The remote keypad is NEMA 13/IP65 when mounted directly on the door of an enclosure with the correct gasket.
Description of the LEDs on the Keypad
4.10 Description of the LEDs on the Keypad
The keypad provides three LED indicators in addition to the 2x16 character display. The LEDs provide starter status information.
z NOTE: By default, the [STOP] key is always active, regardless of selected control source (Local Source and Remote Source
parameters). It may be disabled though using the Keypad Stop Disable (P65 / I/O 18) parameter. For more information refer to the
Keypad Stop Disable (P65 / I/O 18) parameter on page 119.

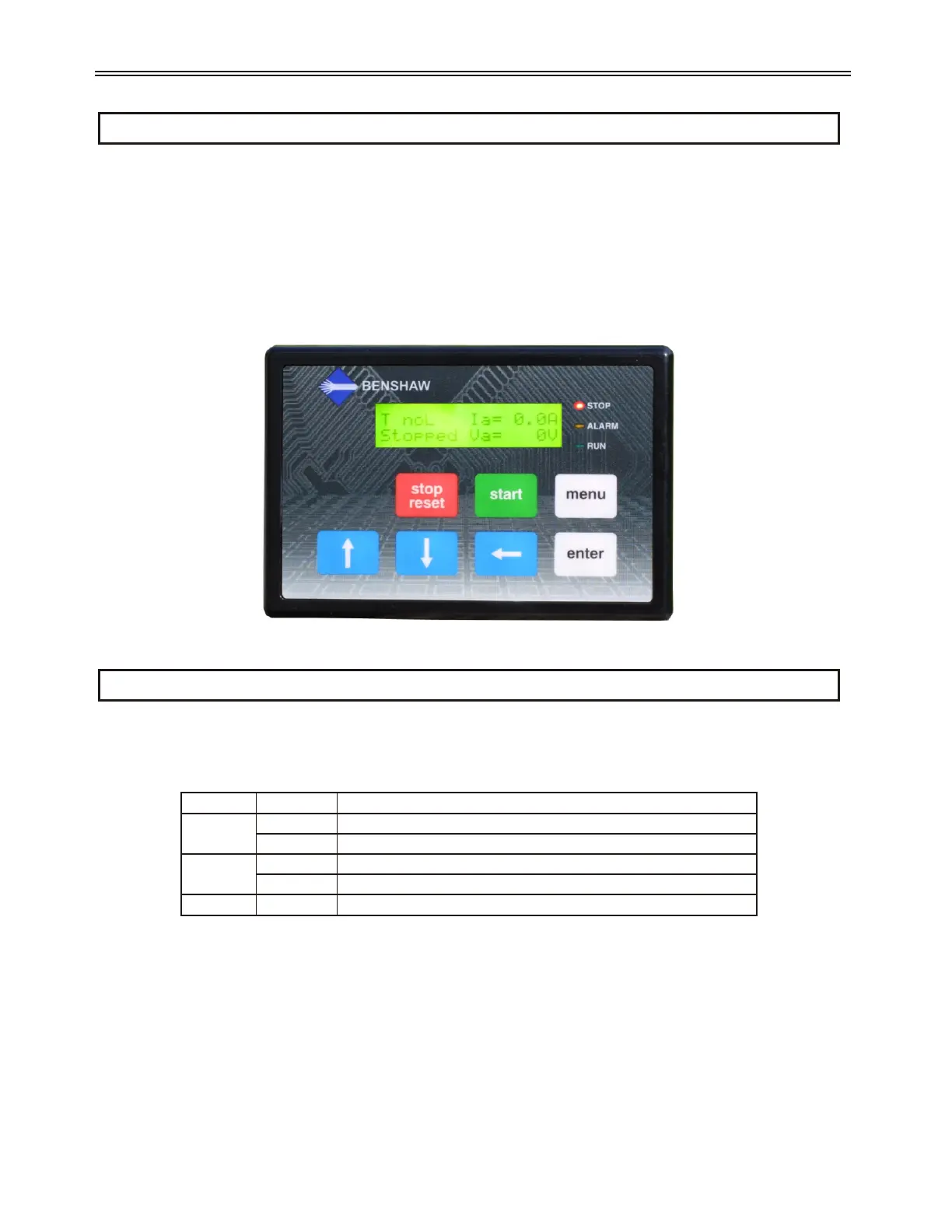

Figure 23: Remote LCD Keypad
LED State Indication
STOP
On Stopped
Flashing Faulted
RUN
On Running and up-to-speed
Flashing Running and not up-to-speed (ramping, decelerating, braking etc).
ALARM Flashing Alarm condition exists. If condition persists, a fault occurs.
Table 17: Remote Keypad LED Functions
