Jump to Parameter CFN 00
By changing the value of this parameter and pressing [ENTER], you can jump directly to any parameter within that group.
P10 Start Mode CFN 01
LED Display LCD Display
Range LED LCD Description
oLrP Voltage Ramp Open Loop Voltage acceleration ramp.
curr Current Ramp Current control acceleration ramp. (Default)
tt TT Ramp TruTorque control acceleration ramp.
Pr Power Ramp Power (kW) control acceleration ramp.
Description The Start Mode parameter allows the selection of the optimal starting ramp profile based on the application.
The closed loop current control acceleration ramp is ideal for starting most general-purpose motor
applications. Ex: crushers, ball mills, reciprocating compressors, saws, centrifuges, and most other
applications.
The closed loop TruTorque control acceleration ramp is suitable for applications that require a smooth torque
output from the motor during starting. Ex: centrifugal pumps, fans. The Tru Torque is also suitable for belt
driven applications to eliminate belt sequel that commonly occurs near full speed.
The closed loop power control acceleration ramp is ideal for starting applications using a generator or other
limited capacity source.
See Also Initial Current 1 (P6 / QST 06) parameter on page 79.
Maximum Current 1 (P7 / QST 07) parameter on page 80.
Ramp Time 1 (P8 / QST 08) parameter on page 81.
Initial Voltage/Torque/Power (P11 / CFN 08) parameter on page 84.
Kick Level 1 (P13 / CFN 10) parameter on page 86.
Kick Time 1 (P14 / CFN 11) parameter on page 86.
Theory of Operation section 7.3, Acceleration Control on page 140.
83
6 - PARAMETER DESCRIPTION

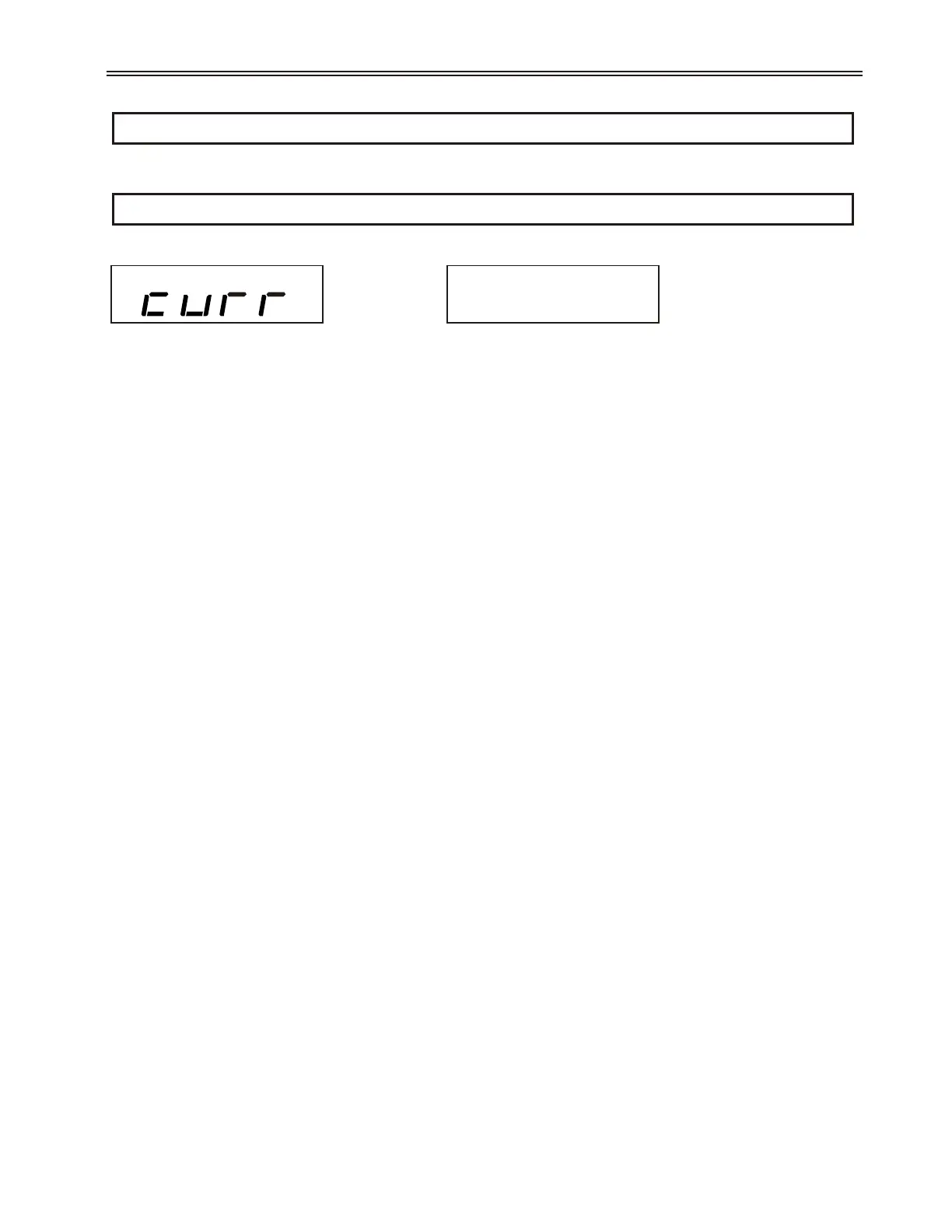

CFN: Start Mode
01 Current Ramp
