7
BASIC CONFIGURATION
1 - INTRODUCTION

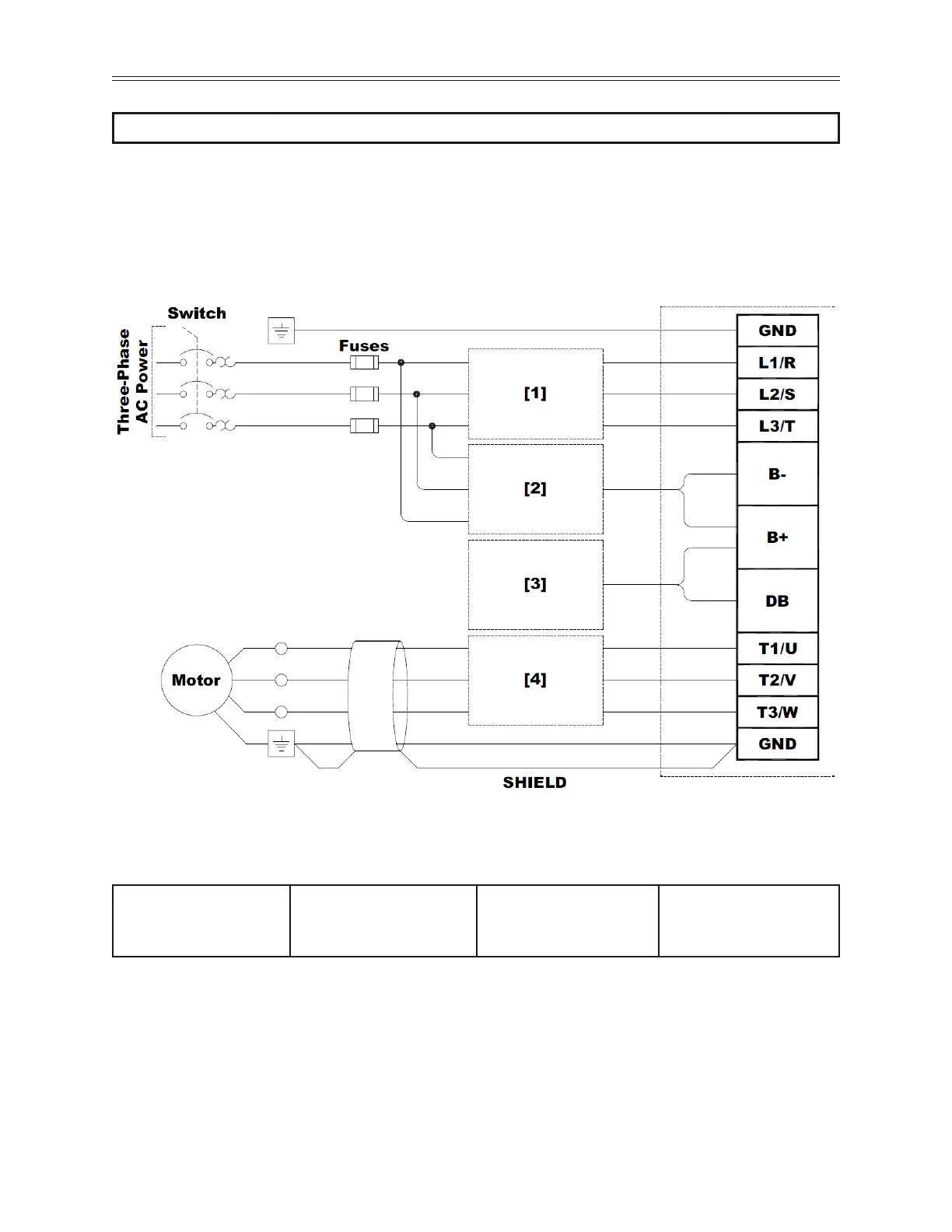

1.4 Basic Configuration
The following devices are required to operate the drive. Proper peripheral devices must be selected and
correct connections made to ensure proper operation. An incorrectly applied or installed drive can result
in system malfunction or reduction in product life as well as component damage. You must read and
understand this manual thoroughly before proceeding.
[1] 3 or 5% Line Reactor
EMI RFI Suppression
Isolation Transformer
Passive Filter
Active Filter
[2] DC Bus Voltage
- Connection for 18 pulse frontend
- Multi-Drives
DBR Dynamic Braking Module
Line Regeneration Module
[3] B+/DB Connection [4] 3 or 5% Line Reactor
Long Lead Filter
Sine Wave Filter
To Next Page
