BENSHAW RSi S4 Series - Typical Connection Diagrams for Digital Inputs; Preset Speeds

44
4 - CONNECTIONS

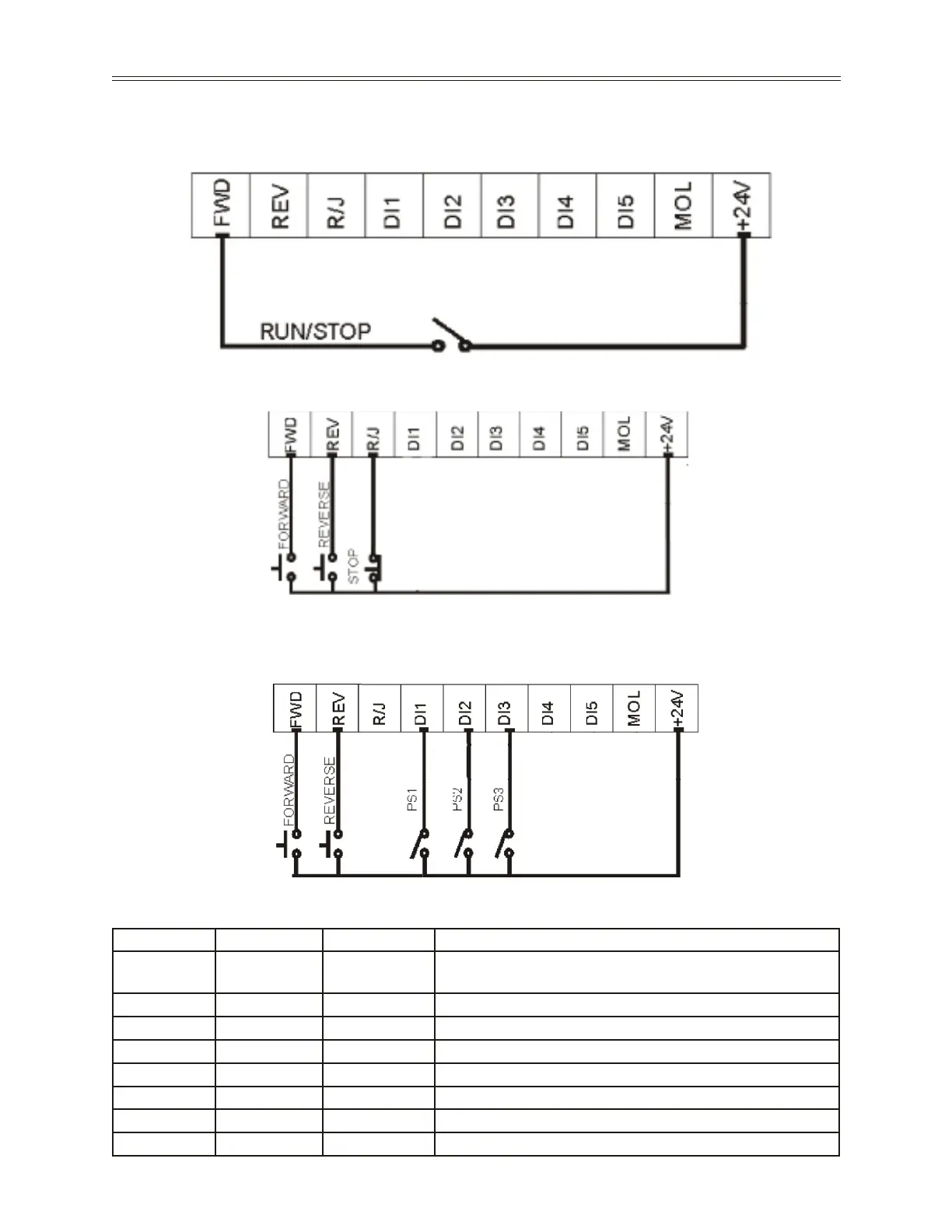

4.5.3 Typical Connection Diagrams for Digital Inputs
Typical connection for 2-wire control
Typical connection for 3-wire control
4.5.4 Preset Speeds
Figure 15: Connections for Preset Speeds
Selection of Preset Speeds
PS3 (Bit 3) PS2 (Bit 2) PS1 (Bit 1) Speed Selected
0 0 0
Normal reference speed as dened by parameter
DRV05(Freq Mode 1) or operate screen
0 0 1 Preset frequency F1 (I/O 13).
0 1 0 Preset frequency F2 (I/O 14).
0 1 1 Preset frequency F3 (I/O 15).
1 0 0 Preset frequency F4 (I/O 16).
1 0 1 Preset frequency F5 (I/O 17).
1 1 0 Preset frequency F6 (I/O 18).
1 1 1 Maximum frequency (AFN 04)
