Chapter 6 - Parameter Description [FUN]
6-12
FUN-23: Stop Mode
This parameter sets the stopping method of the drive.
LCD
Setting Range
Description
Decel
The drive stops using the
deceleration pattern.
Dc-brake
The drive stops with DC injection
braking. The drive will output a DC
voltage when the frequency goes
below the DC injection braking
frequency during deceleration.
Free-run
(Coast to stop)
The drive stops outputting
voltage immediately when the
stop signal is commanded.
Flux brake
Faster stopping times are available
by converting some of the
regenerating energy into heat at the
motor during deceleration. Flux
Brake will stop the motor as fast as
possible without tripping the drive.
☞ Caution: When DC braking or Flux braking is
used, discretion must be used as excessive motor
heating may result if the load inertia is large, if the
braking is done frequently, if the brake current is
set too high, or if the brake time is set too long.

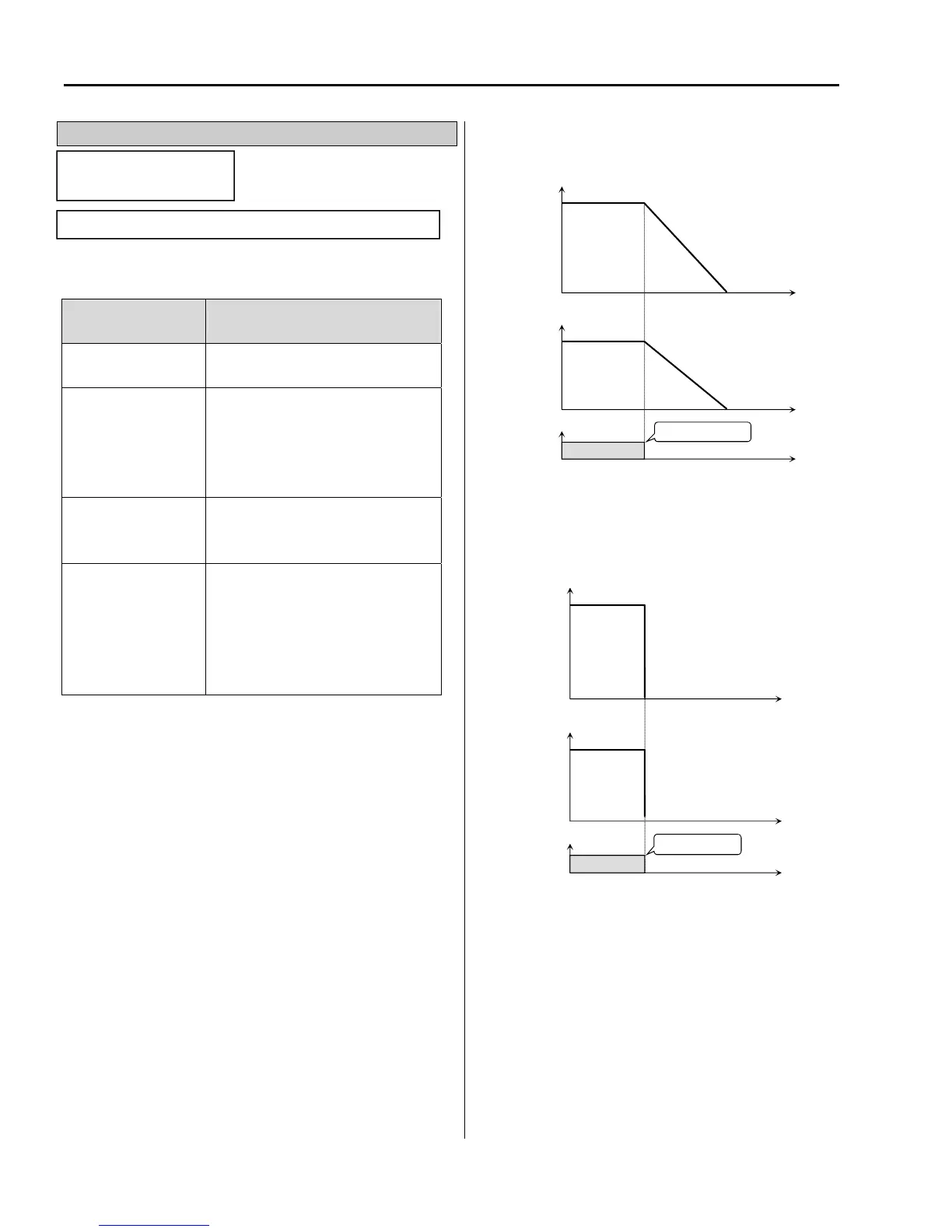

Stop Mode: Decel
Stop Mode: Free-run
FUN
►
S
top mode
23 Decel
Factory Default: Decel
Output Frequency
Time
FX-CM
ON
Output Voltage
Time
Time
Stop Command
Out
ut Fre
uenc
Time
FX-CM
ON
Out
ut Volta
e
Time
Time
Stop Command
To Next Page
