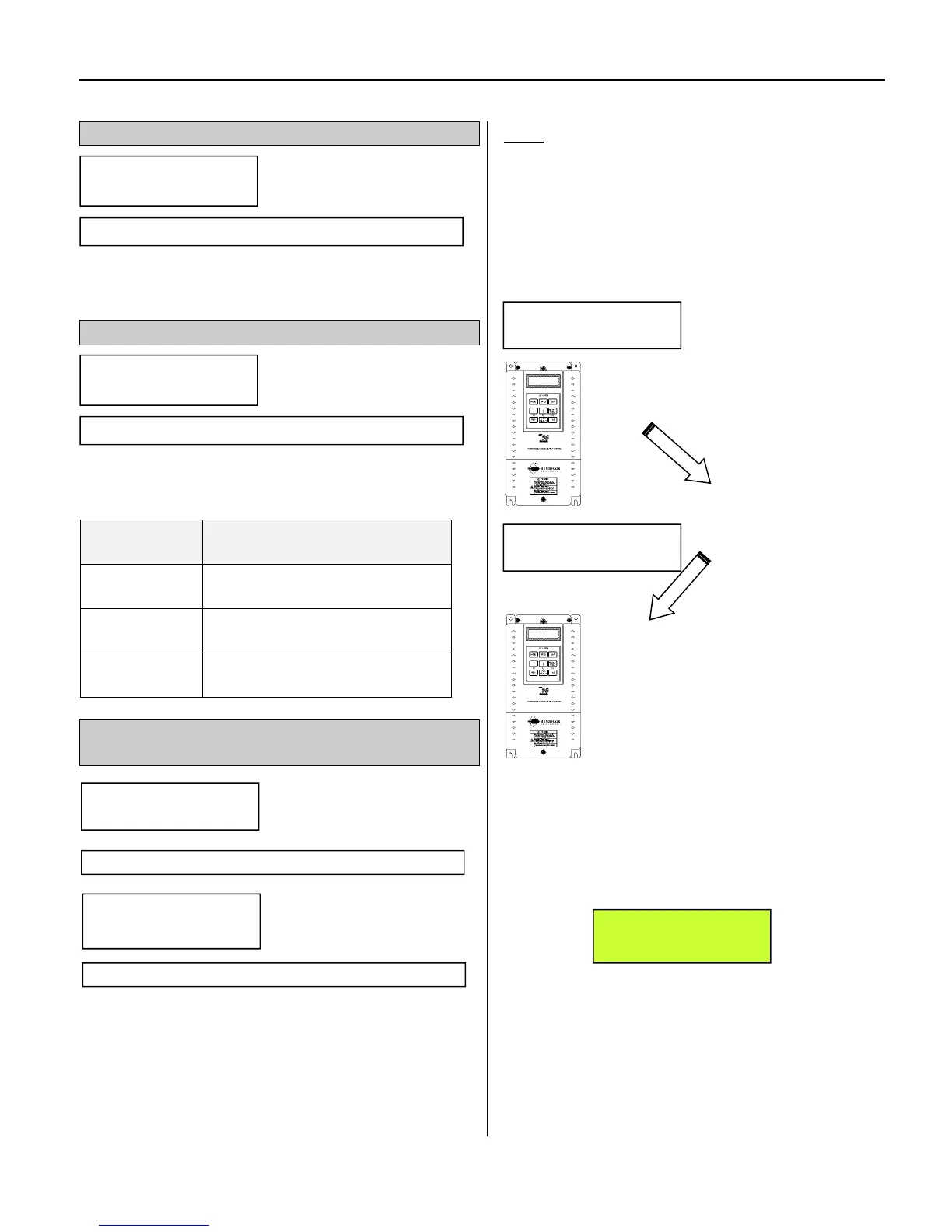

Chapter 6 - Parameter Description [AFN]
6-37
AFN-87: Output Power Display Adjustment
Used to adjust the drive output power display (AFN-81,
DRV-12) and the KiloWattHour display (FUN-54).
AFN-90: Parameter Display
This parameter selects which parameters can be viewed
by the user.
AFN-90
Setting Range
Description
Default
Displays basic parameters.
(factory default)
All Para
Displays all parameters.
Diff Para
Displays parameters changed
from default settings.
AFN-91: Parameter Read
AFN-92: Parameter Write
These are useful for programming multiple drives that
have the same parameter settings. The LCD keypad can
read (upload) the parameter settings from the drive
memory and can write (download) them to other
drives. See related parameter AFN-95.
Note: When AFN-91, 92 is used, motor parameters
such as DRV-05, AFN-40~46 and AFN-62~63 will be
initialized.
1) Set AFN-91 to “Yes” and press Enter key to read the
parameters. “Yes” will be displayed while reading.
Display will change to “No” when completed.
NOTE: The above Read/Write function can only be
performed on drives with the same software. Check
parameter AFN-82 for drive software version.
VER. Err is displayed if software is not the same
version.
AFN
►
Para. read
91 --- No ---
Factory Default: No
AFN
►
Para. write
92 --- No ---
Factory Default: No
AFN
►
Para. read
91 --- Yes ---
2) Take the LCD
keypad out.
3) Install the keypad into
the next drive and set AFN-
92 to “Yes”. Then press
Enter to download the
arameters.
AFN
►
Para. write
92 --- Yes ---
AFN
►
Para. disp
90 Default
Factory Default: Default
AFN
►
Power set
87 100%
Factory Default: 100%
AFN
► Para. Write
92 VER. Err
