Chapter 6 - Parameter Description [I/O]
6-53

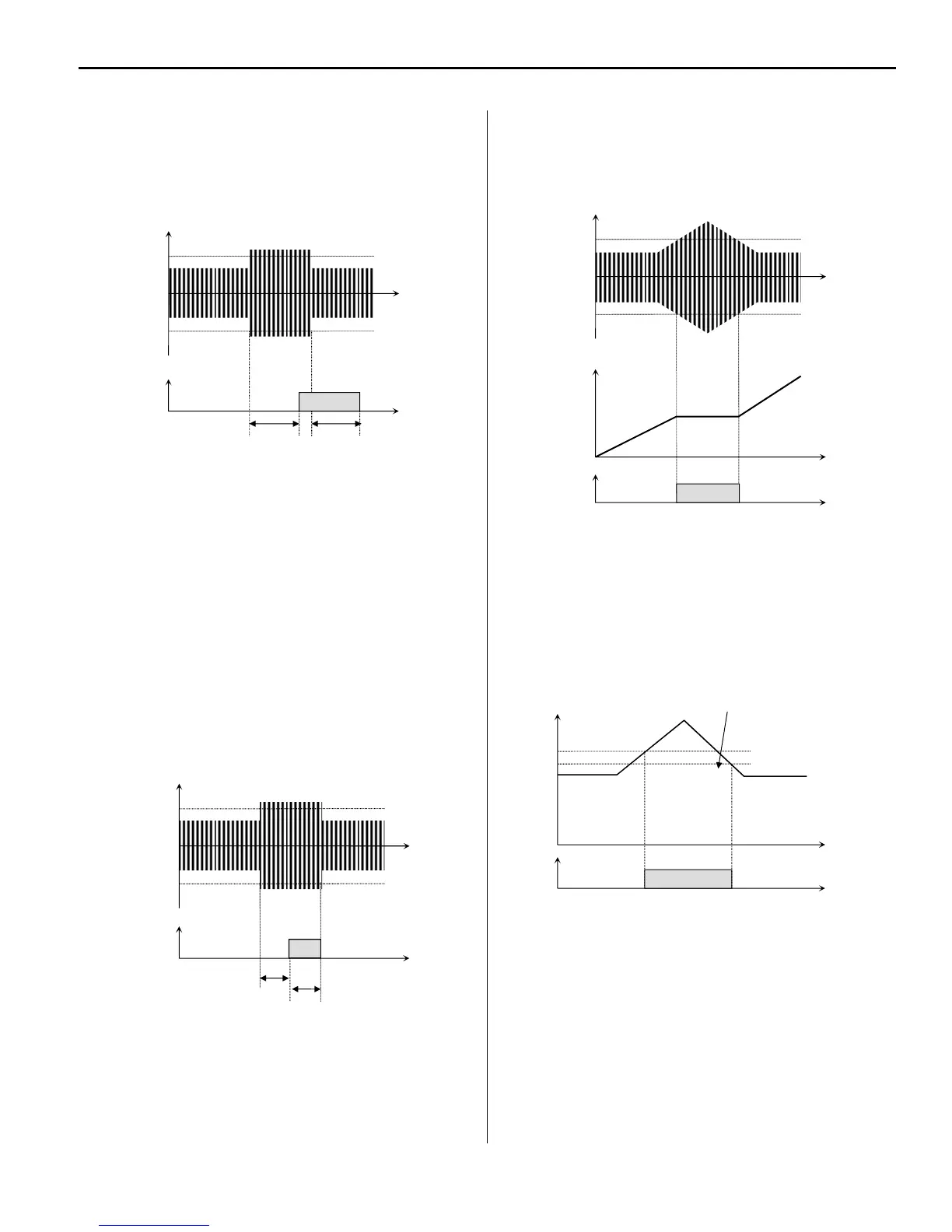

[OL]
AX-CX
is CLOSED when the output current has
reached the FUN-64 [Overload Warning Level] for the
FUN-65 [Overload Warning Time].
AX-CX configured as ‘OL’
[IOL]
AX-CX is CLOSED when the output current is above
the 110% of the drives standard duty rated current for
36 seconds. If this situation is continued for one
minute, the drive will cut off its output and displays
‘IOL’ (Inverter overload) Trip. See the nameplate for
the rated inverter current. The IOL function has an
Inverse Time (I²t) characteristic and provides an alarm
(closes relay) at 60% (36 secs) of the one minute time
period.
AX-CX configured as ‘IOL’
[Stall]
AX-CX is CLOSED when the drive is in the stall
prevention mode.
AX-CX configured as ‘Stall’
[OV]
AX-CX is CLOSED when the DC link voltage is above
the Over-voltage level.
AX-CX configured as ‘OV’
t1: FUN-65 [Overload Warning Time]
Output Current
Time
Time
FUN-64
[OL level]
FUN-64
[OL level]
AX-CX
ON
t1 t1
Output Current
Time
Time
110% of Rate
Inverte
AX-CX
ON
36sec
110% of Rate
Inverte
24sec
Output Current
Time
Output Frequency
Time
FUN-71
[Stall Level]
FUN-71
[Stall Level]
Time
CLOSED
AX-CX
AX-CX
ON
DC Link Voltage
Time
Time
OV Level: 390V DC
760V DC
980V DC
