BENSHAW RSi SG Series User Manual

Chapter 2 – Drive Ratings and Specification
2-19

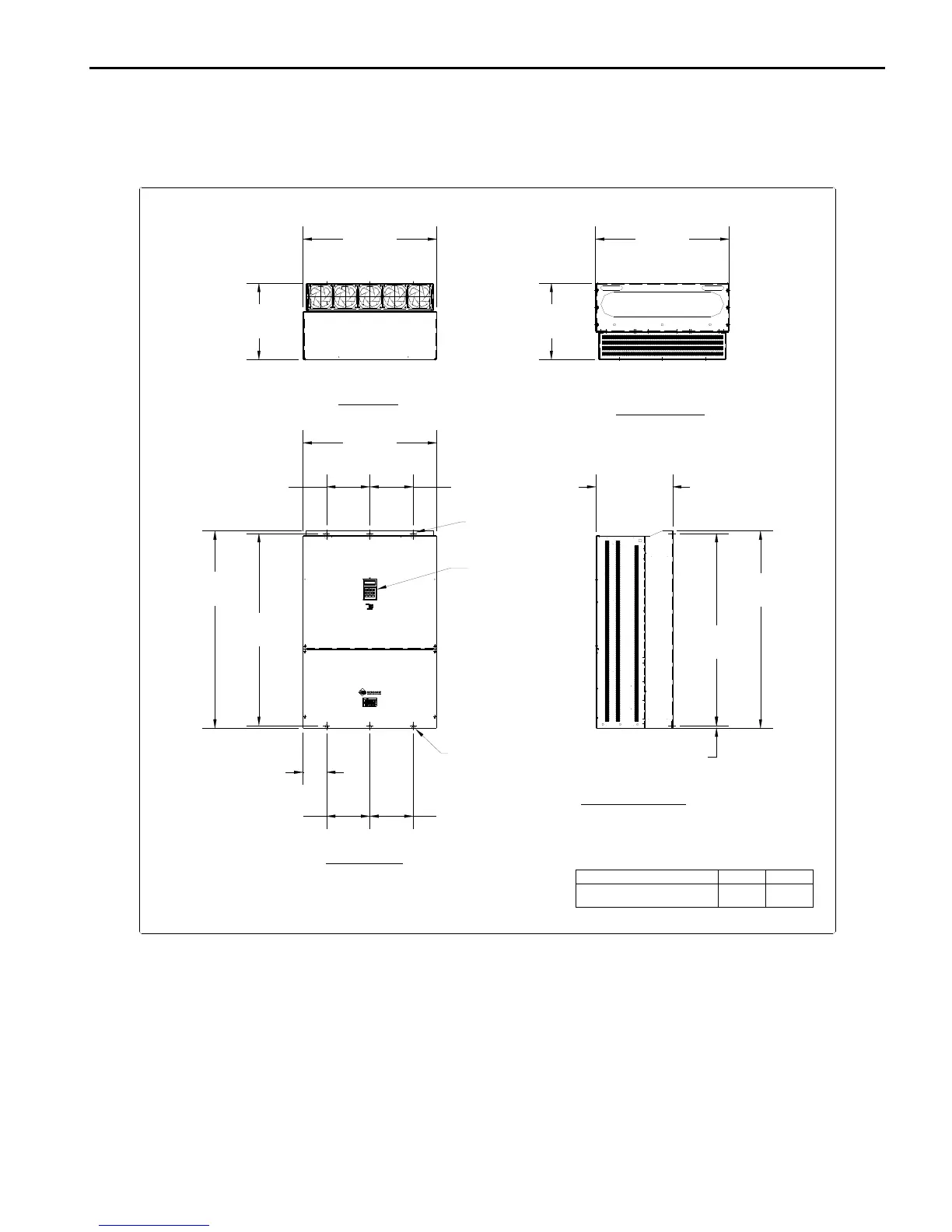

13) 500HP,460V
RIGHT SIDE VIEW
FRONT VIEW
BOTTOM VIEW
TOP VIEW
30.39
[771.91]
17.40
[441.99]
30.39
[771.91]
9.85
[250.09]
44.90
[1140.36]
43.70
[1109.85]
44.90
[1140.46]
43.70
[1109.85]
9.85
[250.09]
17.40
[442.01]
5.35
[135.86]
17.40
[441.99]
30.39
[771.91]
9.85
[250.09]
9.85
[250.09]
PART NUMBER
VFD-RSI-500-SG-4
460
VOLTS
500
HP
0.43 DIA.
MTG. HOLES
(2 PLACES)
REMOVABLE SG
LCD KEYPAD
0.43 DIA.
MTG. HOLES
(2 PLACES)
0.52
[13.11]
WARNINGWARNING
VARIABLE FREQUENCY DRIVEVARIABLE FREQUENCY DRIVE

BENSHAW RSi SG Series Specifications

General

Brand	BENSHAW
Model	RSi SG Series
Category	DC Drives
Language	English
