Bernette b70 DECO - 2.5 Needle Installation Guide

Embroidering preparation
25
2019-02 EN 5020070.00A.04

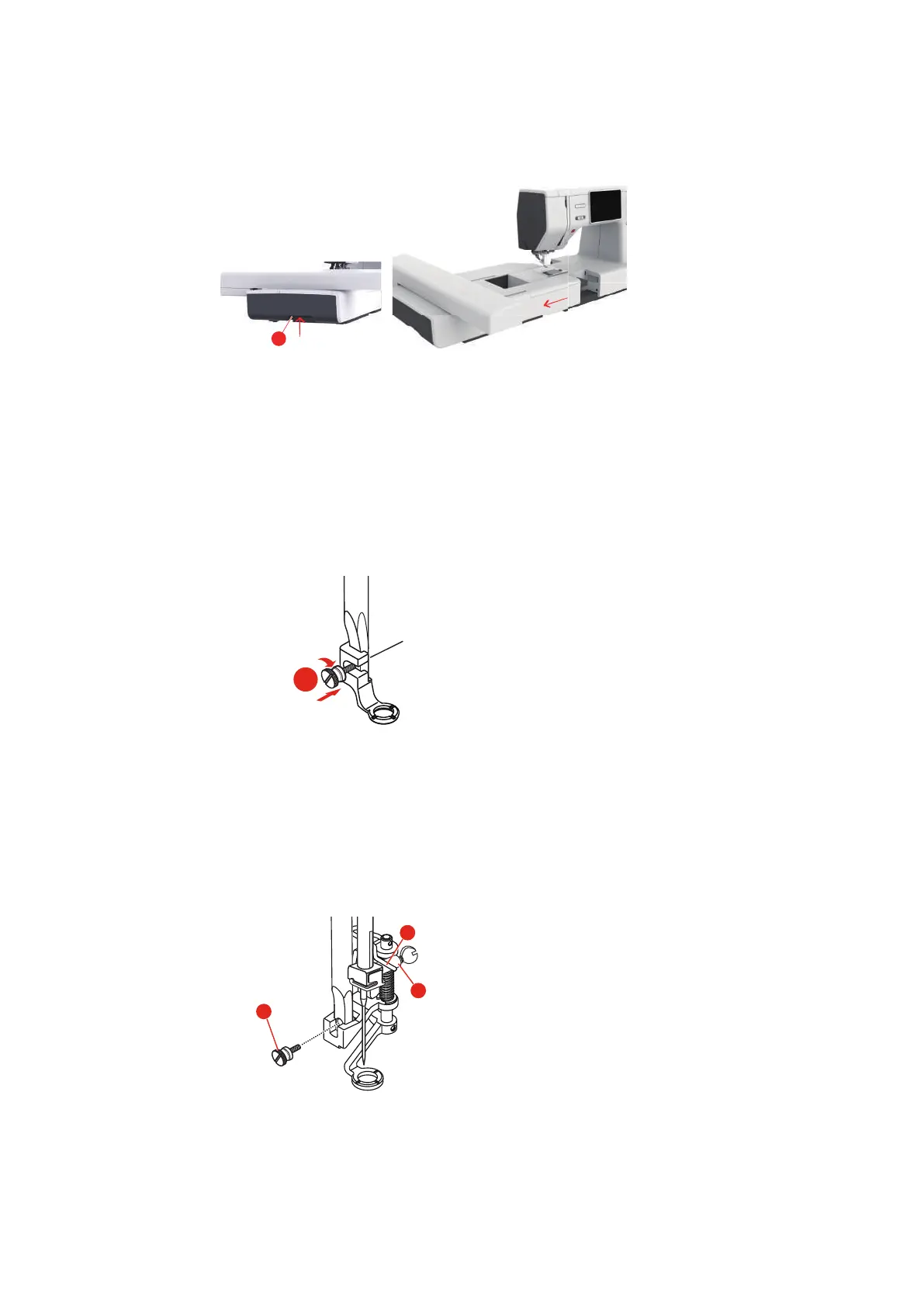

> To remove, hold the embroidery module and press the release button (2), then slide left the embroidery
module out of the machine arm.
2
2.4 Embroidery foot
Attaching the embroidery foot
Mount the embroidery foot
> Raise the needle.
> Raise the presser foot.
> Switch the machine off and disconnect it from the power supply system.
> Attach the embroidery foot (JL) from the back with the index finger to the presser foot bar and tighten
the screw (1).
1
Mount the hopper embroidery foot
> Raise the needle.
> Raise the presser foot.
> Switch the machine off and disconnect it from the power supply system.
> Mount the hopper embroidery foot (JX) on the presser foot rod, making sure that the spring (3) is above
the needle fixing screw (4).
> Tighten the screw (1).
4
3
1
