Embroidering preparation
37
2019-02 EN 5020070.00A.04

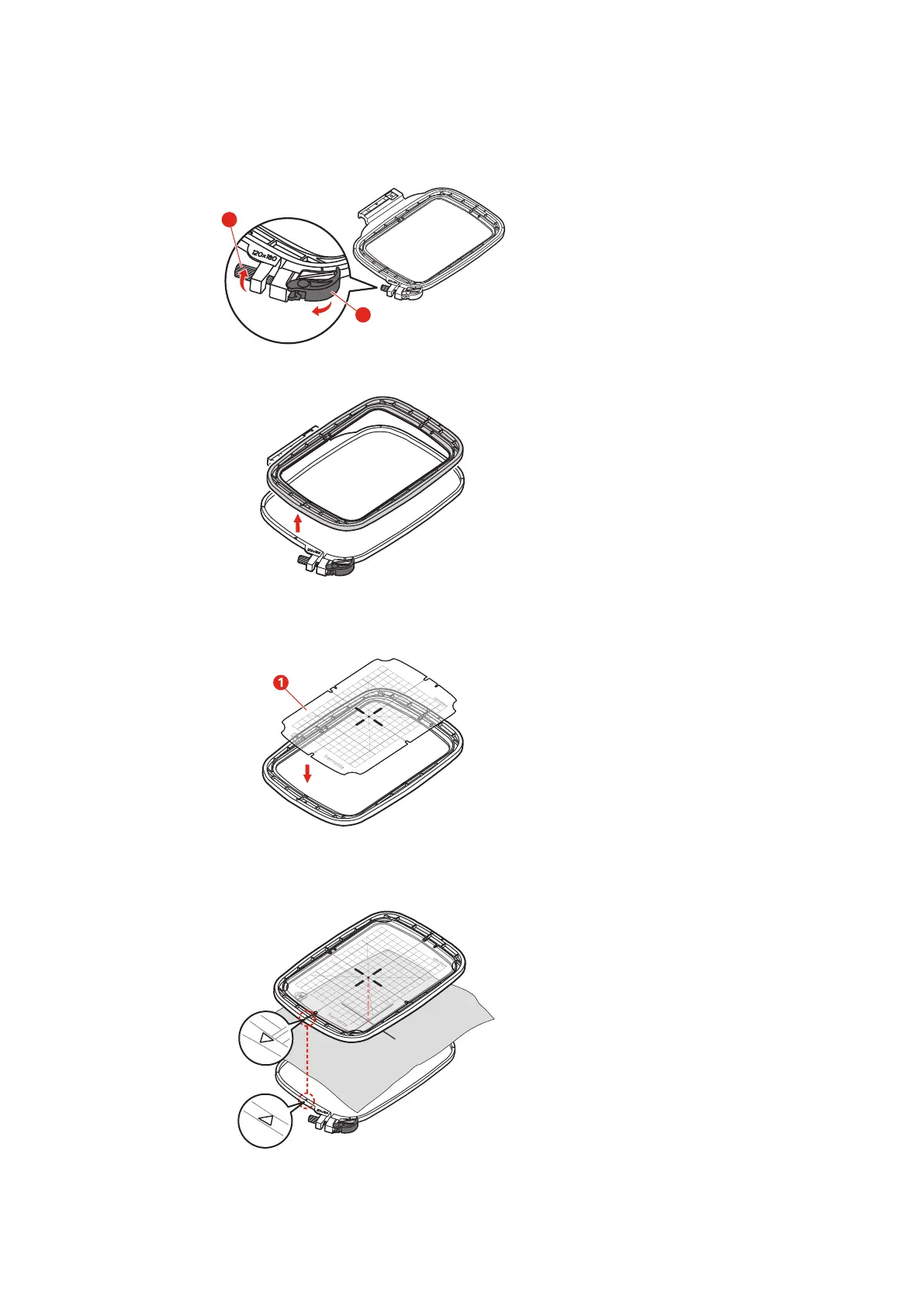

> Loosen the screw (1) or open the quick release device (2) on the outer hoop.
– If a new type of fabric is used, the pressure must be adjusted by turning the screw.
> Remove the inner hoop.
> Place the template (1) in the inner hoop, so the bernette logo is at the front edge, and make sure the cut
outs click into place.
> Place fabric under the inner frame so that it is at least 2 cm above the hoop.
> Line up the marked center point on the center of the template.
> Place the material and the inner hoop on the outer hoop so that the arrows of both hoops match.
> Fit the hoops into each other; ensure that the material does not move.
