Embroidery preparation
41
2022-08 EN 5020070.40A.04

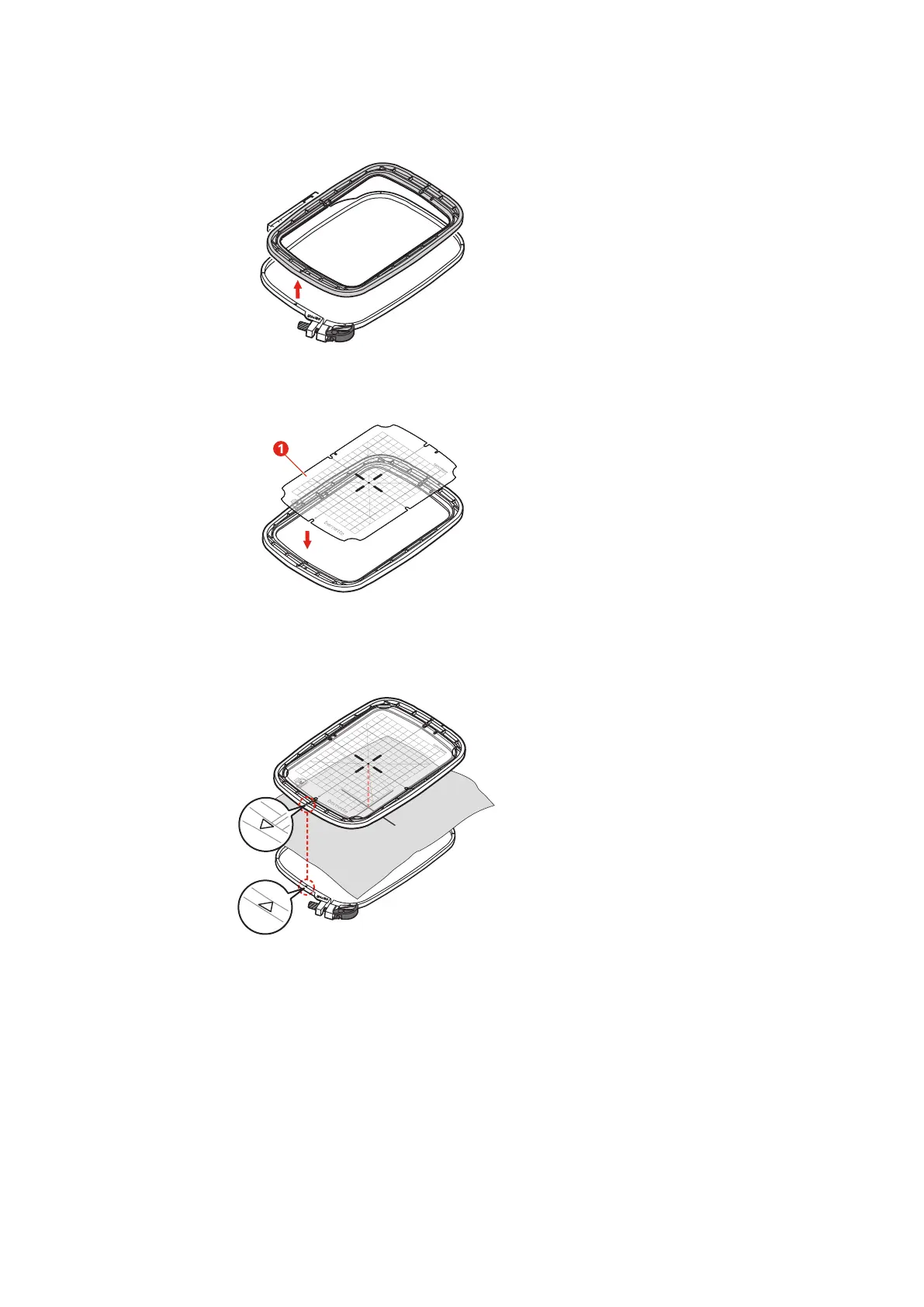

> Remove the inner hoop.
> Place the template (1) in the inner hoop, so that the bernette logo is aligned with the arrow marking at
the front edge so that it clicks into place.
> Place fabric under the inner frame so that it is at least 2 cm above the hoop.
> Align the center of the embroidery design with the center of the template.
> Place the material and the inner hoop on the outer hoop, so that the arrow markings of both hoops are
aligned.
> Fit the hoops into each other so that the material does not move.
> Hoop the fabric tautly in the embroidery hoop.
> Close the quick release device (2). If necessary, tighten screw (1).
> The inner hoop should protrude about 1 mm on the underside, this prevents the hoop from sticking to
the stitch plate.
> The quick release device (2) is for changing the same type (thickness) fabric easily and quickly.
