Bernette DECO B70 - Attaching the Hoop to Module

Embroidery preparation
42
2022-08 EN 5020070.40A.04

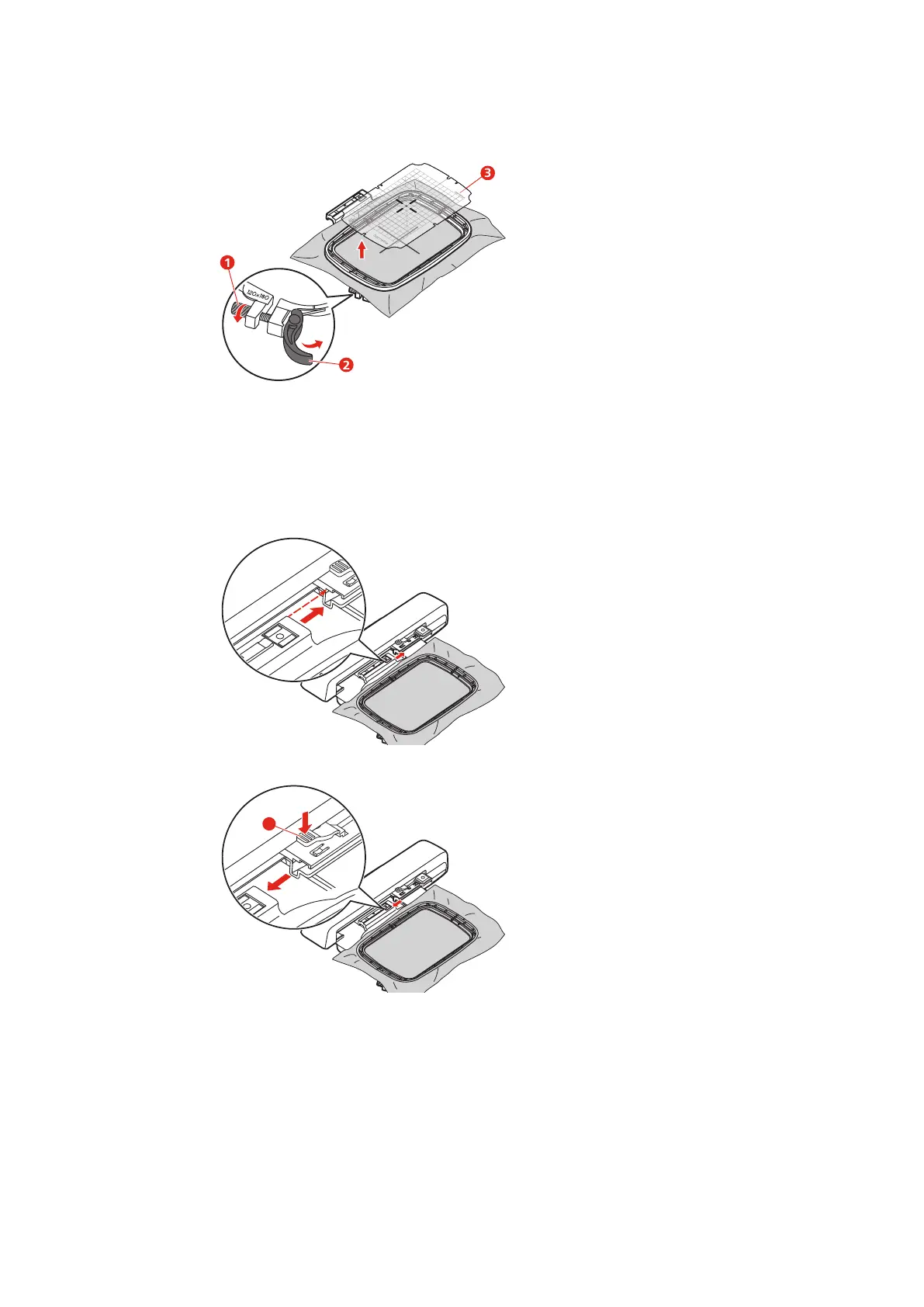

> Remove the template (3) from the hoop.
1
3
2
Attaching the Hoop
> Raise the needle.
> Raise the embroidery foot.
> Position the hoop below the embroidery foot.
> Push the embroidery hoop into the embroidery module until it clicks into place.
– The hoop is attached.
> To remove the hoop, press the securing lever and pull the hoop backwards.
1
