- The length of the drive shaft may need to be adjusted to suit the tractor used with the sprayer.
- Here is the procedure to be followed once the sprayer has been hitched:
- Align the jaw of the universal joint with the shaft of the tractor's power-take off.
- Separate the two half universal joint drive shafts and couple them to the corresponding shaft, putting the
female protector on the tractor side.
- Present the two half universal joint drive shafts side by side.
- Mark and cut if necessary, being sure to leave a 10 mm clearance between the end of the tube and the
heel of the jaw.
-Carefullyledownthetwotubes.
- Grease the contact surfaces.
- Using a hack saw, cut the protectors to the same length as the half universal joint drive shafts, which should
allow the half drive shafts to stick out 40 mm in relation to their protectors in the operating position. For
your safety, the two half universal joint drive shafts must have a minimum covering of 300 mm.
-Retthedriveshaftreadyforuse.
- The sprayers are delivered set at narrow track.
- To adjust the track:

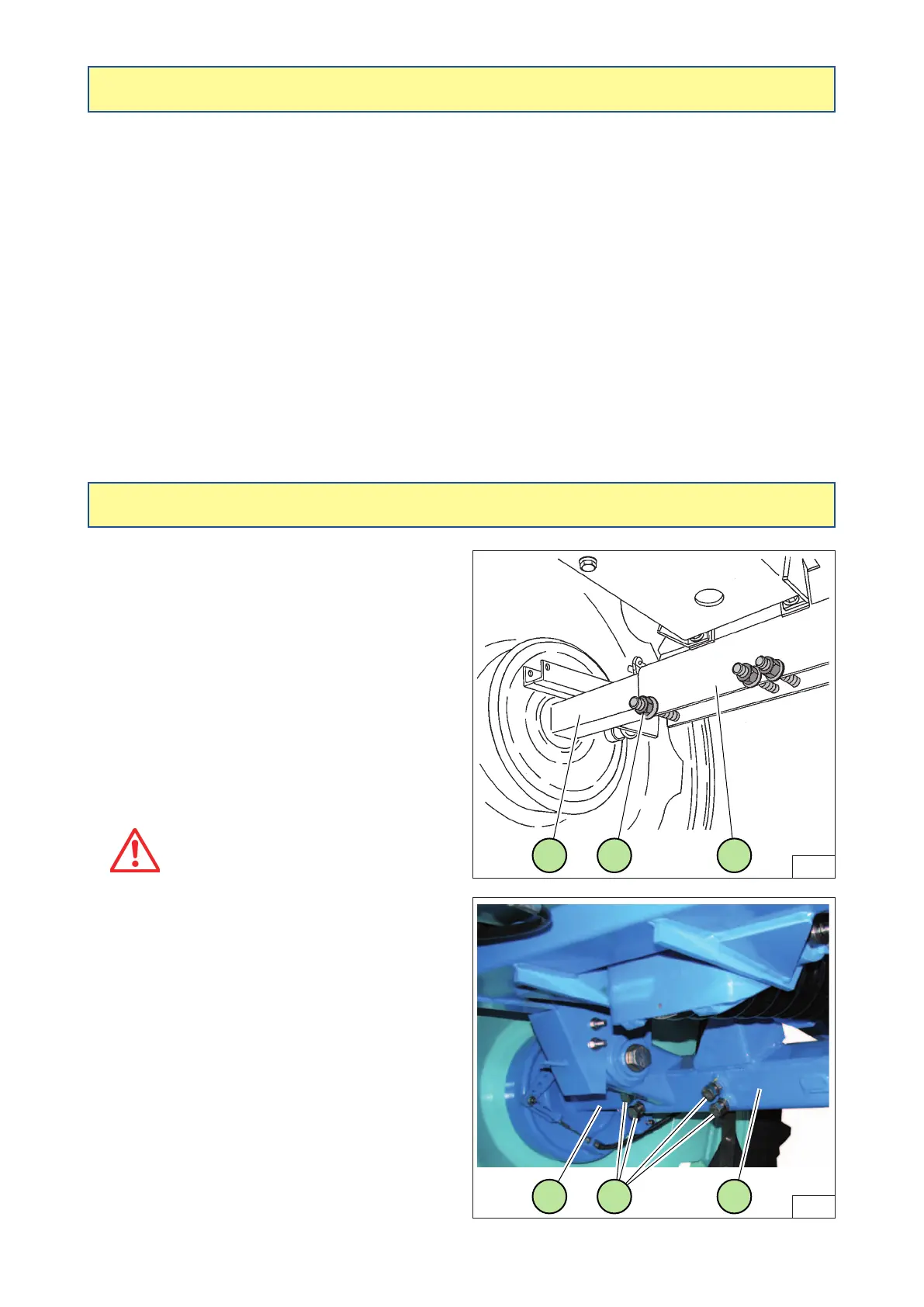

Case TRACKER (gure1):
- Once the nuts (2) are unlocked, slide the semi-
axles (1) in the girder (3).
Case TRACKER-S (gure2):
- Once the screws and nuts (2) are unlocked, slide
the semi-axles (1) in the girder (3).
Then in the 2 cases:
- Measure the track (according to that of the tractor
and the type of crop).
IMPORTANT:
The tyres must be at equal distance in
relation to the sprayer's centre axis.
-Tightenwellthenuts(2)(gure1)orthescrews
andnuts(2)(gure2):
Tightening torque = 240 Nm.
