Berthoud TRACKER User Manual

14 82.503 TRACKER / TRACKER-S D.P.A
2
1
5
4
2
3
1
-A parking brake (2)(gure 5) is positioned onthe
right-hand side of the sprayer.
- From the tractor cab, you can immobilise the sprayer
by using the rope (1) linking the brake control lever.
- Couple the sprayer’s drawbar to the tractor hook or coupling pin. The sprayer must be horizontal.
- Attach the end of the drive to the power take-off.
- Attach the small chain of the drive shaft protectors to the position intended for it.
- Raise the jackleg.
- Connect the hydraulic connections.
- Connect the electric connections.
- Release the parking brake.
-Hookthesmallrope(1)(gure5)tractorside(toimmobilisethesprayerincasethecouplingbreaks).

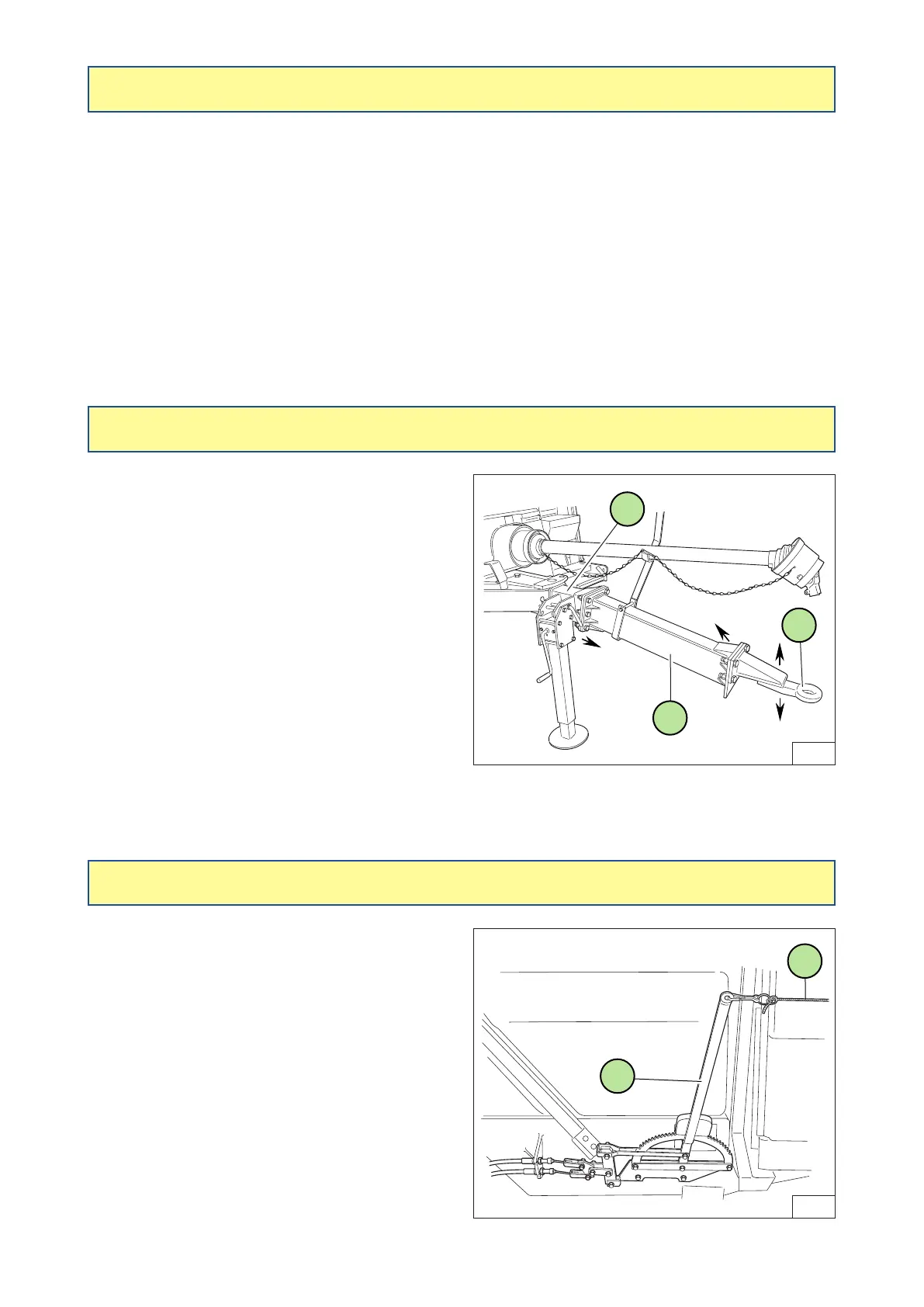

HITCHING THE SPRAYER TO THE TRACTOR
PARKING BRAKE
-Thisdrawbar(gure4)has4settingsfortheeye(1),
providing a total travel distance of 180 mm.
- Adjustments are made by moving the position
of the eye (1) in relation to the spacer bar (2):
(2 positions).
-Tocongurethedrawbarinpositions3and4:
 ▪Removetheeye(1).
 ▪Removethespacerbar(2)fromthedrawbar(3).
 ▪Turnthedrawbar(3)180°.
 ▪Turnthespacerbar(2)lengthwise.
 ▪Replace the eye (1) on the spacer bar (2) for
positions 3 and 4.
ADJUSTABLE HEIGHT DRAWBAR (Option)
