Berthoud TRACKER - Descriptive Plate

8 82.503 TRACKER / TRACKER-S D.P.A
The "Kerb weight" and "Gross
vehicle weight" boxes use the data
in the table below
- The location of the descriptive plate on your sprayer is indicated on the view in page 7.
-Thebox"Type"ismadeupoflettersandgures.
- Example: TRM A 32 AX 24
24 = Width 24 metres (28 = 28 metres)
AX = AXIALE boom (RD = RLD boom)
32 = Rated capacity of the tank 3,200 litres
A = D.P.A - D.P.A TELEVOLUX regulation
TRM = TRACKER MAJOR sprayer (TRR = TRACKER RACER,
TRS = TRACKER R-XS)

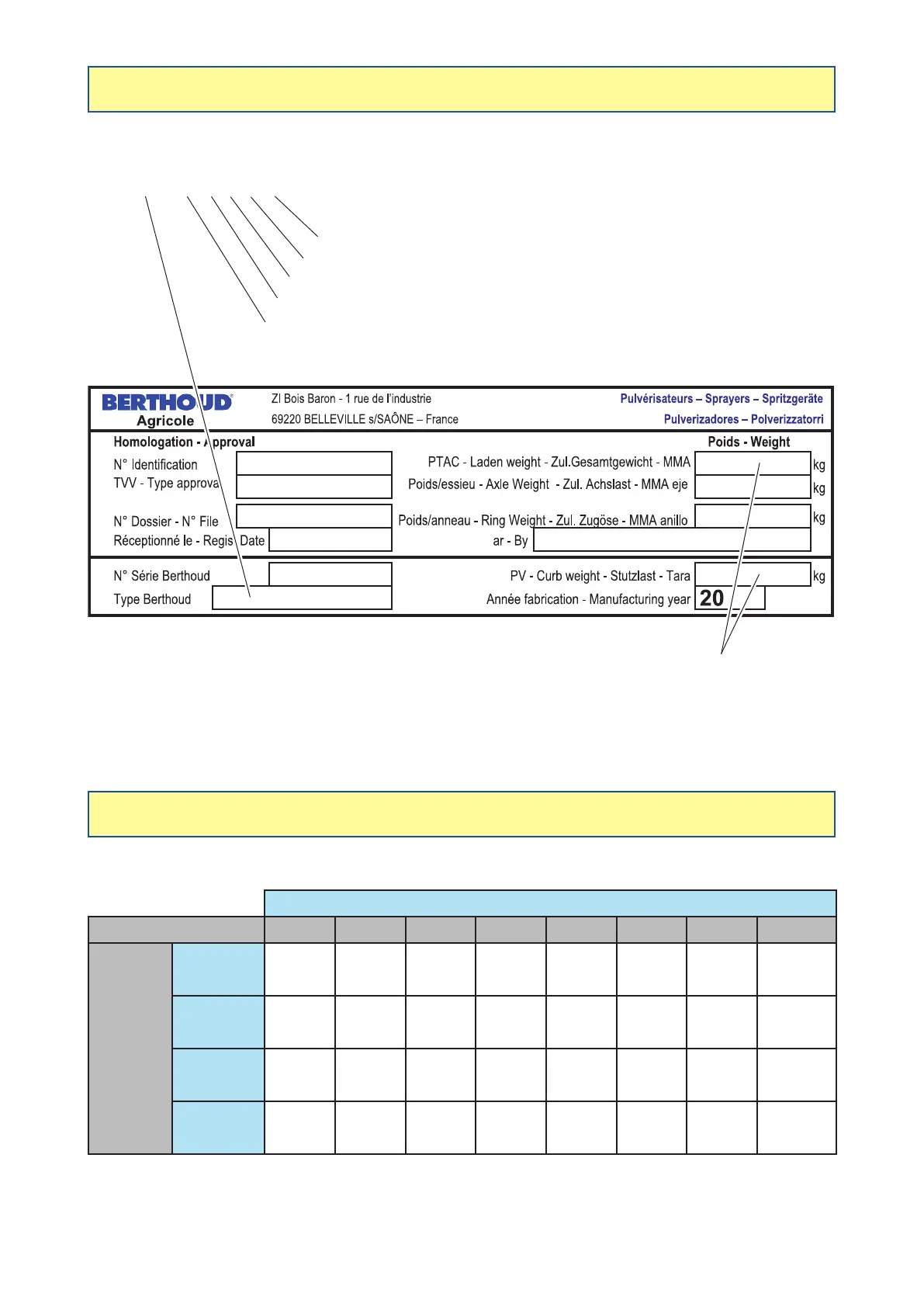

DESCRIPTIVE PLATE
TABLE OF WEIGHTS (in kg)
The data below are valid for France only (see the document DREAL).
BOOMS
SPRAYER RLD 18 RLD 20 RLD 21 RLD 24 Axiale 24 Axiale 28 Axiale 30
Axiale 32/33
TRACKER
3200
Kerbweight 2,600 2,623 2,635 2,655 3,115 3,240 3,550 3,580
Gross
vehicleweight
6,425 6,455 6,470 6,495 6,955 7,025 7,390 7,410
Gross
vehicleweight
Axle
5,105 5,130 5,140 5,160 5,525 5,580 5,870 5,890
Gross
vehicleweight
Drawbar
1,320 1,325 1,330 1,335 1,430 1,445 1,520 1,520
Theseweightsare understoodasin the heaviestconguration of themachinery(options, tires,regulation,
suspensions).
