Berthoud TRACKER User Manual

82.503 TRACKER / TRACKER-S D.P.A 17
Capteur
de
vitesse
Débimètre
-
+
0
0
0

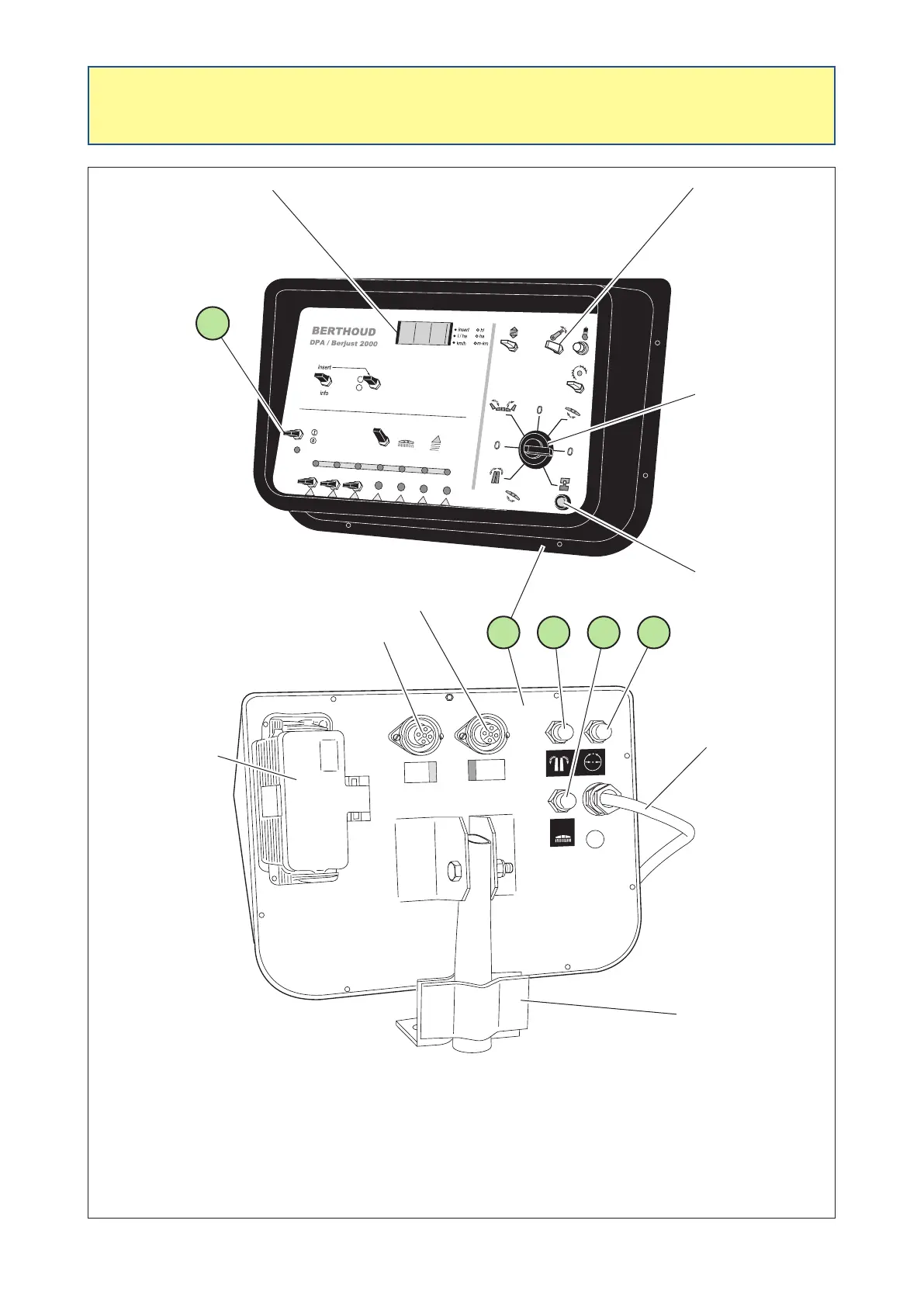

PRESENTATION OF THE D.P.A CONTROL BOX
WITH BERJUST (Option)
NOTE:
- Fuse: The control box (2) is protected by 3 type fuses Ø 5 mm x 20 mm:
- 10 Amps for the boom control board (item 3),
- 10 Amps for the boom spraying sections control board (item 4),
- 3.15 Amps for the BERJUST board (item 5).
BERJUST 2000 monitor
(See manual No. 82.441)
24 or 42 pin plug
Speed sensor plug
Flowmeter plug
Control box
power switch
1
V o l u x p u m p
engage/disengage
indicator light
Power cable
(battery, 12 Vdc)
Control panel support
to be secured in the
tractor cab
AXIALE S.E.H
bo o m c o n t r ol
selector
(See manual
No. 82.438)
Switch and push-
bu t t on o f th e
options
2 3 4 5
