GENERATOR AND STARTER CLUTCH
T
IP

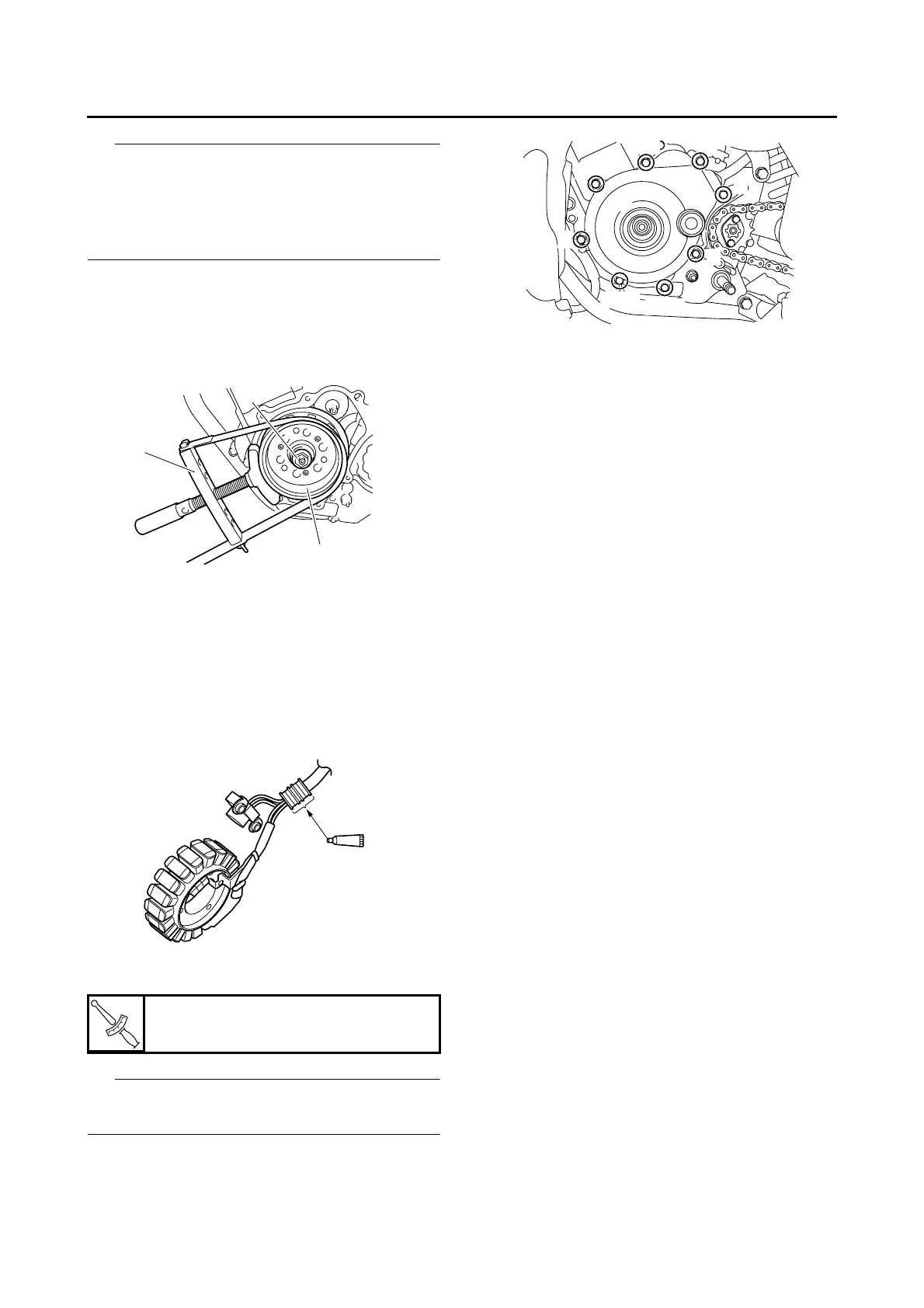

• While holding the generator rotor “2” with the
sheave holder “3”, tighten the generator rotor
nut.
• Do not allow the sheave holder to touch the
projections on the generator rotor.
3. Apply:
• Sealant
(to the crankshaft position sensor/stator as-
sembly lead grommet)
4. Install:
• Generator cover
T
IP
Tighten the generator cover bolts in the proper
tightening sequence as shown.
T
R
.
.
Generator cover bolt
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
1
3
2
1,6
7
8
9
5
4
3,11
2,10
