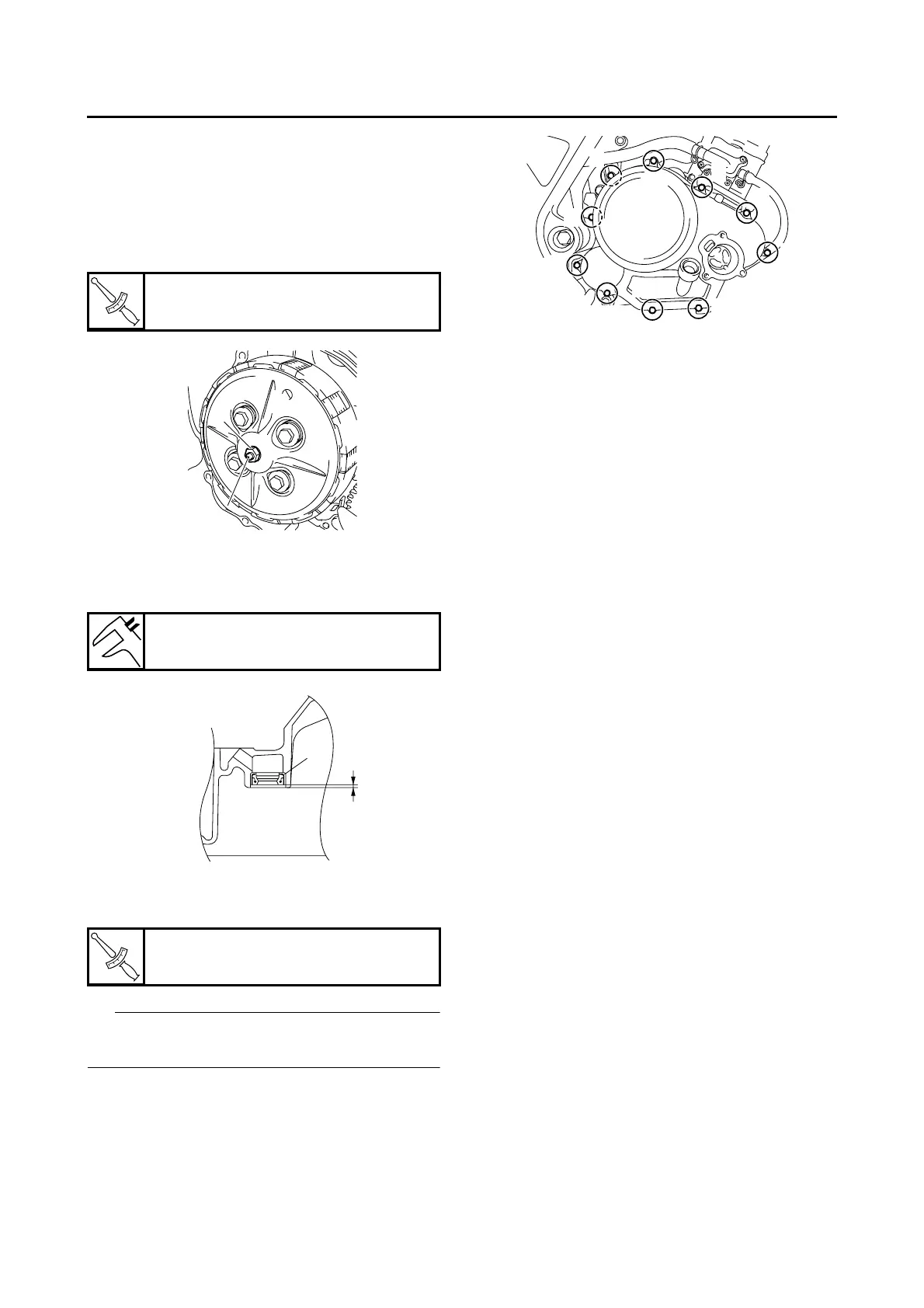

CLUTCH
With the clutch push lever fully pushed in di-
rection c, turn the short clutch push rod 3
in or out until the projection a aligns with the
mark b.
Hold the short clutch push rod to prevent it
from moving, and then tighten the locknut to
specification.
▲▲▲▲▲ ▲▲▲▲▲ ▲▲▲ ▲▲▲ ▲▲▲
10.Install:
Oil seal 1
11.Install:
Clutch cover
T
IP
Tighten the clutch cover bolts in the proper tight-
ening sequence as shown.
12.Adjust:
Clutch cable free play
Refer to ADJUSTING THE CLUTCH CABLE
FREE PLAY on page 3-12.
T
R
.
.
Short clutch push rod locknut
8 Nm (0.8 m·kgf, 5.8 ft·lbf)
Installed depth a
1.41.9 mm (0.0550.075 in)
T
R
.
.
Clutch cover bolt
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
2
33
1
a
8
1,7
3,13
2,12
6
9
5
11
10
4
