Beta RR 125 LC User Manual

ELECTRICAL COMPONENTS
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼

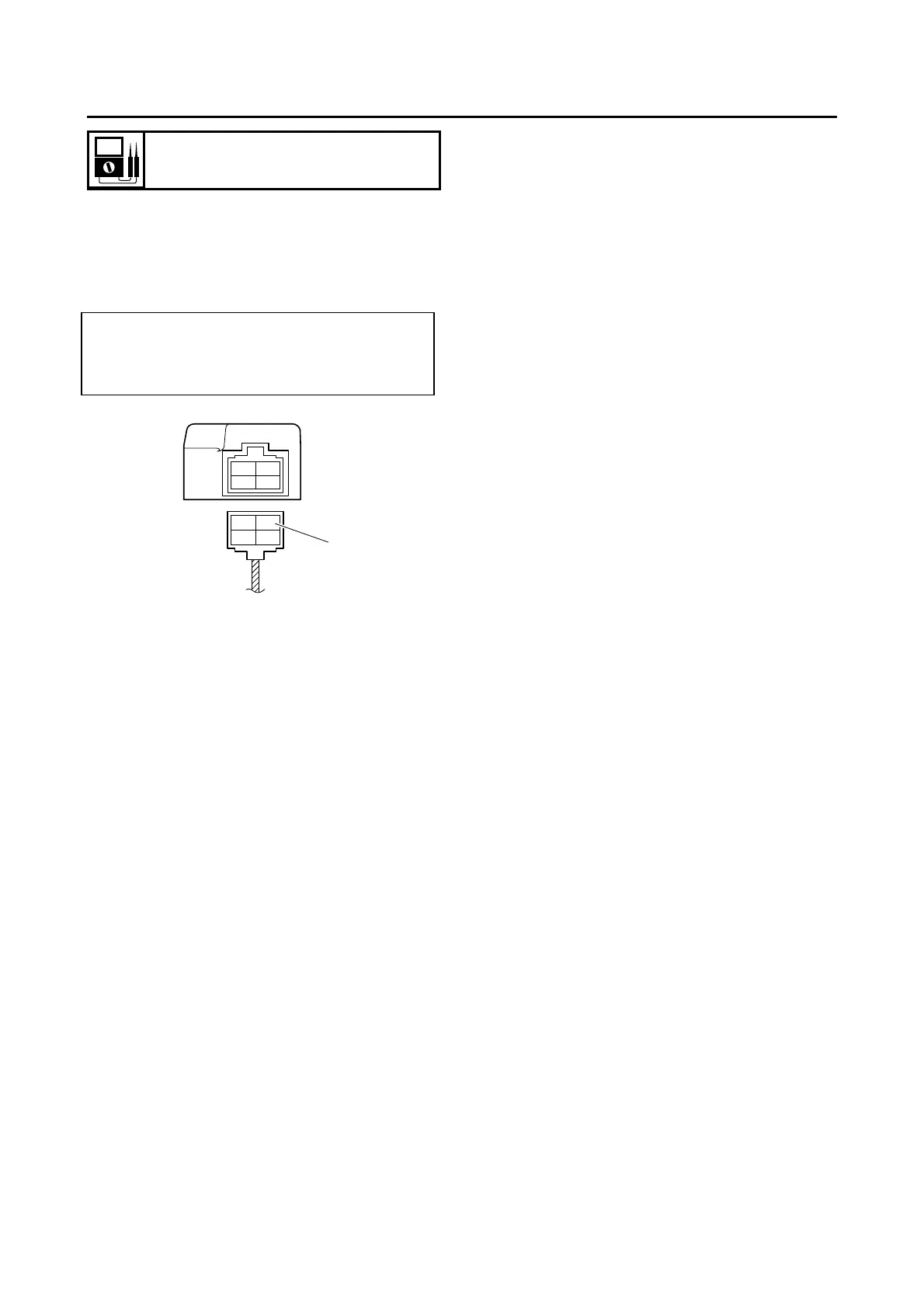

a. Set the engine tachometer to the spark plug
lead.
b. Connect the pocket tester (DC 20 V) to the
rectifier/regulator coupler as shown.
c. Start the engine and let it run at approximate-
ly 5000 r/min.
d. Measure the
charging voltage.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
Charging voltage
14 V at 5000 r/min
• Positive tester probe →
red “1”
• Negative tester probe →
ground
W
RW
W
1

Beta RR 125 LC Specifications

General

Displacement	124.8 cc
Fuel System	Electronic Fuel Injection
Ignition	Electronic
Lubrication	Wet sump
Clutch	Wet multi-disc
Transmission	6-speed
Final Drive	Chain
Seat Height	920 mm
Fuel Tank Capacity	7.5 liters
Starting System	Electric
Front Suspension	Hydraulic fork with ø41 mm shaft
Front Brake	260 mm disc
Rear Brake	Single disc, 220 mm
Engine Type	Liquid-cooled, 4-stroke, single cylinder
