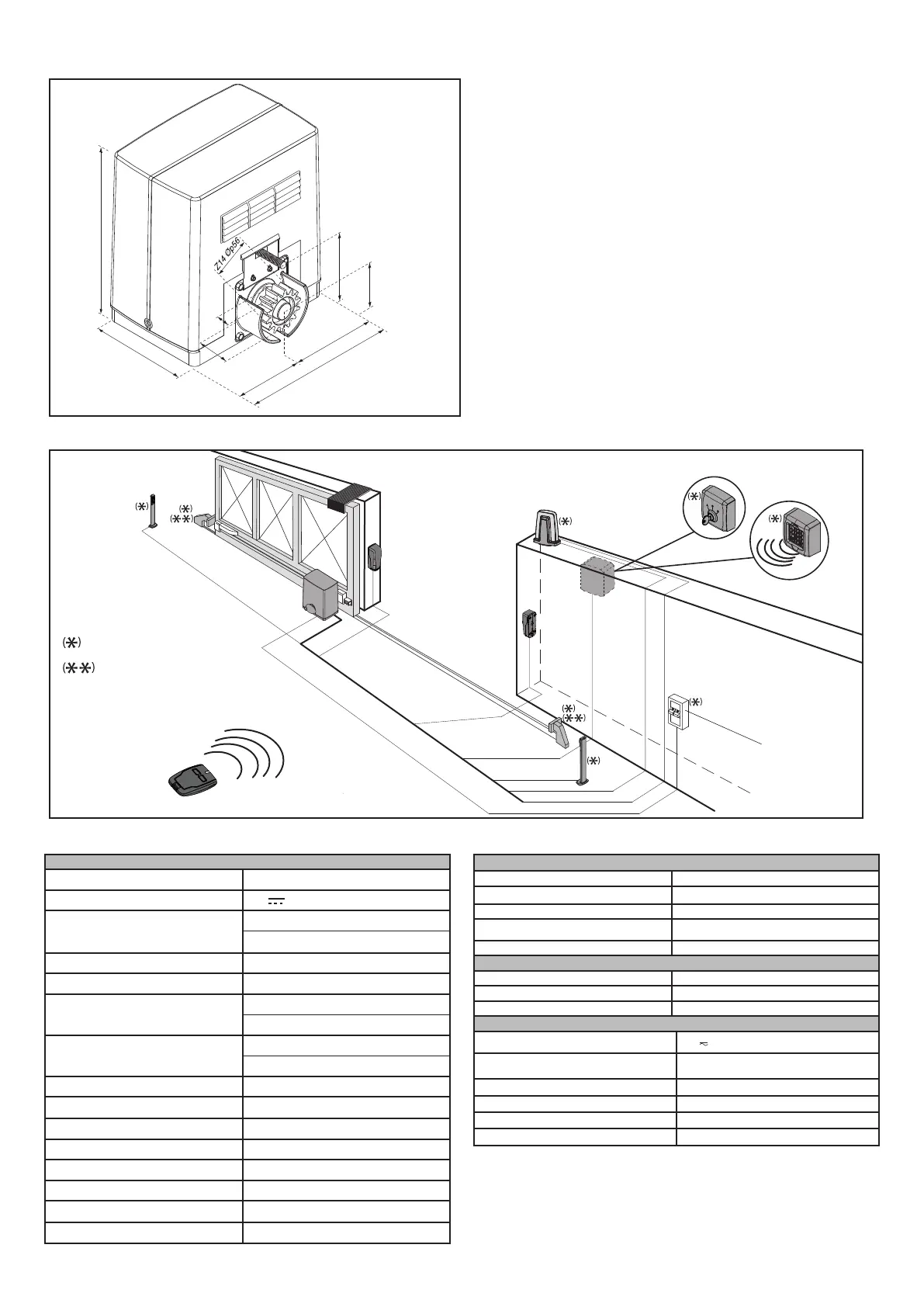

BFT IANUS BT 300 KIT - Dimensions; Installation Diagram; Technical Specifications

IANUS BT 300 KIT - IANUS BT 500 KIT - 29
D812457 10550_02
249
131
118
160
265
122
50
22
43
3x1.5mm
2
2x0,75 mm
2
3x1,5 mm
2
2x0,75 mm
2
5x0,75 mm
2
RG58
2x1,5 mm
2
5x0,75 mm
2
3x0,75 mm
2
DIMENSIONS
INSTALLATION DIAGRAM
STOPS
SPECIFICATIONS
MOTOR
Power supply single-phase 230V ±10%, 50Hz
Motor
24V
Power consumption
50W (IANUS BT 300 KIT)
70W (IANUS BT 500 KIT)
Pinion module 4mm (14 teeth)
Leaf speed 6m/min
Max� leaf weight
300kg (IANUS BT 300 KIT)
500kg (IANUS BT 500 KIT)
Max� torque
10 Nm (IANUS BT 300 KIT)
20 Nm (IANUS BT 500 KIT)
Impact reaction Electronic torque limiter
Lubrication
Lifetime greased
Manual operation Knob-operated mechanical release
Type of use intensive
Environmental conditions from -20°C to 55°C
Protection rating IP24
Noise level
<70dBA
Operator weight 7kg (≈70N)
CONTROL UNIT
Accessories power supply 24V ~ (180 mA)
Fuses See Fig� WIRING DIAGRAM
Built-in Rolling-Code radio-receiver frequency 433�92MHz
Max� n° of transmitters that can be memorized 63
Partial opening distance 1m
REMOTE CONTROL
Frequency 433�92MHz
Battery Model 23A 12V
Range 50 / 100 m
PHOTOCELLS
Supply voltage 24V
Current demand
TX: 10mA
RX: standby 7mA / max� 20mA
Contact capacity 30V, 1A
Protection rating IP55
Operating temperature -20/+55°C
Operating range 30 m (less in case of fog/rain)
Not provided
