BFT IANUS BT 300 KIT - Limit Switch Adjustments (Motor Installed on the Right)

40 - IANUS BT 300 KIT - IANUS BT 500 KIT
D812457 10550_02
1 2 3 4
ON
5 6 7 8 9 10
VSAFE ~(+)
VSAFE ~(-)
24V ~(+)
0V(-)
25W max.
123456789101112131415161718192021222324252627
OPEN
COM
SWC
SWO
COM COM
STOP PHOT 1 PHOT 2
FAULT PHOT 1 FAULT PHOT 2
NC NC NO NC NC NO NC NO
ANT
START
NO
1 2 3 4
ON
5 6 7 8 9 10
(90°)

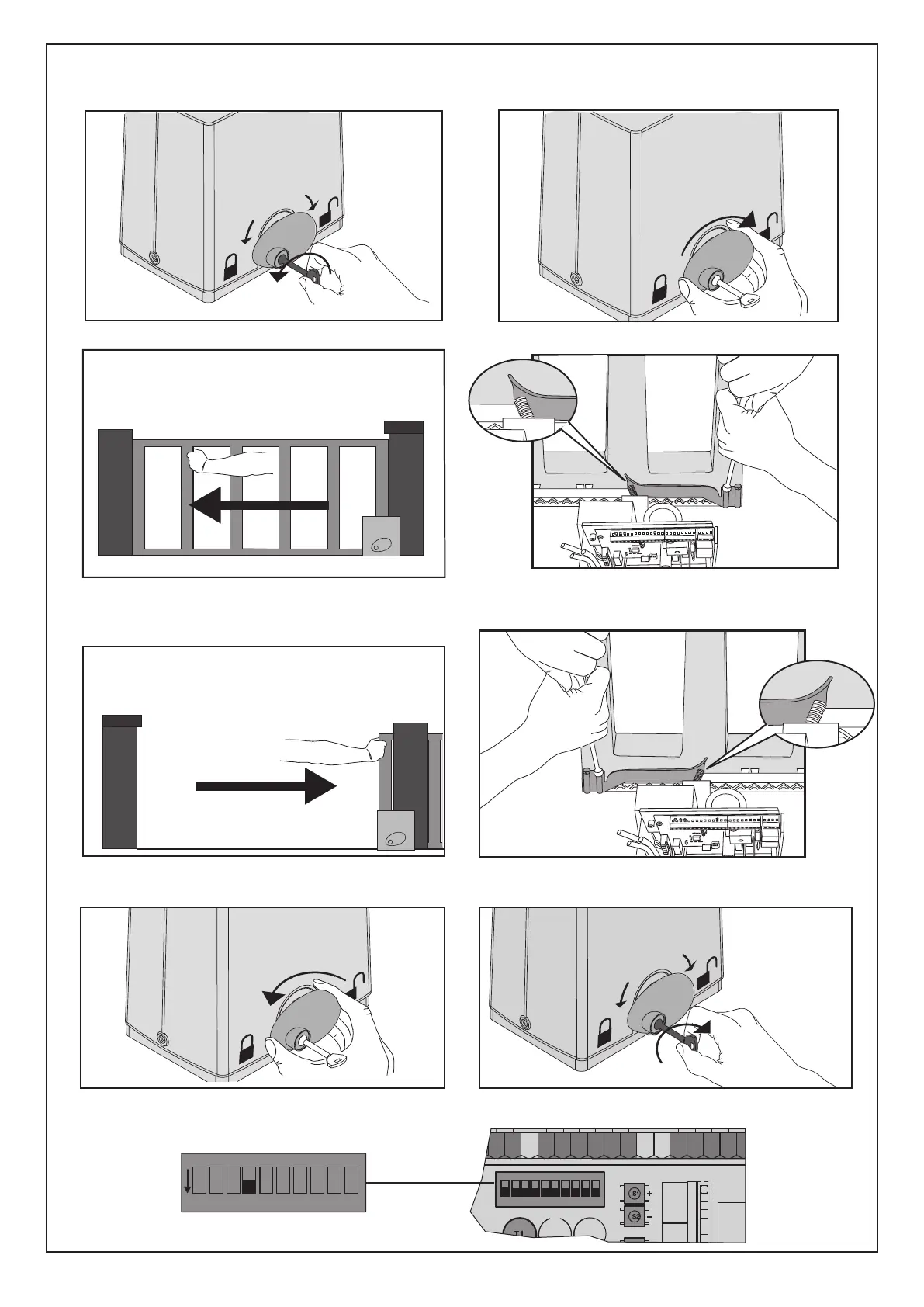

LIMIT SWITCH ADJUSTMENTS (MOTOR INSTALLED ON THE RIGHT)
Release the motor�
Close the gate, secure the CLOSE limit switch rod�
Open the gate and secure the other OPEN limit switch rod�
Lock the motor�
Set DIP SWITCH no� 4 to OFF as illustrated:
