BFT IANUS BT 300 KIT - Correct Motor Positioning on Rack; Fitting the Rack; Motor Positioning; Mounting the Rack

IANUS BT 300 KIT - IANUS BT 500 KIT - 33
D812457 10550_02
>100
25
>25
210mm
210mm
210mm
NO
OK
R1
10 mm
6,4
V1
6
30
2 mm
Ø5,5

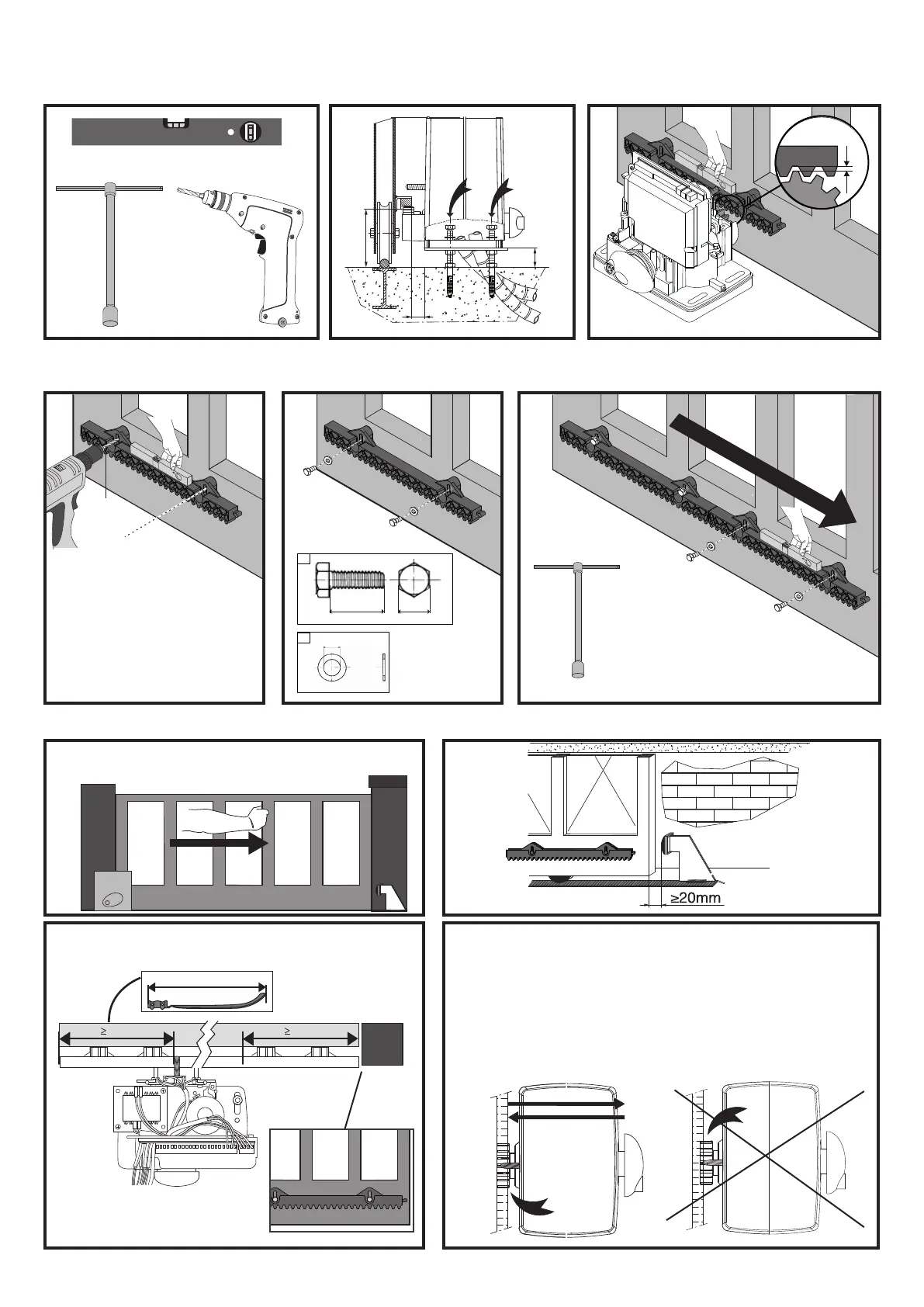

FITTING THE RACK
After installing the motor, place the rack over the pinion leaving a 2 mm gap�
MOUNTING THE RACK
Secure the rack modules drilling holes through the slots using a 5�5 diameter drill bit and secure the screws� Warning: the rack must be level�
Close the gate and secure the other rack modules until the entire gate length is covered� Make sure the mechanical stops are installed
Move the motor under the rack and illustrated�
CORRECT MOTOR POSITION
ON RACK
MOTOR POSITIONING
The
mechanical
stops must
already be
installed
