BFT IANUS BT 300 KIT - Fitting the Photocells

34 - IANUS BT 300 KIT - IANUS BT 500 KIT
D812457 10550_02
105 mm
43 mm
37 mm
min. 1m
RX
TX
TX
RX
OK KO
PG11
max 24 mm
22
PAIR 1
PAIR 2
(OPTIONAL)
DIMENSIONS CORRECT ALIGNMENT
TO PASS WIRES FROM THE WALL break the back hole
OR break the FRONT hole and insert the WIRE CLAMP
TO PASS WIRE THROUGH THE EXTERNAL RACEWAY
In both cases, now fold the plugs to close the holes:

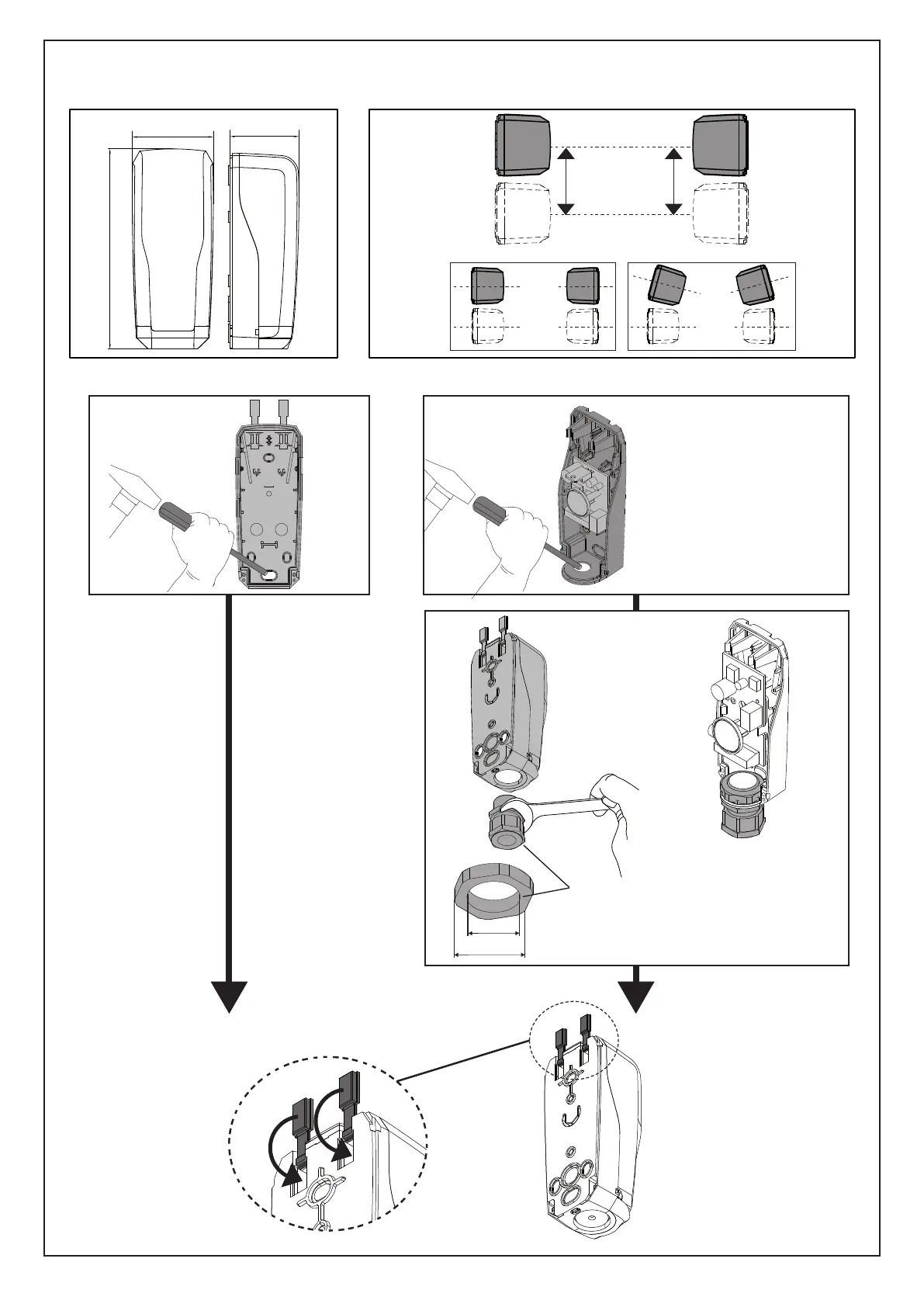

FITTING THE PHOTOCELLS
Not provided
