BIFFI ICON-040 - Identification of Entries

December 2019
141
Installation, Operation and Maintenance Manual
VCIOM-08500-EN
Appendix
Appendix
C.7.1.1 Models and Temperature
ICON-010 and ICON-020 from -60°C to +85°C (from -76°F to +185°F)
C.7.2 Identication of Entries
The ICON3000 electric actuator is equipped with 5 entries (3 are standard; the 4th and
5th are supplied upon request).
With reference to Figure C-2, the thread form/size for each entry is as follows:
Table C-4.

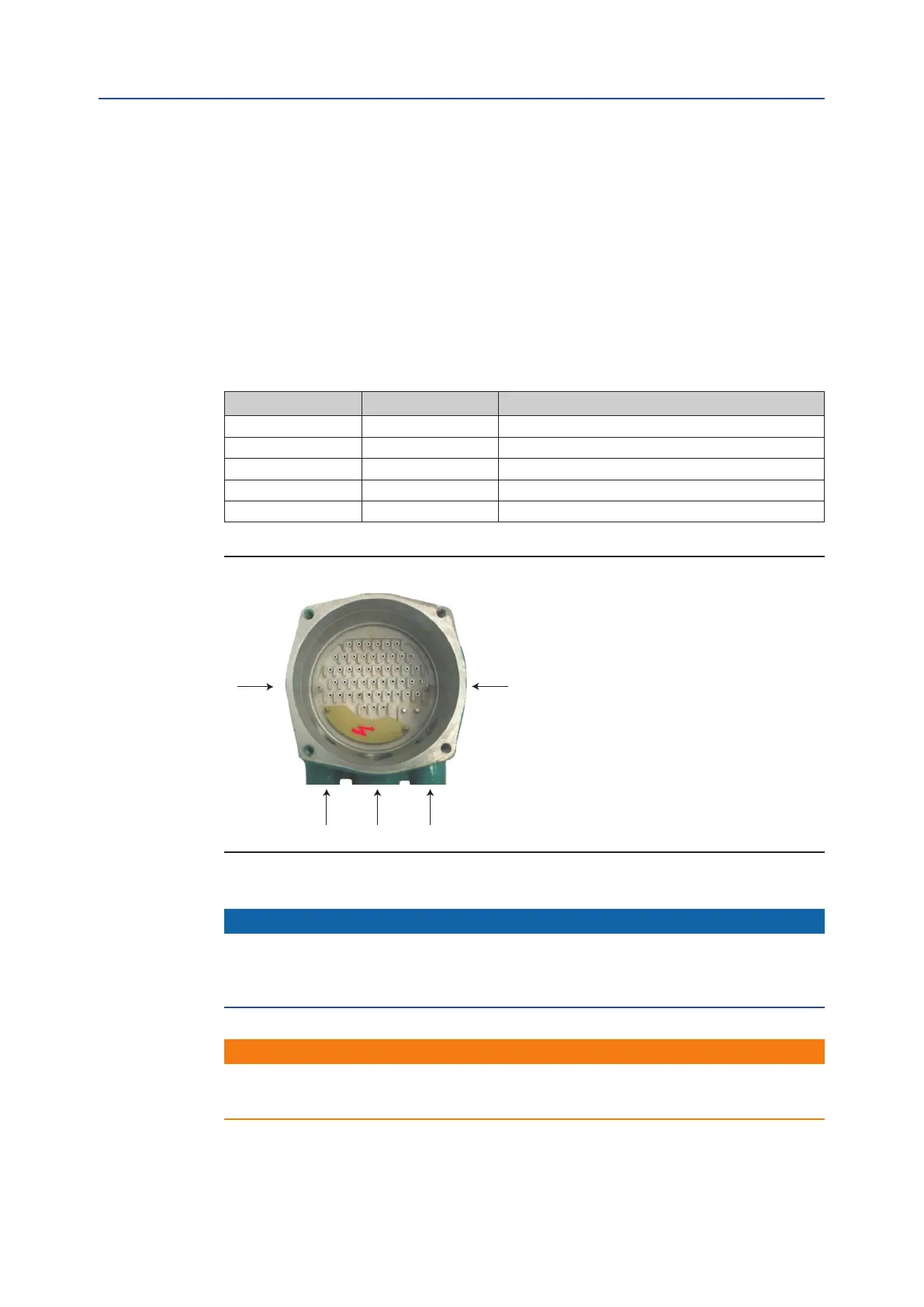

Figure C-2 Base Actuator
NOTICE
When alternative entries according to ISO 965 are used, indication of the dimensions
is imprinted on the adapter bush or directly on the housing when ISO 965 entries are
obtained by machining the housing.
 WARNING
Unused entries may remain unmachined or must be plugged with a certied plug suitable
for the subject environment.
Entry NPT size Alternative (Metric size ISO 965)
1 1" M32x1.5
2 1 1/2" M40x1.5
3 1" M32x1.5
4 (optional) 3/4" M25x1.5
5 (optional) 3/4" M25x1.5
6
4
1 2 3
5
XTE3000
