BIFFI ICON-040 - E.2 Proper Installation Instructions; E.2.1 Marking Interpretation

December 2019
158
Installation, Operation and Maintenance Manual
VCIOM-08500-EN
Appendix
Appendix
E.2 Instructions for Proper Installation
 WARNING
Before installation, it is mandatory to check if the nameplate associated with the
extension for additional entry species the appropriate degree of protection and ambient
temperature limits as requested by the rules applicable to the plant/location where the
ICON3000 is installed.
Installation in environments with the presence of an explosive atmosphere not covered
by the specied grade of protection, or in environments that could reach a temperature
higher than the maximum specied on the label, will invalidate the safety warnings and
the warranty.
NOTICE
Check if the label, as the example here above, is xed on the unit and completed with all the
appropriate information.
E.2.1 Marking

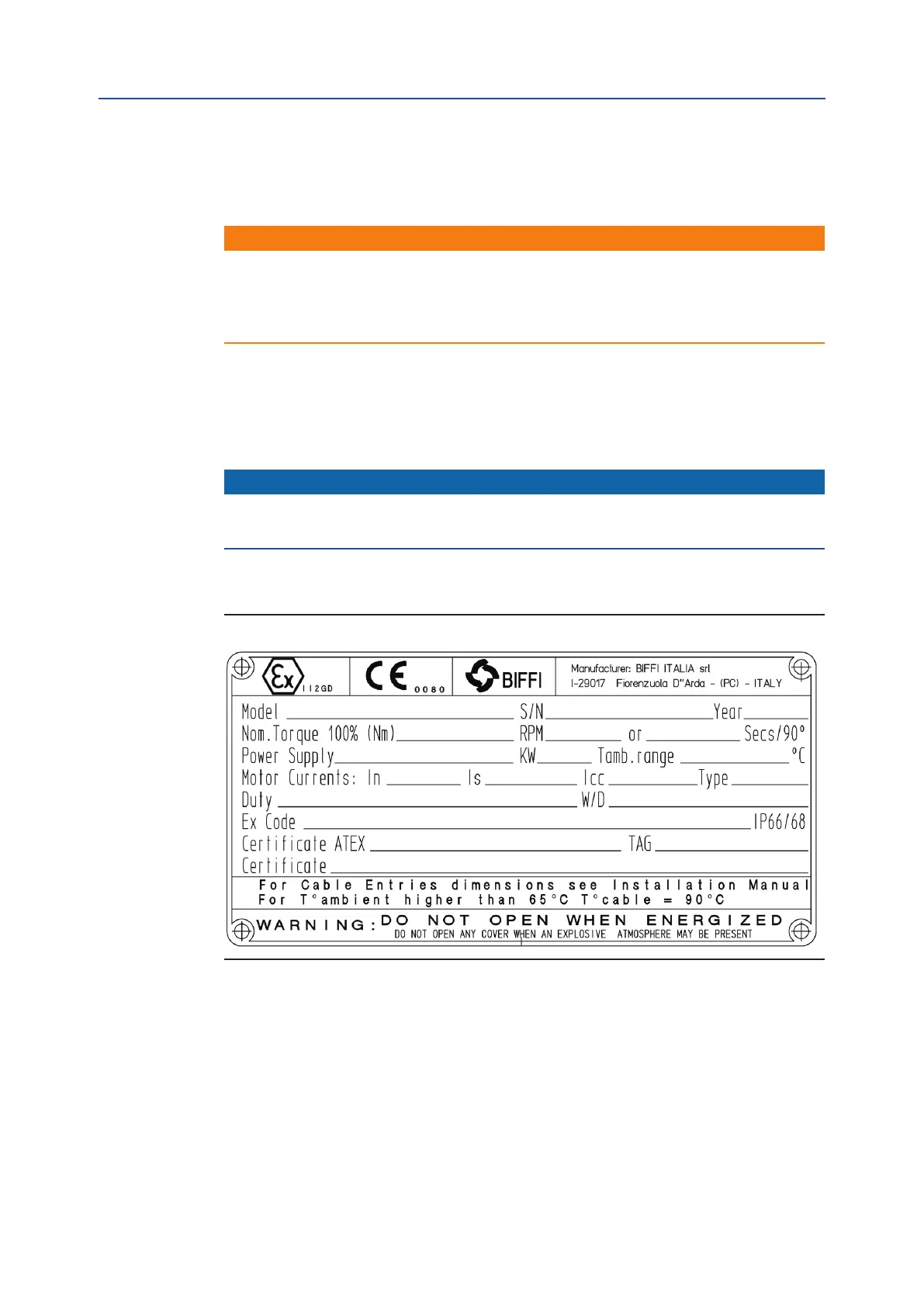

Figure E-4 Template of the label for ICON3000
IECEx INE YY.NNNNX = IECEx reference certicate (CoC)
INERIS YY ATEX NNNNX = ATEX reference certicate
0080 = Notied body for ATEX quality assurance (INERIS)
II = Group II (surface industries)
2 = Category 2 apparatus
G = Explosive atmospheres caused by gas, mists, or vapors
D = Explosive atmospheres caused by gas dusts
IP66/68 = Degree of protection
