Installation
Section 3: Installation

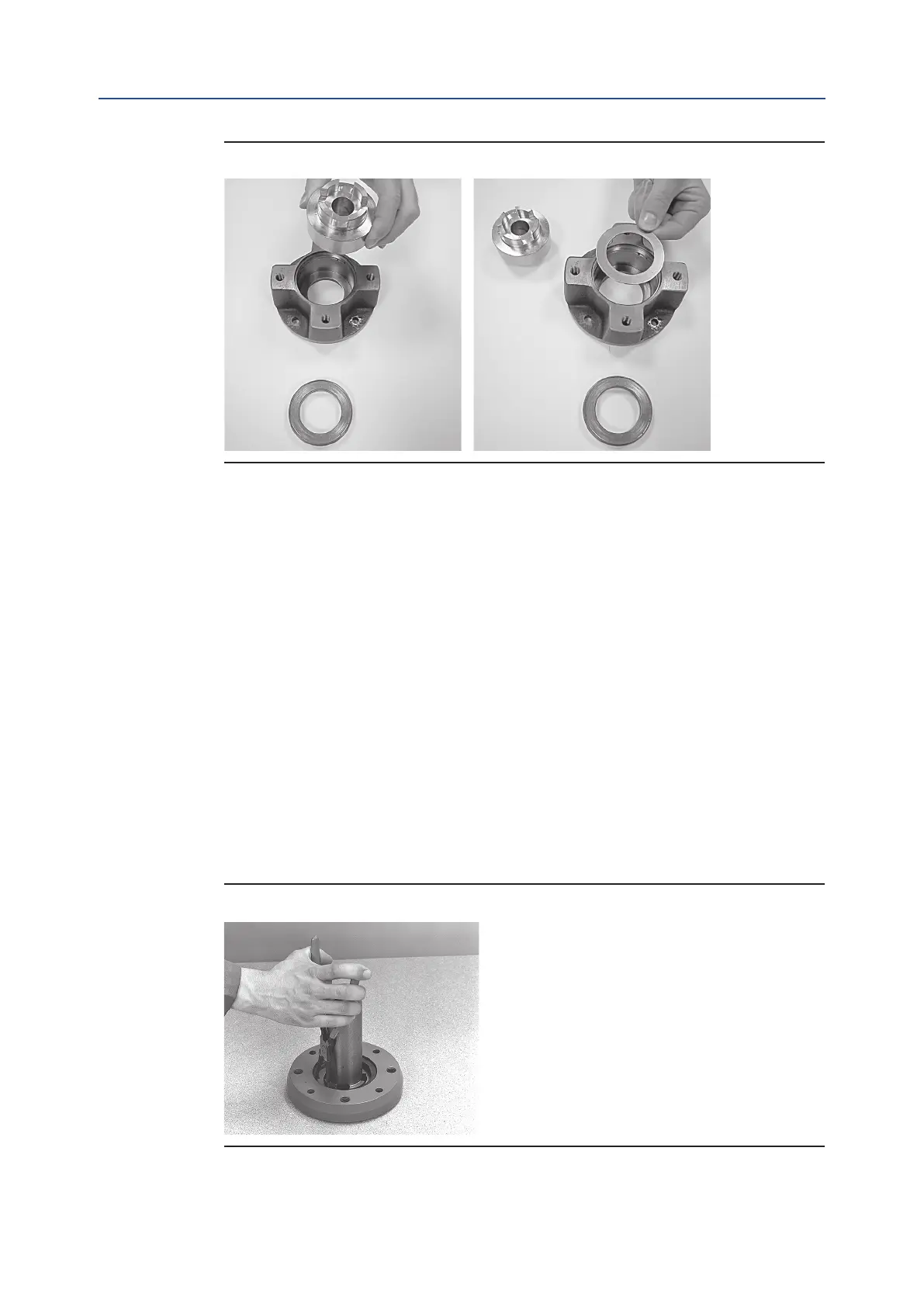

Figure 12
The internal thrust washer will remain at the bottom of the block housing.
The bore can now be machined in the bushing to suit coupling requirements.
The same procedure is also used if maintenance becomes necessary.
3.2.2.2 Re-assembling the Internal Parts
It is advisable to wash the dismantled parts with a suitable solvent and dry them with
compressed air. Make sure that no metal lings or foreign bodies remain; spread a lm of
grease on all parts (for grease type, see Section 4, Lubrication). Proceed with assembly
of the internal parts by following the disassembly procedure in reverse order; tighten
the lower ring nut with thread sealant LOCTITE 270 or equivalent, and ensure that the
bushing still rotates freely. Attach the unit to the gear reducer as described further on.
3.2.3 Type “B3” and “B4” Coupling Blocks
3.2.3.1 Preparing the Bushing
Remove the mounting bolts of the coupling ange.
Figure 13
