BIFFI ICON-040 - Removing the Terminal Board Enclosure

December 2019
19
Installation, Operation and Maintenance Manual
VCIOM-08500-EN
Installation
Section 3: Installation

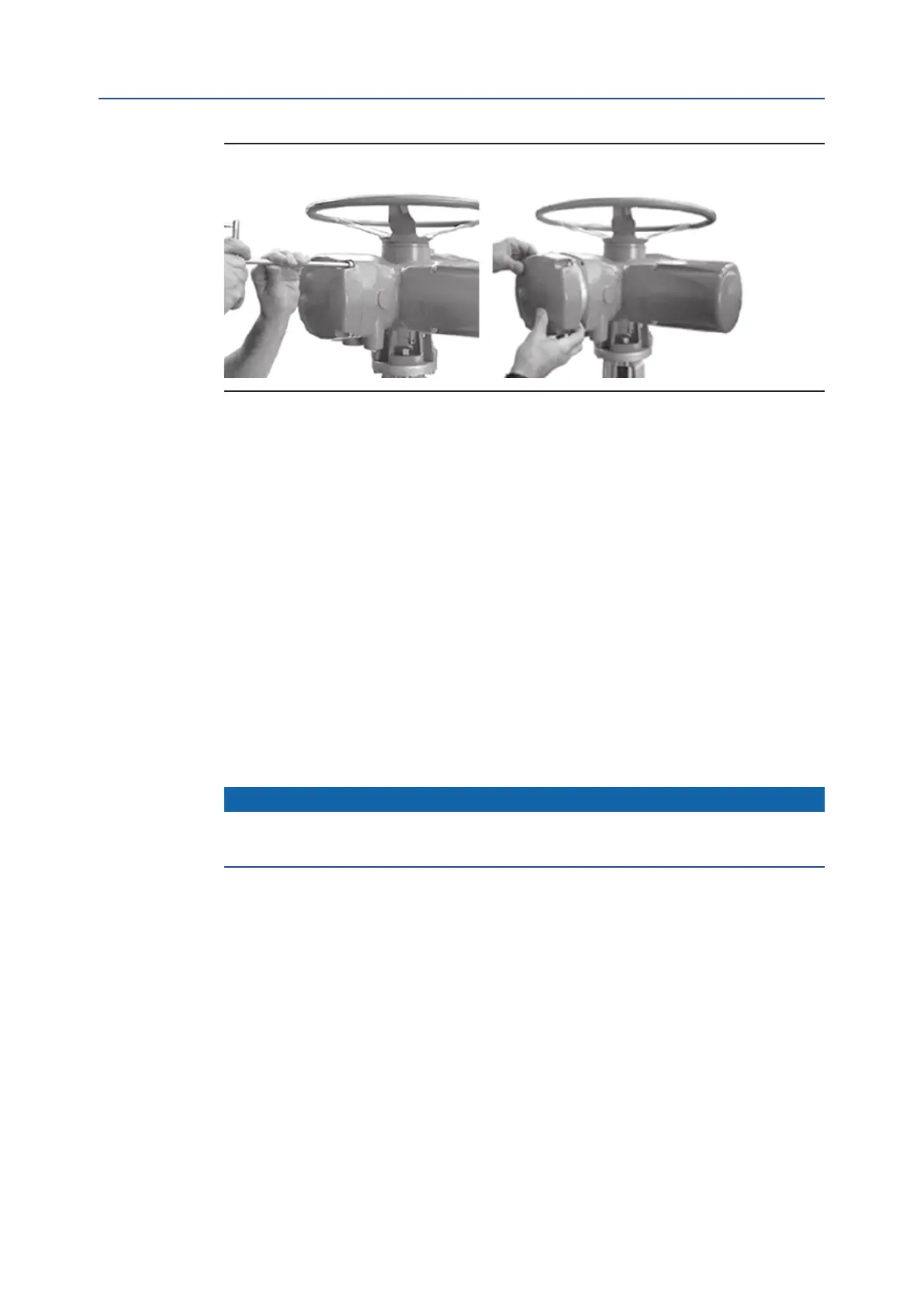

Figure 22
3.7 Removing the Terminal Board Enclosure
The sealing of cables and conduit entries should be carried out in accordance with the
relevant national standards or the regulatory authorities that certied the actuators.
This is especially true for units that are certied for use in hazardous areas, where the
method of sealing must be to an approved standard and cable glands, reducers, plugs,
and adapters must be approved and separately certied.
Standard cable entries (housing)
1" NPT, Qty 2
1-1/2" NPT, Qty 1
Optional: 3/4" NPT, up to Qty 2
On request, certied conduit entry adapters may be added
(Metric, Pg, Rc, ASA, etc.)
Remove the conduit entry plugs.
NOTICE
All accessories (including cable glands) must comply with approved specications
for the site requirements and be certied according to the standard directive.
To guarantee a weather-proof and explosion-proof t, screw the cable glands tightly
(at least 5 turns) and coat them with a thread sealant. The use of a thread sealant is
necessary in explosion-proof and weather-proof applications.
