Operating the ICON3000
Section 5: Operating the ICON3000
The signal levels are the following:
• Minimum ON signal > 20 V DC or 20 V AC (50/60 Hz).
• Maximum ON signal < 125 V DC or 120 V AC (50/60 Hz).
• Maximum OFF signal < 3 V.
• Minimum signal duration > 500 ms.
• Total current drawn from remote controls < 25 mA.

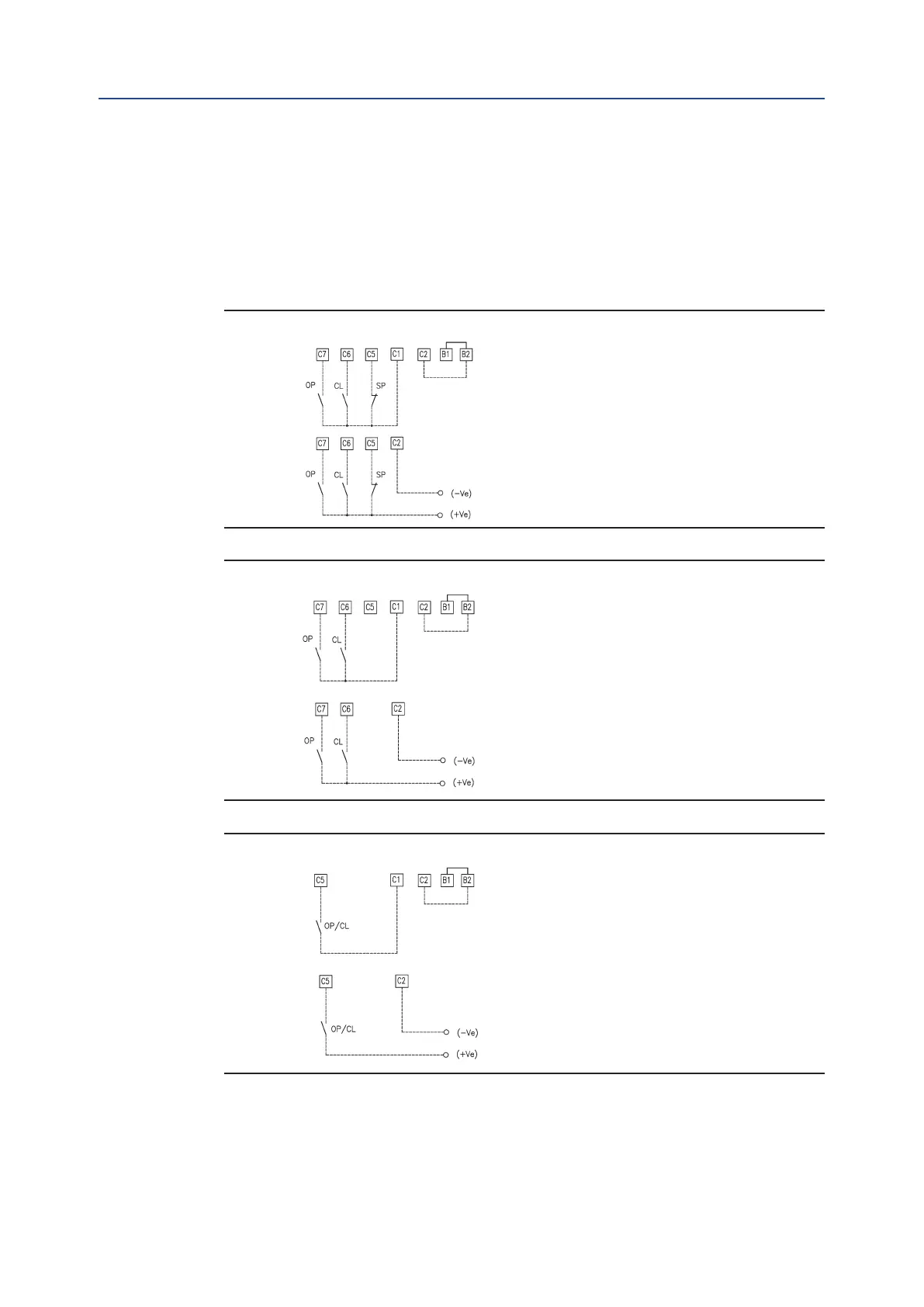

Figure 36
Figure 37
Figure 38
Option A1)
Option B1)
Option A2)
Option B2)
Option A3)
Option B3)
