3. DELIVERY AND INSTALLATION
Key
1.
9-pin male connector (JBIL) for platform scale connection (15-pin
male for digital load cells)
2.
9-pin female serial port connector (JCOM 1) for printer connection
3.
9-pin female serial port connector (JCOM 2) for connection of
various devices
4.
Data plate indicating voltage, frequency and fuse types
5.
Analogue output connection terminals (JVI)
6.
Input/Output connection terminals (JI/O)
7. Earth screw
8.
Male 3-pin connector for power supply connection
9. Fuses
10.
ON/OFF switch
11. Expansion slot 2
12. Expansion slot 1

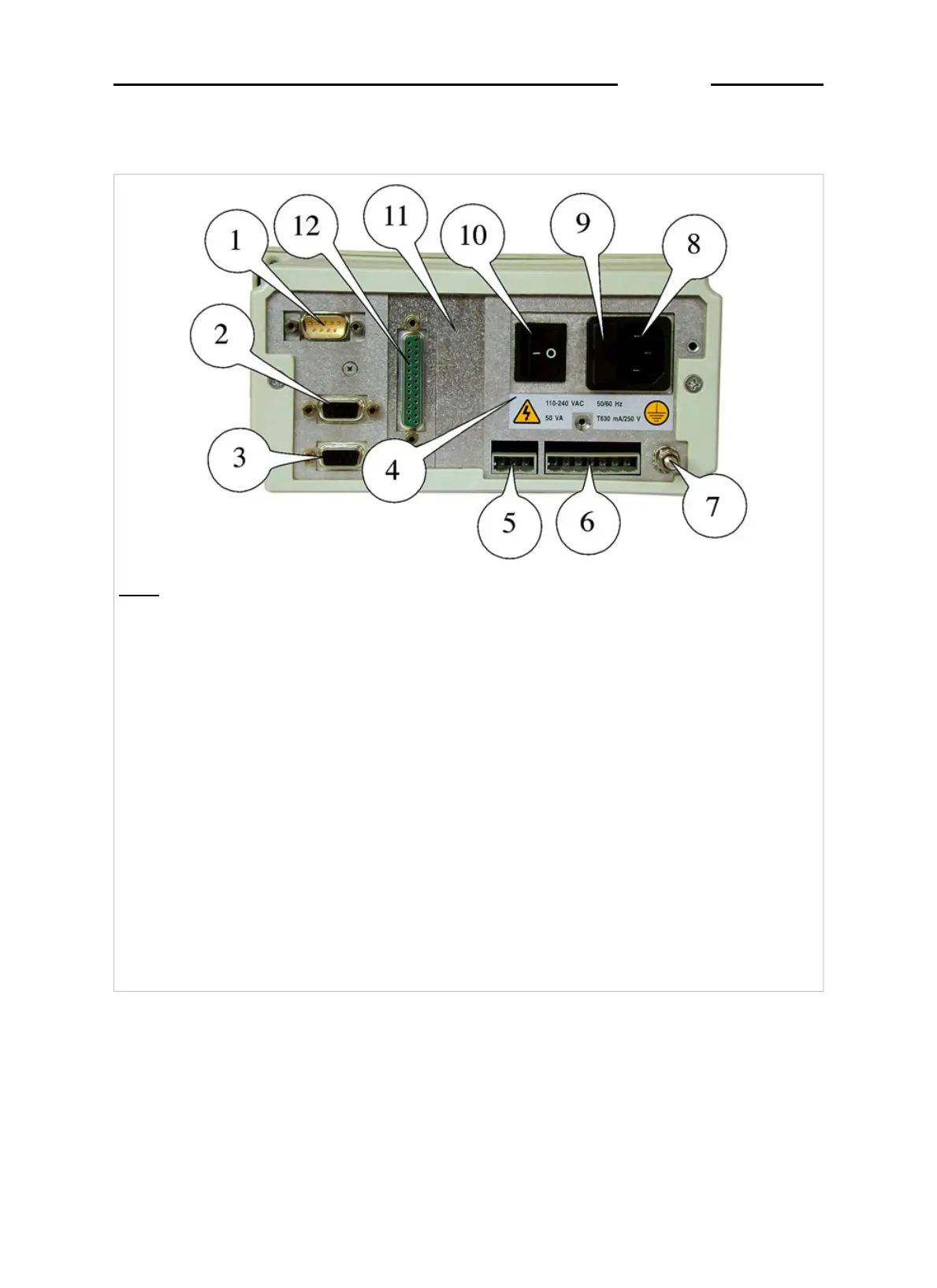

Figure 3.1 - Rear of terminal (log0103.jpg)
D410
1-17
