3.2.1 Equipotentiality between the terminal and the platform
scale
Check that a condition of equipotentiality exists between the metal parts
of the terminal and the platform scale.
If in doubt, connect the terminal and the scale using a earth wire of at
least 6mm² using the earth screw on the rear of the terminal (see point 7
Figure 3.1 on page 1-17 ).
The cables required for this connection are to be provided by the
customer.
3.2.2 Connection of analogue load cells

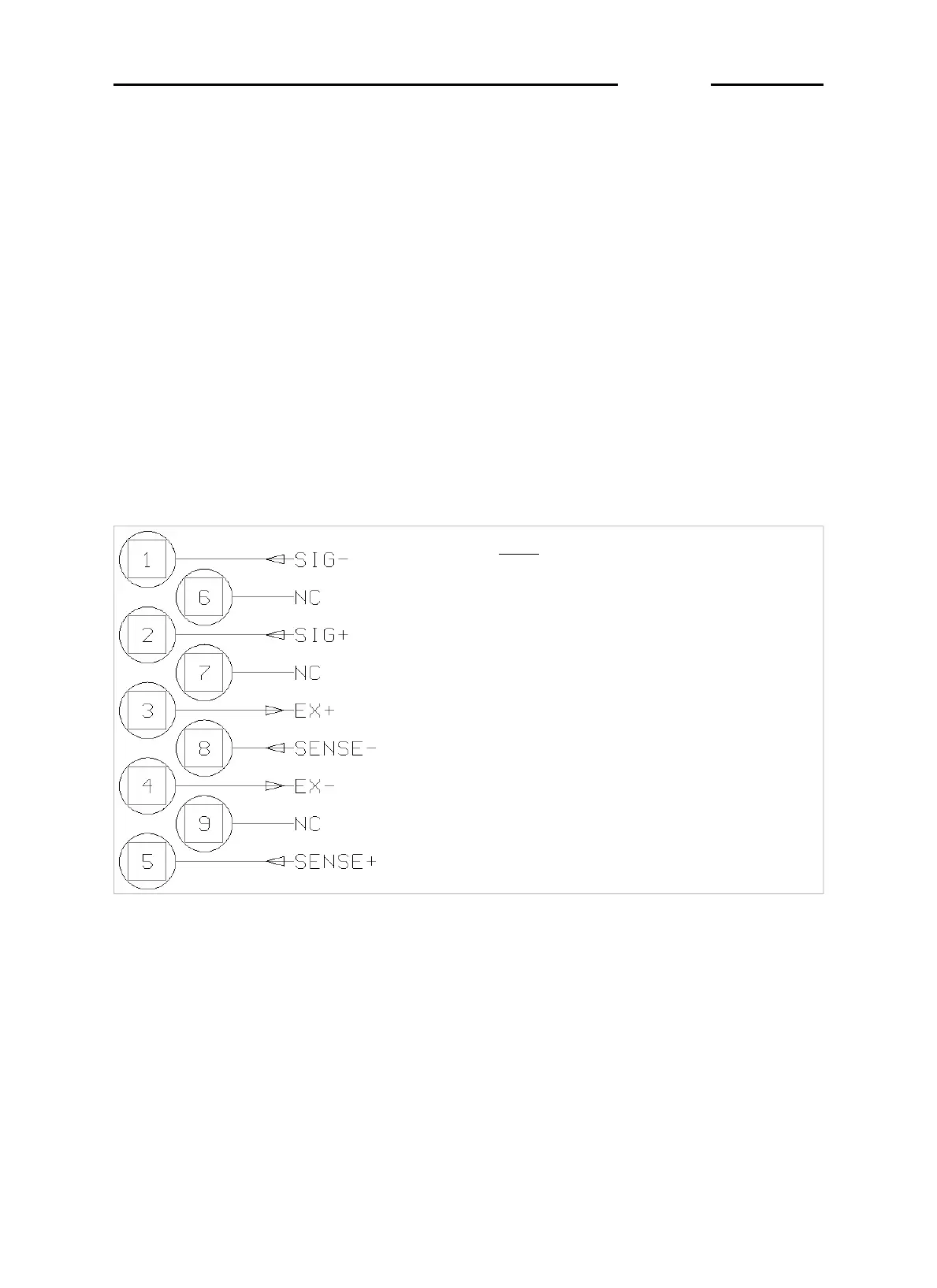

The diagram below shows the pinout for the JBIL connector for
connection to scales with analogue load cells.
Key
NC = Reserved - do not connect
SIG + = Signal +
SIG - = Signal -
EX + = Excitation +
EX - = Excitation -
SENSE + = SENSE signal +
SENSE - = SENSE signal -
Figure 3.2 - Pinout for the JBIL connector for connection to scales
with analogue load cells (log0001.gif)
D410
1-20
