6.1 4 I/O board
Key
Pi = Part inside terminal
Pe = Part outside terminal

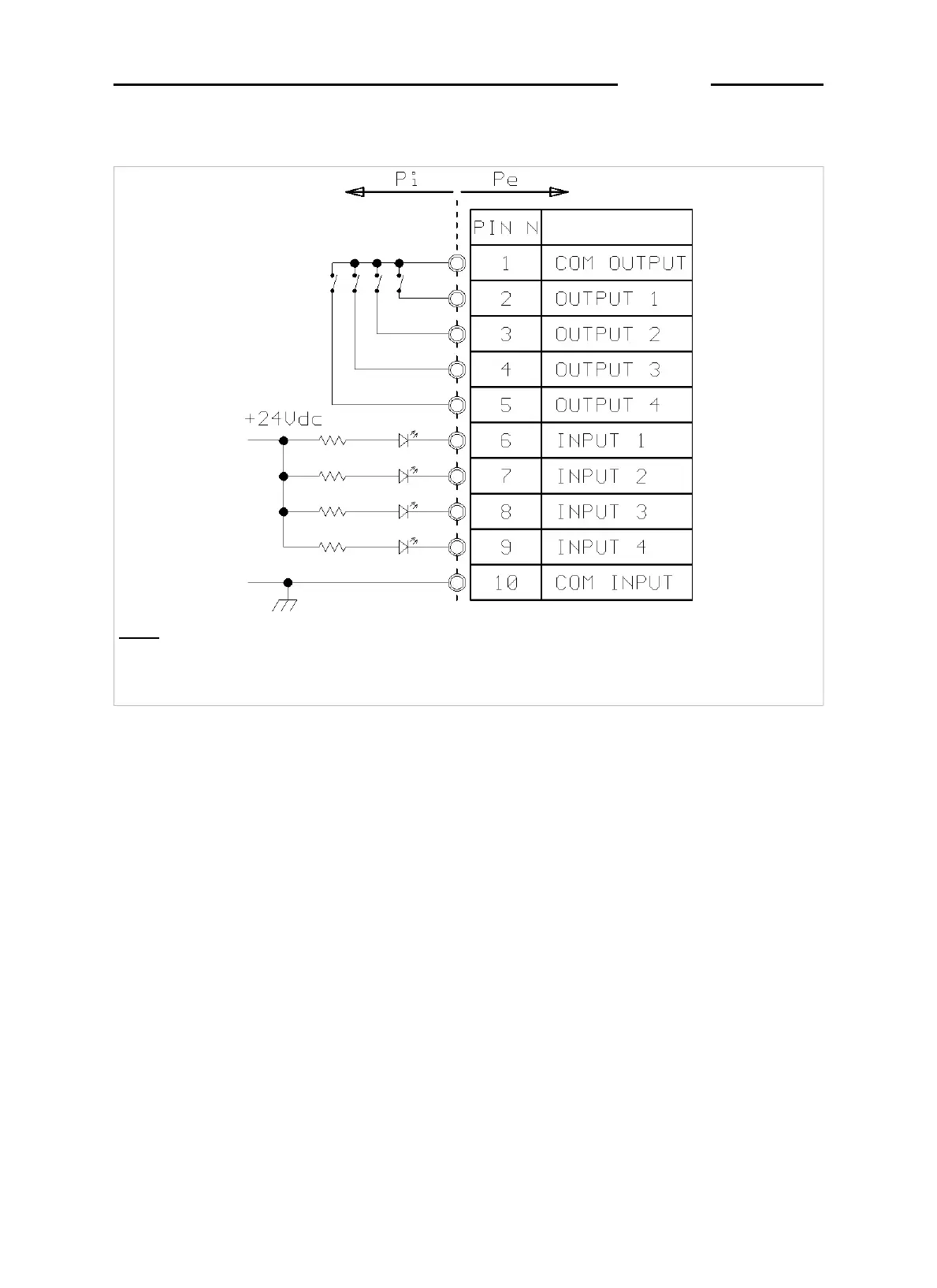

Figure 6.2 - Connection diagram for optional 4 INPUT - 4 OUTPUT
board (log0009.gif)
The figure shows the connection terminals of the 4 I/O board.
For specific information on connection refer to par. 3.6 on page 1-27 .
