Bilancial D410 - Page 64

Key
CU1,2,4,8 = BCD units (Binary
Coded Decimal)
CDEC1,2,4,8 = BCD Tens
CC1,2,4,8 = BCD Hundreds
CAM1,2,4 = BCD Thousands
NEG = (OUTPUT) negative that
assumes the value "0" (zero) if
the weight is negative
CALC0,1,2,3,4,5 = Address pins
for scale numbers 1 to 64
CDVALID = (OUTPUT) can
assume the following values:
0: The data will be valid after 10
ms
1: The data will remain valid for
at least 10 ms
NC = Reserved - do not connect
DGND = Signal reference
common

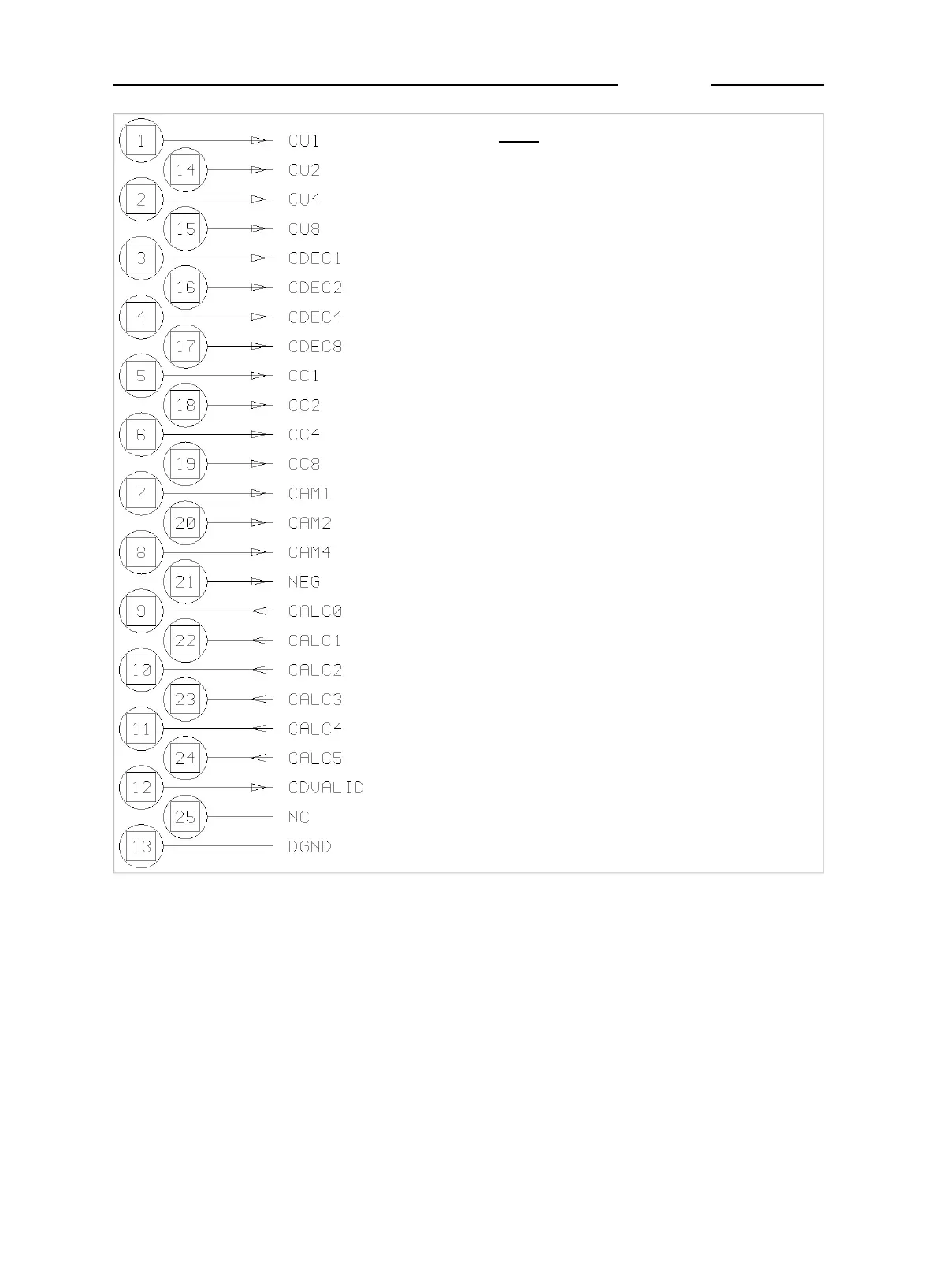

Figure 6.4 - Calculator BCD output connector (log0061.gif)
D410
1-64
