6.7 12-24Vac-dc input power supplier
The terminal can be powered with a very low safety voltage rating.
Ask for installation of the power supplier box with 12-24Vac-dc input.
Use the supplied 2-pin connector to connect to the power source.
Use a cable with two 1-2mm² section conductors.
Key
1.
ON/OFF switch
2.
T4A250V fuses
3. Input connector on panel

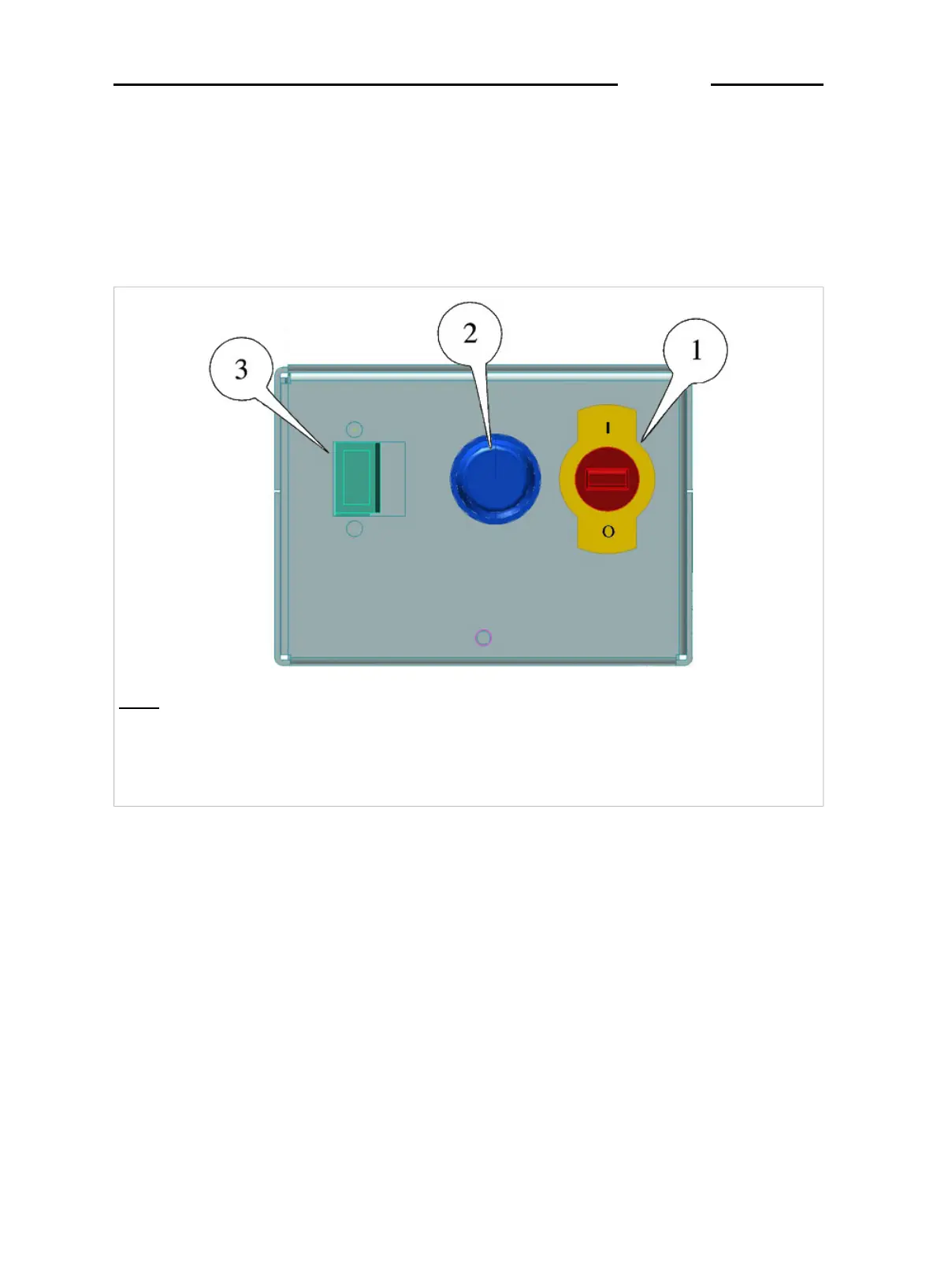

Figure 6.11 Connection to the power source with very low safety
voltage rating (citi0201.jpg)
