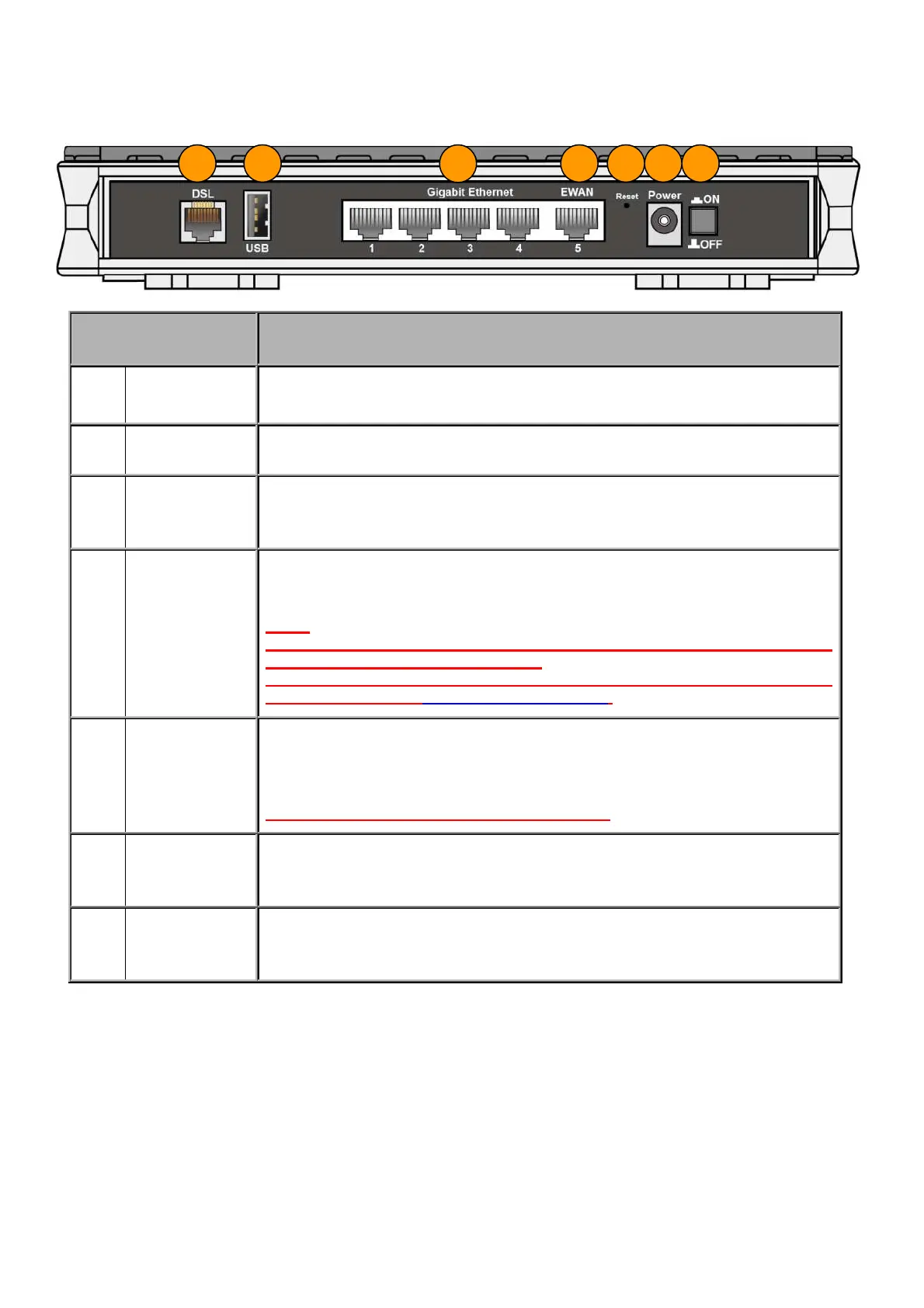

The Rear Ports
Port Meaning
1
ON/OFF
Power ON/ OFF switch.
2
Power Jack
Connect the supplied power adapter to this jack.
3 Reset
Push and hold the reset button for five (5) seconds to restore to its factory
default settings (this is used when you cannot login to the router, e.g.
forgot your password)
4
EWAN
(Gb EWAN)
Connect to Fiber/ Cable/ xDSL Modem with a RJ-45 cable, for broadband
connectivity.
Note:
1). LAN 5 automatically becomes an EWAN port when EWAN internet
interface is being selected in the GUI.
2). If you need port 5 to be used as a LAN port again, please remove the
EWAN interface, See EWAN Interface Removal.
5
Gb Ethernet
(1-5)
Connect PCs, Laptops or any other office/home LAN devices with the
supplied RJ-45 Ethernet cable (Cat-5 or Cat-5e) to any of the five LAN
ports.
Note: Port 5 is a LAN / WAN Configurable Port.
6 USB
Connect with a 3G or 4G/LTE USB adaptor/ dongle or hard driver for
mobile connectivity.
7 DSL
Connect the device to an ADSL/VDSL telephone jack or splitter using a
RJ-11 telephone cable.
To Next Page
