34
Summary

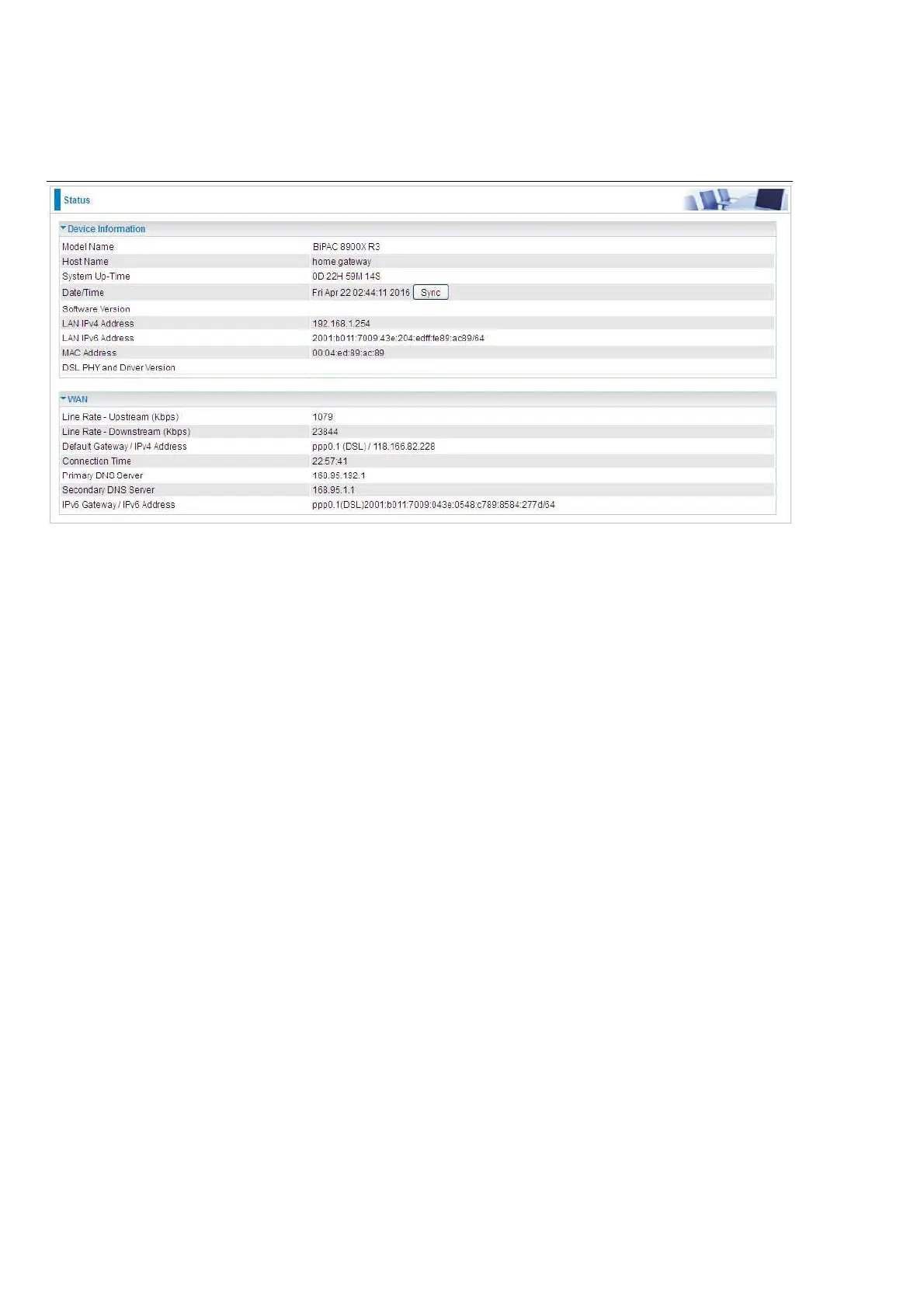

The basic information about the device is provided here (the following is a configured
screenshots to let users understand clearly).
Device Information
Model Name: Displays the model name.
Host Name: Displays the name of the router.
System Up-Time: Displays the elapsed time since the device is on.
Date/Time: Displays the current exact date and time. Sync button is to synchronize the
Date/Time with your PC time without regard to connecting to internet or not.
Software Version: Firmware version.
LAN IPv4 Address: Displays the LAN IPv4 address.
LAN IPv6 Address: Displays the LAN IPv6 address. Default is a Link-Local address, but
when connects to ISP, it will display the Global Address, like above figure.
MAC Address: Displays the MAC address.
DSL PHY and Driver Version: Display DSL PHY and Driver version.
WAN
Line Rate – Upstream (Kbps): Display Upstream line Rate in Kbps.
Line Rate – Downstream (Kbps): Display Downstream line Rate in Kbps.
Default Gateway/IP4 Address: Display Default Gateway and the IPv4 address.
Connection Time: Display the elapsed time since ADSL connection is up.
Primary DNS Server: Display IPV4 address of Primary DNS Server.
Secondary DNS Server: Display IPV4 address of Secondary DNS Server.
Default IPv6 Gateway/IPv6 Address: Display the IPv6 Gateway and the obtained IPv6
address.
