Click Add to create IPSec connections.

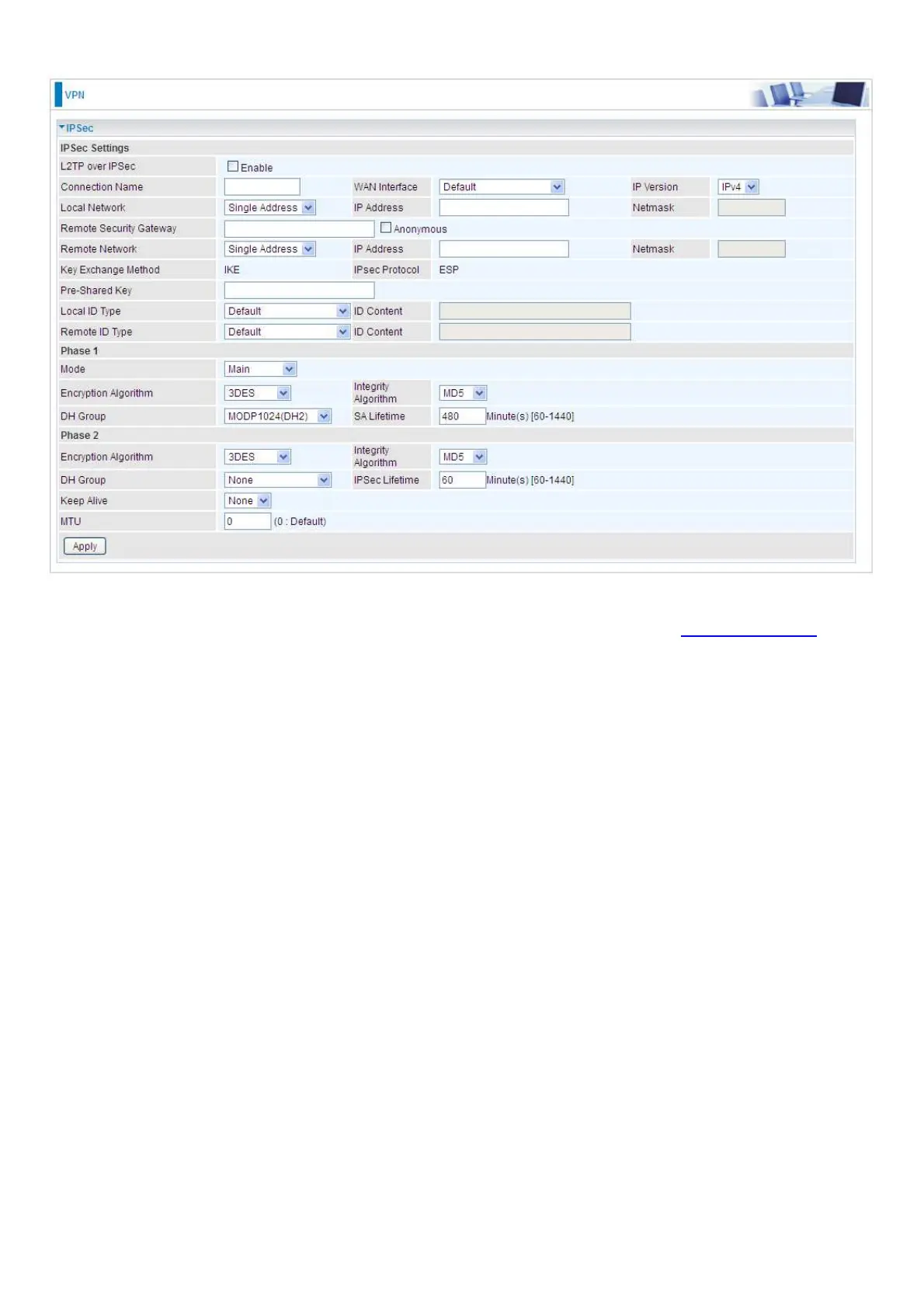

IPSec Settings
L2TP over IPSec: Select Enable if user wants to use L2TP over IPSec. See L2TPover IPSec
Connection Name: A given name for the connection, but it should contain no spaces (e.g.
“connection-to-office”).
WAN Interface: Select the set used interface for the IPSec connection, when you select adsl
pppoe_0_0_35/ppp0.1 interface, the IPSec tunnel would transmit data via this interface to connect to
the remote peer.
IP Version: Select the IP version base on your network framework.
Local Network: Set the IP address or subnet of the local network.
Single Address: The IP address of the local host, for establishing an IPSec
connection between a security gateway and a host (network-to-host).
Subnet: The subnet of the local network, for establishing an IPSec tunnel between
a
pair of security gateways (network-to-network)
IP Address: The local network address.
Netmask: The local network netmask.
Remote Security Gateway: The IP address of the remote VPN device that is connected and
establishes a VPN tunnel.
Anonymous: Enable any IP to connect in.
Remote Network: Set the IP address or subnet of the remote network.
Single Address: The IP address of the local host, for establishing an IPSec
connection between a security gateway and a host (network-to-host). If the remote
peer is a host, select Single Address.
Subnet: The subnet of the local network, for establishing an IPSec tunnel between
a
pair of security gateways (network-to-network), If the remote peer is a network, select
Subnet.
