BD / ED / FD (E2) 11/2010 page 23/54
2. Press
button

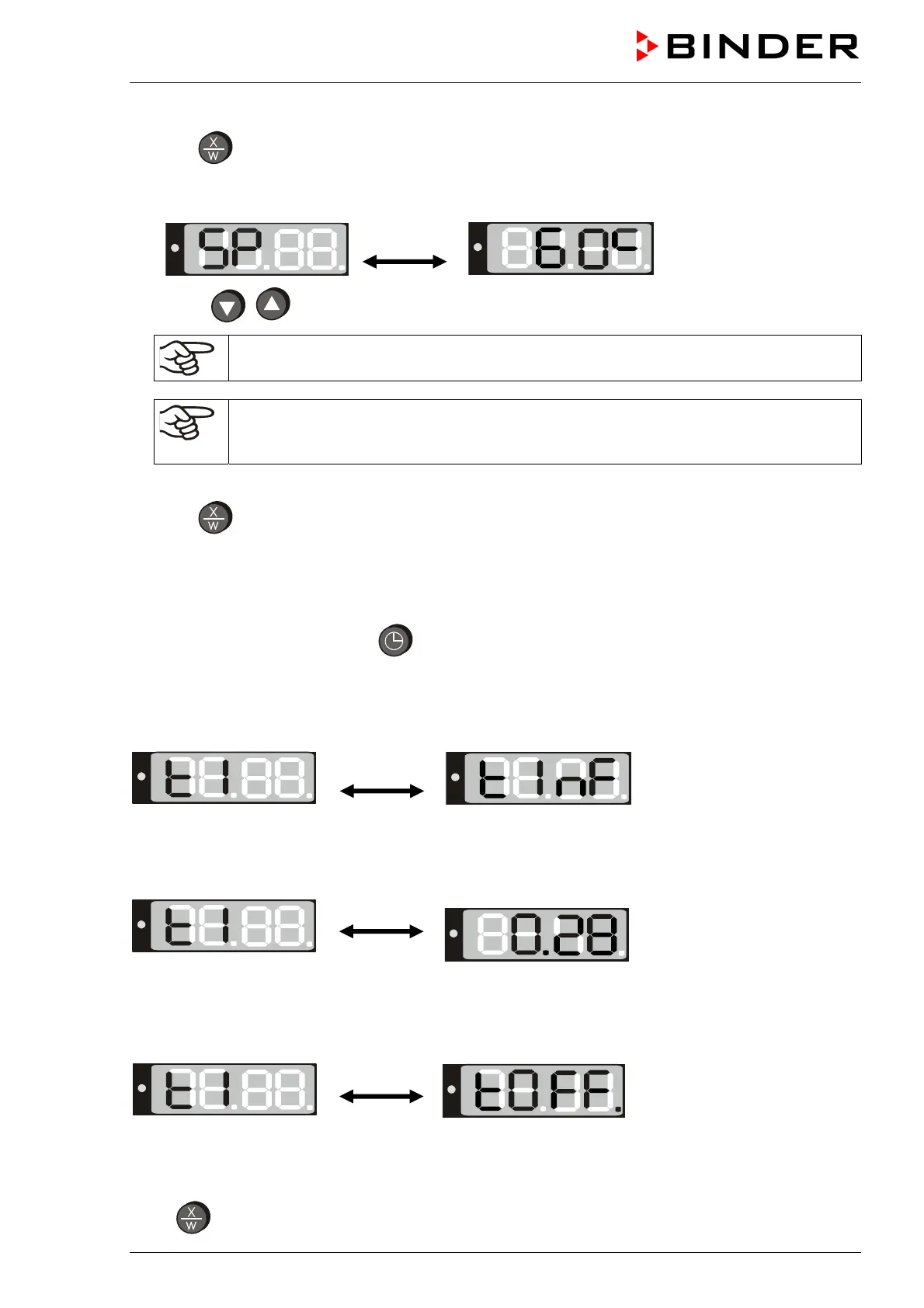

The display shows alternately “SP” and in the entry level the previous temperature set-point
(example: 60 °C):
3. With the
buttons enter a set-point value between 0 and 300.
The desired temperature set-point can be selected in a temperature range from 5 °C / 9 °F
above room temperature up to 100 °C / 212 °F (BD) or 300 °C / 572 °F (ED/FD).
If you want to frequently operate heating ovens ED and FD at low set-points up to 70 °C /
158 °F, the controller parameters can be optimized accordingly. Please contact BINDER
Service to obtain detailed instructions how to change the parameters.
4. Wait 2 seconds until the entered temperature value is taken over (display flashing once).
5. Press
button to return to normal display / actual value display (automatically after 60 seconds).
6.3 Time functions: Continuous operation and Timer operation
Press the time management button .
The timer indicates its current time function. There are two possible time functions:
Continuous operation
The display shows alternately “t1” (time function) and the time function “Continuous operation” “t inf”:
The heating and fan (with FD) are permanently active, independent of the timer setting.
Timer operation
The display shows alternately “t1” (time function) and the running-down time or “tOff”:
or
Remaining time (example: 28 Min.) – Timer running
down
Heating and fan (with FD) are active until the timer has
run-down.
Timer not programmed or run-down “t off”
If the timer has run-down, heating and fan (with FD) are
permanently off.
Press
button to return to normal display (actual value display) (automatically after 60 seconds).
