BD / ED / FD (E2) 11/2010 page 40/54
Fault description Possible cause Required measures
Temperature (continued)
No power supply. Check connection to power supply.
Unit fuse has responded. Check unit fuse and replace it if
appropriate. If it responds again,
contact BINDER service.
Unit without any function.
Controller defective. Contact BINDER service.
Deviations from the indicated
heating-up times.
Oven fully loaded. Charge the oven less or consider
longer heating-up times.
Controller
Message „1999” in the controller
display
Sensor rupture between
sensor and controller.
Contact BINDER service.
The controller returns to Normal
Display from any level.
No button was hit for more
than 60 sec.
Repeat entries, enter the values
rapidly.
Only qualified service personnel authorized by BINDER must perform repair.
Repaired units must comply with the BINDER quality standards.
12. Technical description
12.1 Factory calibration and adjustment
This unit was calibrated and adjusted in the factory. Calibration and adjustment were performed using
standardized test instructions, according to the QM DIN EN ISO 9001 system applied by BINDER
(certified since December 1996 by TÜV CERT). All test equipment used is subject to the administration of
measurement and test equipment that is also constituent part of the BINDER QM DIN EN ISO 9001
systems. They are controlled and calibrated to a DKD-Standard at regular intervals.
12.2 Definition of usable volume
The usable volume illustrated below is calculated as follows:
b
c
c
a
b
a
C
B
A
A, B, C = Internal dimensions (W, H, D)
a, b, c = Wall clearances
a = 0.1 x A
b = 0.1x B
c = 0.1 x C
V
USE
= (A - 2a) x (B - 2b) x (C - 2c)

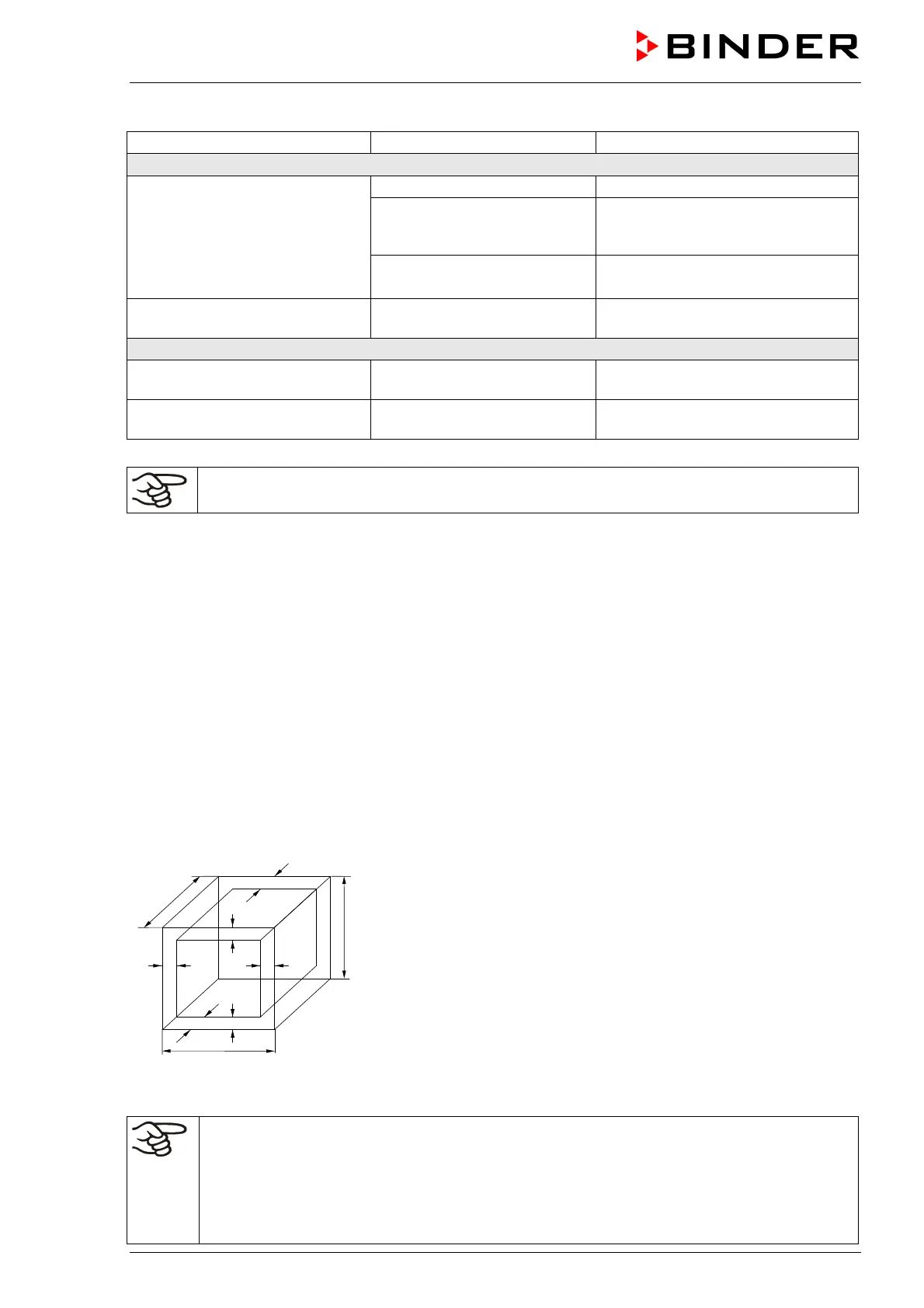

Figure 10: Determination of the useable volume
The technical data refers to the defined usable volume.
Do NOT place samples outside this usable volume.
Do NOT load this volume by more than half to enable sufficient airflow inside the chamber.
Do NOT divide the usable volume into separate parts with large area samples.
Do NOT place samples too close to each other in order to permit circulation between them
and thus obtain a homogenous distribution of temperature.
