MKF / MKFT (E5) 04/2022 page 123/176
The connection “analog outputs for temperature” is realized as a DIN socket (9) in the lateral control panel
as follows:
ANALOG OUTPUT TEMPERATURE 4-20 mA DC
PIN 1: Temperature actual value –
PIN 2: Temperature actual value +
PIN 4: Temperature set-point value –
PIN 5: Temperature set-point value +
MKF: Temperature range: -40 °C / -40 °F up to +180 °C / -356 °F
MKFT: Temperature range: -70 °C / -94 °F up to +180 °C / -356 °F
A suitable DIN plug is enclosed.

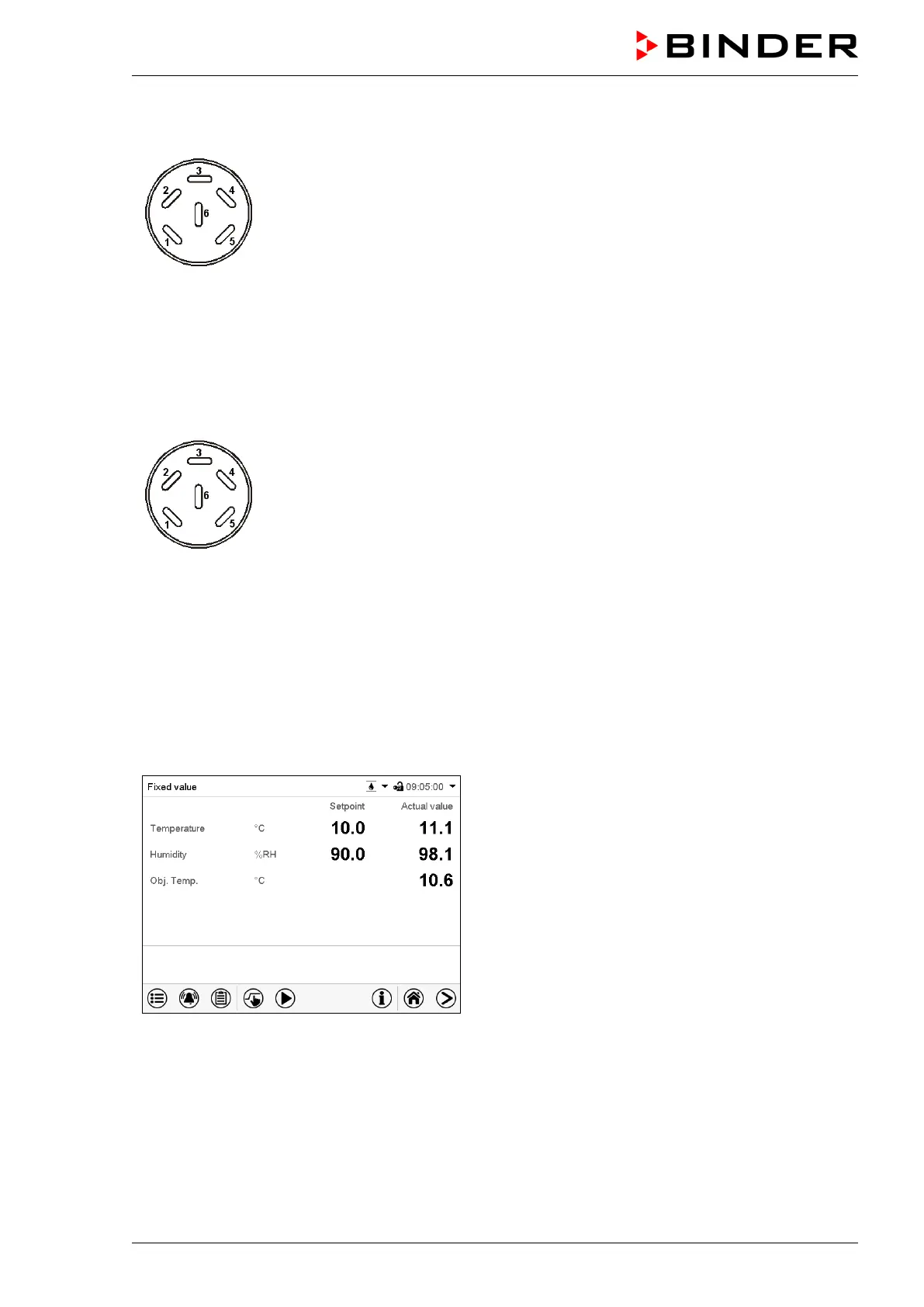

Figure 21: Pin allocation of DIN socket (9) for option analog outputs for temperature
The connection “analog outputs for humidity” is carried out as a DIN socket (10) in the lateral control panel
as following:
ANALOG OUTPUT HUMIDITY 4-20 mA DC
PIN 1: Humidity actual value –
PIN 2: Humidity actual value +
PIN 4: Humidity set-point value –
PIN 5: Humidity set-point value +
Humidity range: 0 % r.h. up to 100 % r.h.
A suitable DIN plug is enclosed.
Figure 22: Pin allocation of DIN socket (10) for option analog outputs for humidity
21.4 Object temperature display with flexible Pt 100 temperature sensor (option)
The object temperature display enables the determination of the actual temperature of the charging material
during the whole process. The object temperature is measured via a flexible Pt100 temperature sensor and
can be viewed on the controller display. You can immerse the sensor top protective tube of the flexible Pt
100 into liquid substances.
Normal display with object temperature display
(sample values)
The object temperature data are put out together with the data of the temperature controller to the interface
as second measuring channel and can be documented by the APT-COM™ 4 Multi Management Software
(option, chap. 21.1) developed by BINDER.
Technical data of the Pt 100 sensor:
• Three-wire technique
• Class B (DIN EN 60751)
• Temperature range up to 320 °C / 608°F
• Stainless steel protective tube with a length of 45 mm / 1.78 in, material no. 1.4501
