2.1 Chamber overview
MKF 56 MKF 240

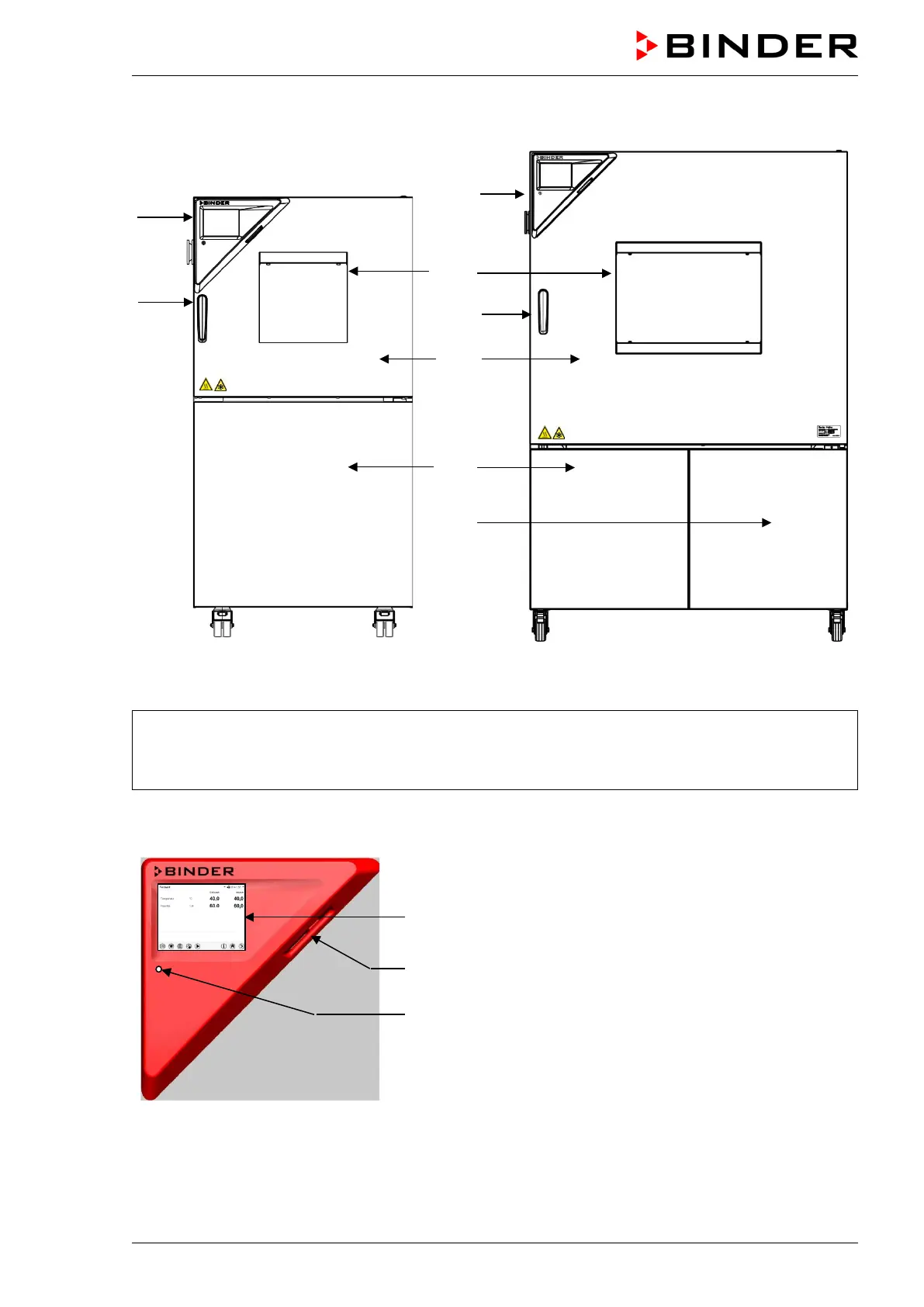

Figure 3: Alternating climate chambers MKF / MKFT
(A) Instrument panel
(B) Door handle
(C) Window
(D) Door
(E) Refrigeration / humidity module
(F)
Access to fill the water can
2.2 Instrument panel
5,7" controller display with touchscreen
USB interface
Pilot lamp
Figure 4: Instrument panel with MB2 program controller and USB interface
(A)
(C)
(B)
(D)
(E)
(F)
(A)
(B)
